SEAT MOTOR & SEAT HEATER

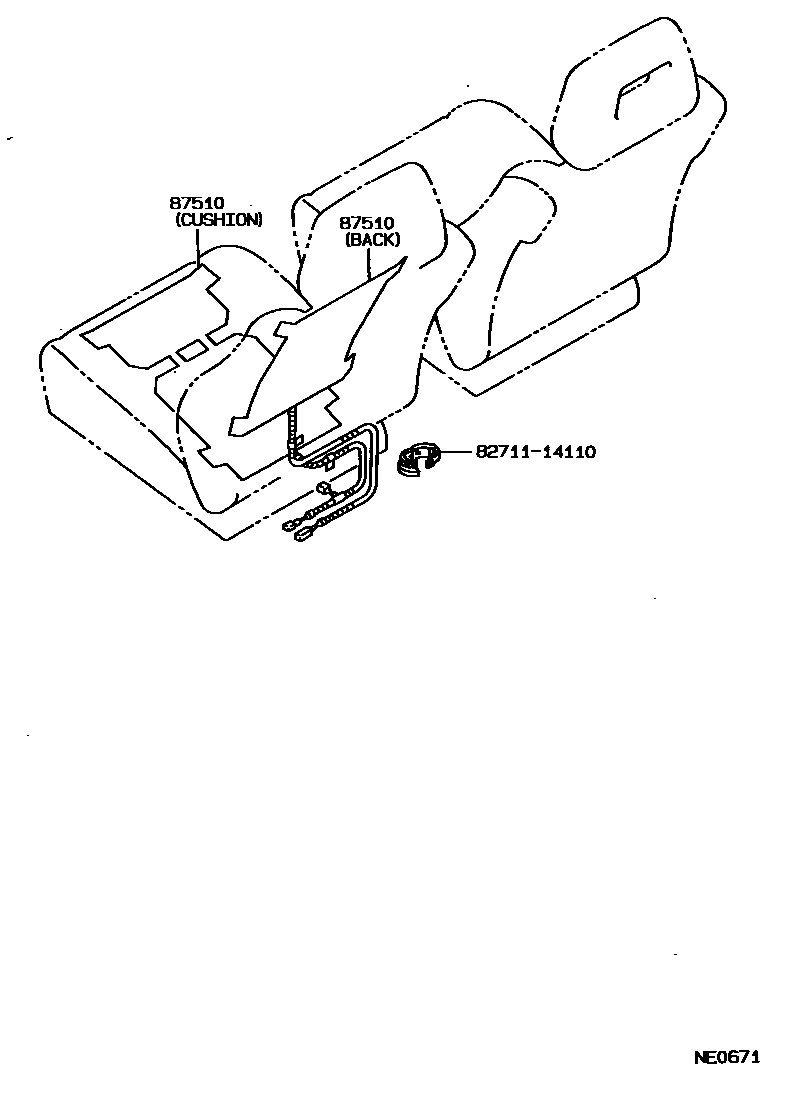

Parts diagram

87510HEATER ASSY, SEAT

main87510-20170i198712-198911

CUSHION

main87510-20180i198712-198911

BACK

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

2 parts on this diagram · 1 diagram in section
