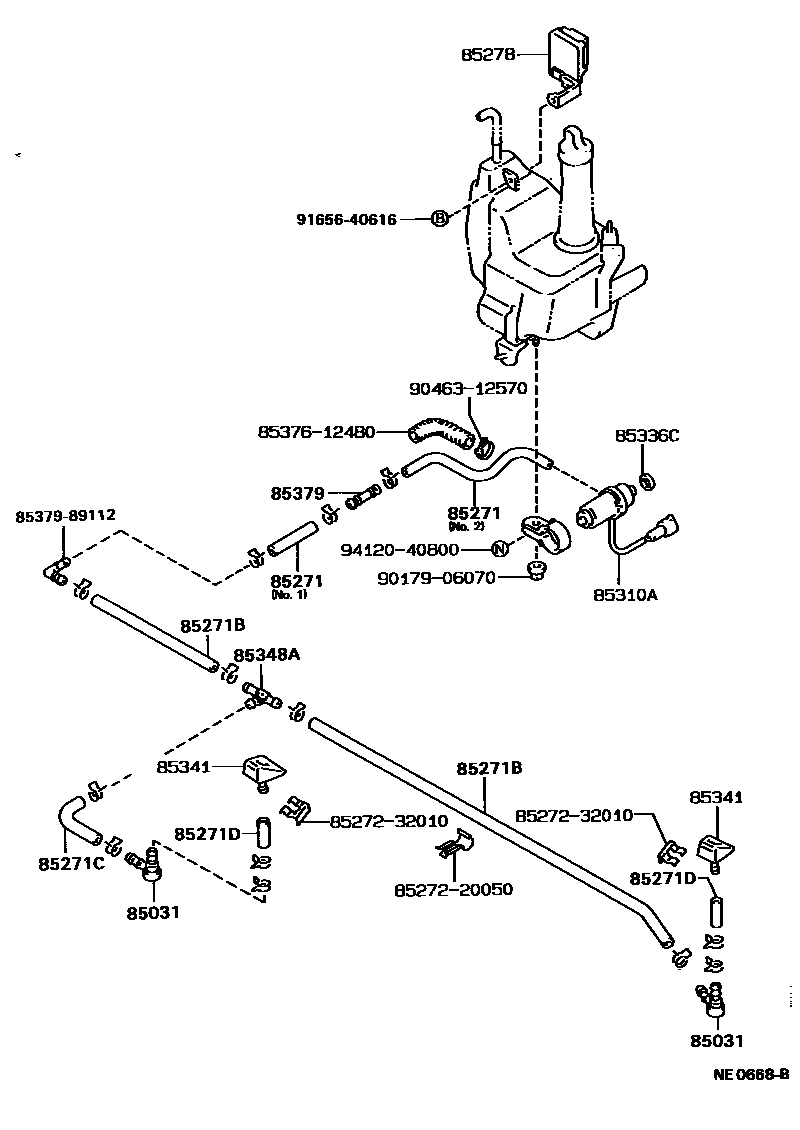

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iAT171,CT170,ST171198803-199211

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-20030iAT171..GL..EFI198911-199203

L=90,W(*66)

main85375-12480iAT171..WG;AT171..(LB,SED)..XL;AT171,CT170,ST171..DSL,EFI198712-198803

NO.2

main85375-20190iST171..LHD..LB;AT171..(LB,WG)..XL..EFI;AT171,CT170..LHD..(LB,WG)..(CBR,DSL)198911-199211

L=90

main85375-20190iST171..LHD..LB;AT171..(LB,WG)..XL..EFI;AT171,CT170..LHD..(LB,WG)..(CBR,DSL)198712-199011

L=90,NO.1

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-22061iAT171,CT170,ST171198803-199211

L=640

main90445-14072iAT171,CT170,ST171198803-199211

L=1320

85271CHOSE, HEADLAMP CLEANER, NO.4

main85343-95700iAT171,CT170,ST171198803-199211

L=135

85271DHOSE, HEADLAMP CLEANER, NO.5

main85375-16020iAT171,CT170,ST171198803-199211

L=40

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-20050iAT171..(LB,SED)..GL198712-199211

main85276-20060iAT171..(LB,SED)..GL..CBR198712-199203

W(*66)

main85276-22070iAT171..GL..EFI198911-199203

W(*66)

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-12190iAT171,CT170,ST171198712-199211

sub85310-95J02

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iAT171,CT170,ST171198712-199211

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-20120iAT171,CT170,ST171198712-199211

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iAT171,CT170,ST171198803-199211

85379JOINT

main85379-89131iAT171..(LB,SED)..GL..CBR198712-198911

8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20050

8527232010CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-32010

8537612480PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12480

8537989112JOINT

main85379-89112

9017906070

main90179-06070

9046312570

main90463-12570

9165640616

main91656-40616

9412040800

main94120-40800

19 parts on this diagram · 1 diagram in section
