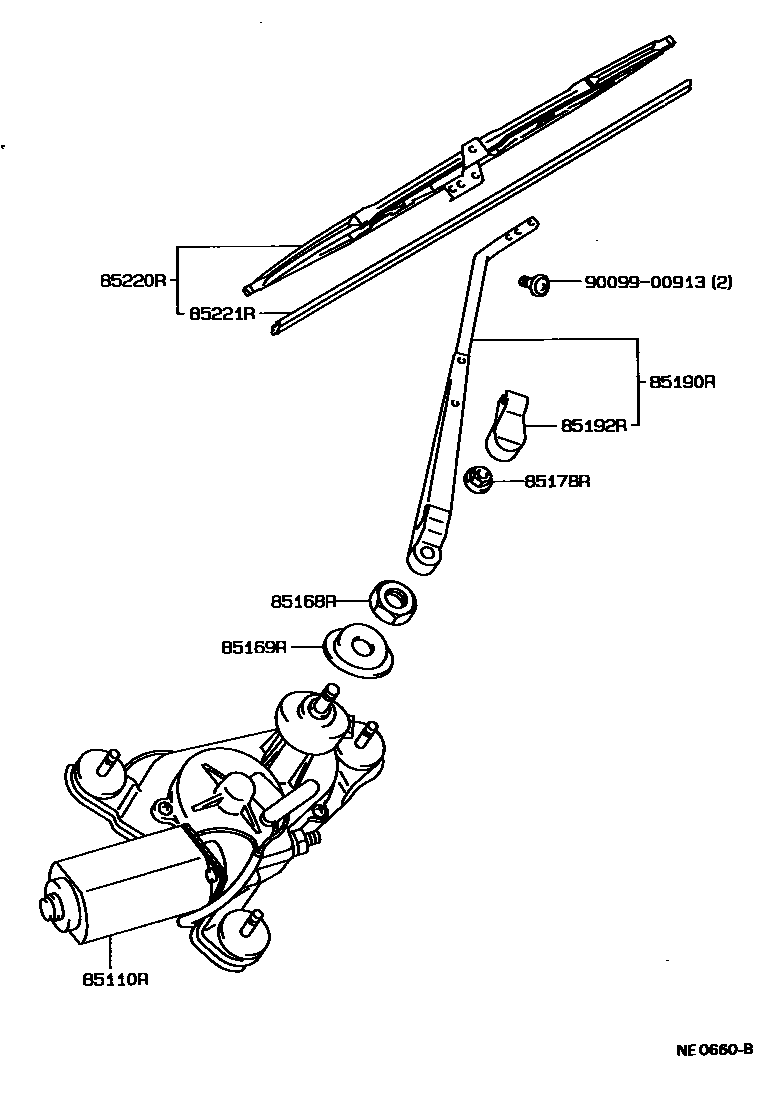

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85110-20550iAT171,CT170,ST171..LB198712-199203

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iAT171,CT170,ST171..WG198712-199211

main90099-05157iAT171,CT170,ST171..LB198712-199203

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-20550iAT171,CT170,ST171..LB198712-199203

main90099-01458iAT171,CT170,ST171..WG198712-199211

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAT171,CT170,ST171..LB,WG198712-199211

85190RARM ASSY, REAR WIPER

main85190-20670iAT171,CT170,ST171..LB198712-199203

sub85190-20671

main85190-95502iAT171,CT170,ST171..WG198712-199211

sub85190-95503

85192RCOVER, REAR WIPER ARM

main85192-13060iAT171,CT170,ST171..WG198712-199211

main85192-32010iAT171,CT170,ST171..LB198712-199203

85220RBLADE ASSY, REAR WIPER

main85220-16440iAT171,CT170,ST171..LB198712-199003

sub85220-16441

main85220-16441iCT170..LB..GL;CT170..LHD..LB;AT171,ST171..LB199003-199203

main85220-22610iAT171,CT170,ST171..WG198712-199008

sub85220-22611

main85220-22611iAT171,CT170..WG199008-199211

85221RBLADE, REAR WIPER

main85221-16080iAT171,CT170,ST171..LB198712-199203

main85221-87002iAT171,CT170,ST171..WG198810-199211

sub85214-12H90

main85221-87003iAT171,CT170,ST171..WG..XL198712-198810

sub85221-87002

9009900913

main90099-00913

9 parts on this diagram · 2 diagrams in section
