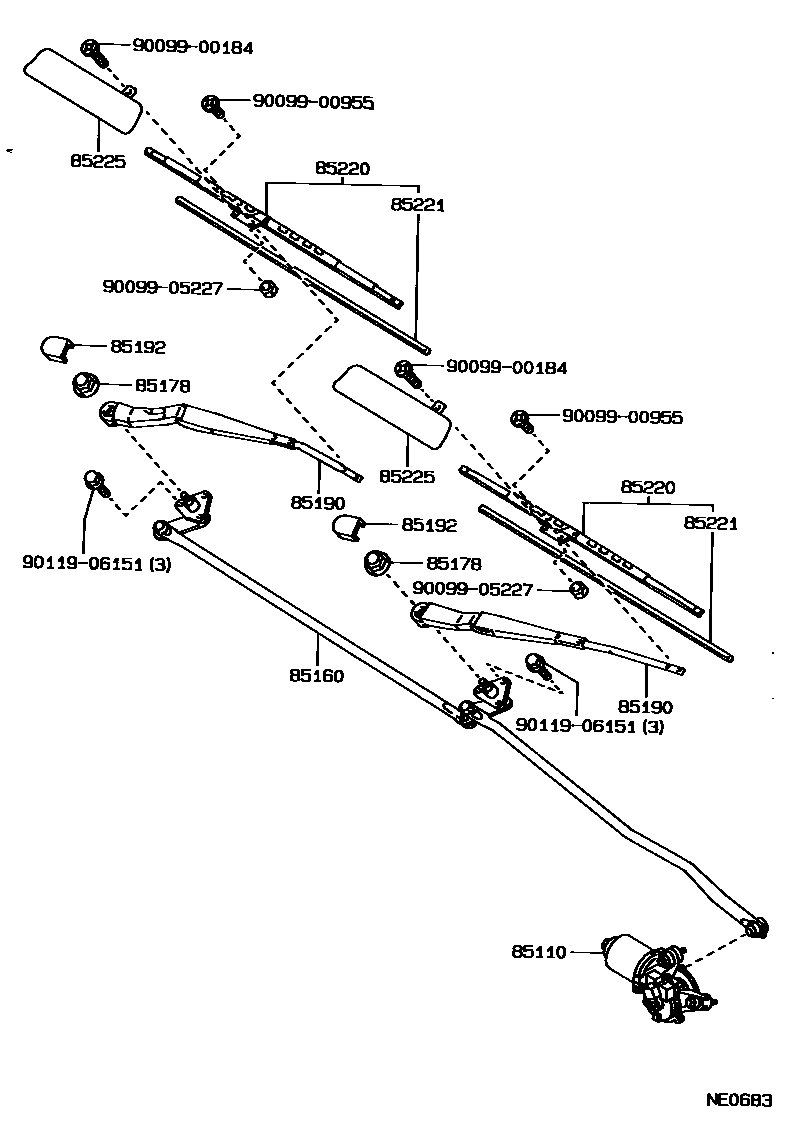

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20500iCT170..RHD198712-199101

sub85110-20510

main85110-20501iCT170..RHD199101-199211

sub85110-20511

main85110-20510iAT171,ST171..RHD198712-199101

main85110-20511iAT171,ST171..RHD199101-199211

main85110-20530iCT170..LHD198712-199101

sub85110-20540

main85110-20531iCT170..LHD199101-199211

sub85110-20541

main85110-20540iAT171,ST171..LHD198712-199101

main85110-20541iAT171,ST171..LHD199101-199211

85160LINK ASSY, WINDSHIELD WIPER

main85150-20640iCT170..RHD198911-199101

sub85150-20641

main85150-20641iCT170..RHD199101-199211

sub85150-20701

main85150-20700iAT171,ST171..RHD198911-199101

sub85150-20701

main85150-20701iAT171,ST171..RHD199101-199211

main85150-20710iCT170..LHD198911-199101

sub85150-20711

main85150-20711iCT170..LHD199101-199211

sub85150-20721

main85150-20720iAT171,ST171..LHD198911-199101

sub85150-20721

main85150-20721iAT171,ST171..LHD199101-199211

main85160-20350iCT170..RHD198712-198911

sub85150-20641

main85160-20370iAT171,ST171..RHD198712-198911

sub85150-20700

main85160-20380iCT170..LHD198712-198911

sub85150-20710

main85160-20390iAT171,ST171..LHD198712-198911

sub85150-20720

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iAT171,CT170,ST171198712-199211

85190ARM ASSY, WINDSHIELD WIPER

main85190-20620iCT170..RHD198712-198911

RH

sub85190-20621

main85190-20621iCT170..RHD198911-199211

RH

main85190-20630iAT171,ST171..RHD198712-198911

RH

sub85190-20631

main85190-20650iCT170..LHD198712-199211

LH

main85190-20660iAT171,ST171..LHD198712-198911

LH

main85210-20210iAT171,CT170,ST171..RHD198712-199211

LH

sub85210-20211

main85210-20211iCT170..RHD198911-199211

LH

main85210-20220iAT171,CT170,ST171..LHD198712-199211

RH

main85211-20280iAT171,ST171..RHD198911-199211

RH

main85211-20300iAT171,ST171..LHD199109-199211

RH

main85221-20260iAT171,ST171..LHD198911-199109

LH

main85221-20280iAT171,ST171..LHD199109-199211

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iAT171,CT170,ST171198712-199211

85220BLADE ASSY, WINDSHIELD WIPER

main85212-20290iAT171,ST171..RHD198911-199211

RH

sub85212-10110

main85220-16750iAT171,ST171..RHD198712-199211

LH

sub85220-1A121

main85220-16760iAT171,CT170,ST171..LHD198712-198810

RH

sub85220-16640

main85220-1A050iAT171..(LB,SED)..5F..EFI198810-199211

RH

sub85220-16640

main85220-1A121iCT170..RHD198911-199211

LH

sub85222-12700

main85220-32690iCT170..RHD198712-198911

RH

sub85220-3A211

main85220-32710iCT170..LHD198712-198810

LH

sub85220-32860

main85220-32730iAT171,ST171..RHD198712-198911

RH

sub85220-32731

main85220-32740iAT171,ST171..LHD198712-198911

LH

sub85220-32860

main85220-3A050iCT170..LHD198810-199211

LH

main85220-3A211iCT170..RHD198911-199211

RH

sub85212-12290

main85222-20290iST171..LB..4FC..G198911-199211

LH

85221BLADE, WINDSHIELD WIPER

main85213-17040iCT170..RHD199003-199211

RH

sub85213-12280

main85221-12200iCT170..RHD198911-199003

RH

sub85213-17040

main85221-12240iAT171,CT170,ST171..RHD198911-199003

LH

sub85223-12690

main85221-20130iAT171,CT170,ST171198712-198911

RH

sub85221-12200

main85221-20140iAT171,CT170,ST171198712-198911

LH

sub85221-12240

main85221-20230iAT171,ST171198911-199211

RH

sub85213-12280

main85221-20240iCT170..LHD198911-199211

LH

sub85213-17040

main85221-22220iAT171,ST171..LHD198911-199211

RH

sub85223-22700

main85221-22220iAT171,ST171..LHD198911-199211

LH

sub85223-22700

main85223-22700iAT171,CT170,ST171..RHD199003-199211

LH

sub85221-40040

85225WING, WIPER BLADE

main85225-20630iAT171,ST171..RHD198712-198911

main85225-20660iAT171,ST171..LHD198712-198911

9009900184

main90099-00184

9009900955

main90099-00955

9009905227

main90099-05227

9011906151

main90119-06151

12 parts on this diagram · 3 diagrams in section
