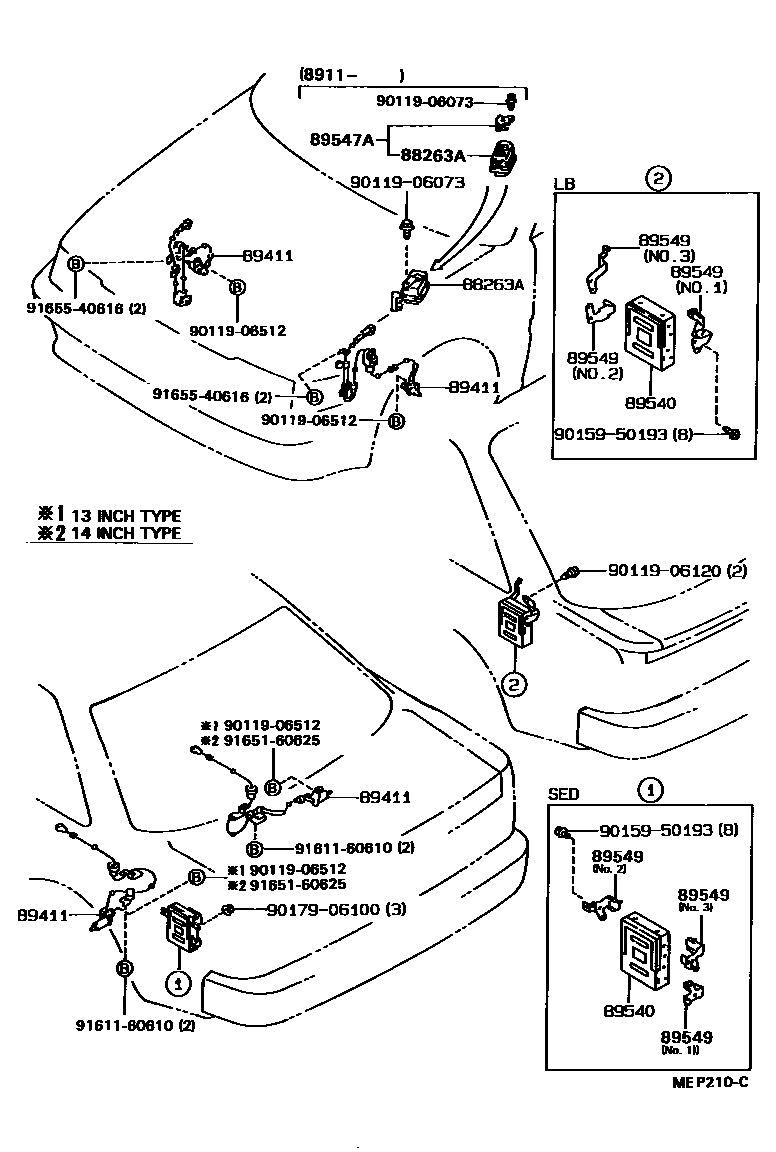

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-12070iAT171,ST171..(LB,SED)..GL198911-199203

sub88263-12080

main88263-20050iAT171,ST171..(LB,SED)..GL198712-198911

89411SENSOR, SPEED

main89542-20030iAT171,ST171..(LB,SED)..GL198712-198911

FRONT,RH

main89542-20050iAT171,ST171..(LB,SED)..GL198911-199203

FRONT,RH

main89543-20030iAT171,ST171..(LB,SED)..GL198712-198911

FRONT,LH

main89543-20050iAT171,ST171..(LB,SED)..GL198911-199203

FRONT,LH

main89545-20030iAT171..(LB,SED)..GL198712-198911

REAR,RH

main89545-20030iST171..GL198712-198911

13INCH TYRE,REAR,RH

main89545-20040iST171..GL198712-198911

14INCH TYRE,REAR,RH

main89545-20070iST171198911-199203

REAR,RH

main89545-20070iAT171..(LB,SED)..GL198911-199203

13INCH TYRE,REAR,RH

main89545-20080iST171198911-199203

14INCH TYRE,REAR,RH

main89546-20030iAT171..(LB,SED)..GL198712-198911

13INCH TYRE,REAR,LH

main89546-20030iAT171..(LB,SED)..GL198712-198911

REAR,LH

main89546-20040iST171..GL198712-198911

14INCH TYRE,REAR,LH

main89546-20070iAT171..(LB,SED)..GL198911-199203

13INCH TYRE,REAR,LH

main89546-20070iST171198911-199203

REAR,LH

main89546-20080iST171198911-199203

14INCH TYRE,REAR,LH

89540COMPUTER ASSY, SKID CONTROL

main89541-20030iAT171,ST171..(LB,SED)..GL198712-198808

main89541-20030iST171..GL198808-199203

14INCH TYRE

main89541-20040iST171..GL198808-199203

13INCH TYRE

89547ARELAY, SKID CONTROL W/BRACKET

main89547-20020iAT171,ST171..(LB,SED)..GL198911-199203

89549BRACKET, SKID CONTROL COMPUTER

main88267-20090iAT171,ST171..LB..GL198712-199203

NO.1

main88267-20110iAT171,ST171..SED..GL198712-199203

NO.1

main88268-20080iAT171,ST171..LB..GL198712-199203

NO.2

main88268-20090iAT171,ST171..SED..GL198712-199203

NO.2

main88269-20080iST171..LB;AT171..LB..GL..CBR198712-199203

NO.3

main88269-20090iAT171..LB..GL..EFI;AT171,ST171..SED..GL198712-199203

NO.3

9011906073

main90119-06073

9011906120

main90119-06120

9011906512

main90119-06512

9015950193

main90159-50193

9017906100

main90179-06100

9161160610

main91611-60610

9165160625

main91651-60625

9165540616

main91655-40616

13 parts on this diagram · 1 diagram in section
