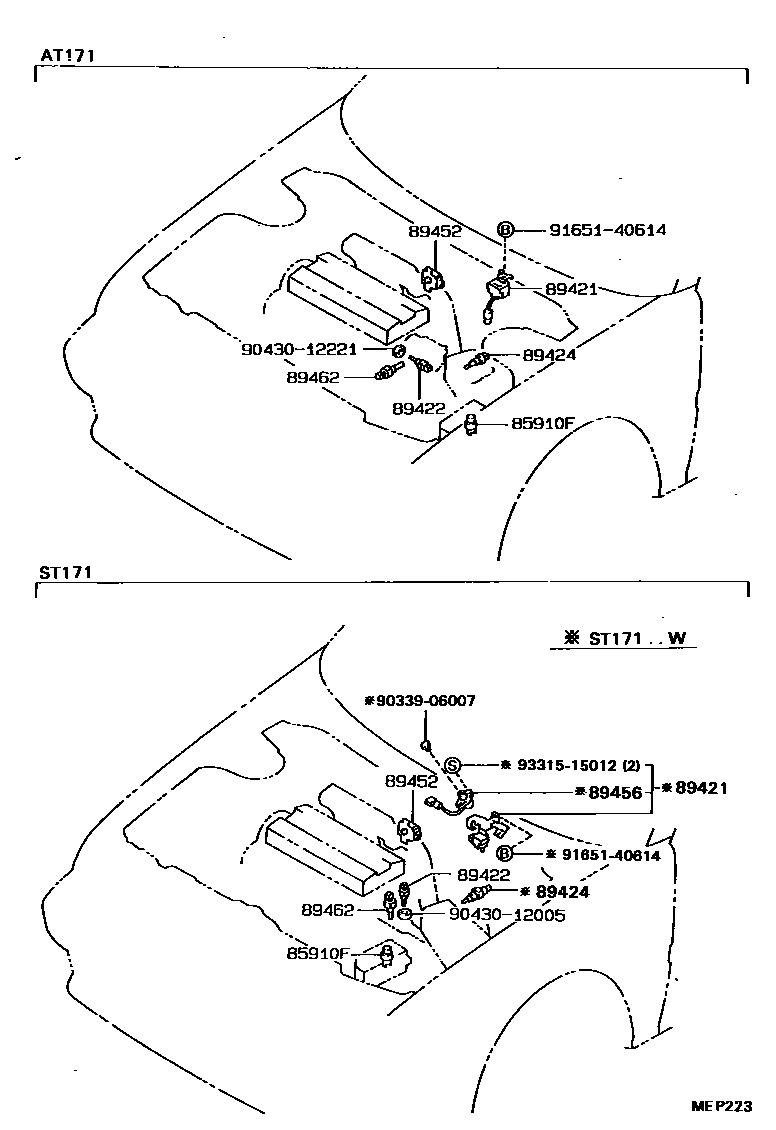

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iAT171,ST171..EFI198712-199211

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20080iAT171..EFI198712-198911

main89420-20090iST171..W198712-198911

main89420-20170iAT171..EFI198911-199211

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAT171,ST171..EFI198712-199211

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iST171..W;AT171..EFI198712-199211

main89424-28010iST171..W198712-198911

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAT171..5F..EFI198911-199211

W(LEAN BURN SYSTEM)

main89452-20100iAT171..EFI198712-198911

main89452-32020iST171198712-199211

89456RESISTOR, VARIABLE

main89456-20010iST171..W198712-199203

89462SWITCH, START INJECTOR TIME

main89462-20020iST171198712-199203

main89462-20030iAT171..EFI198712-199211

9033906007

main90339-06007

9043012005

main90430-12005

9043012221

main90430-12221

9165140614

main91651-40614

9331515012

main93315-15012

12 parts on this diagram · 2 diagrams in section
