INDICATOR

81850LAMP ASSY, INDICATOR

main81850-20190iAT171,CT170,ST171..GL198712-199211

IGNITION KEY LAMP

main81850-20220iCT170..WG;ST171..LB,WG;AT171..5F..EFI;AT171..LHD..CBR;ST171..LHD..SED;AT171..RHD..WG..XL;AT171,CT170..RHD..GL;CT170..LHD..(LB,SED)198712-199204

sub81850-20221

main81850-20300iAT171,CT170,ST171198911-199211

ASHTRAY LAMP

81850BBULB, INDICATOR LAMP

main90981-11014iAT171,CT170,ST171198712-199211

14V 1.4W

9016840063

main90168-40063

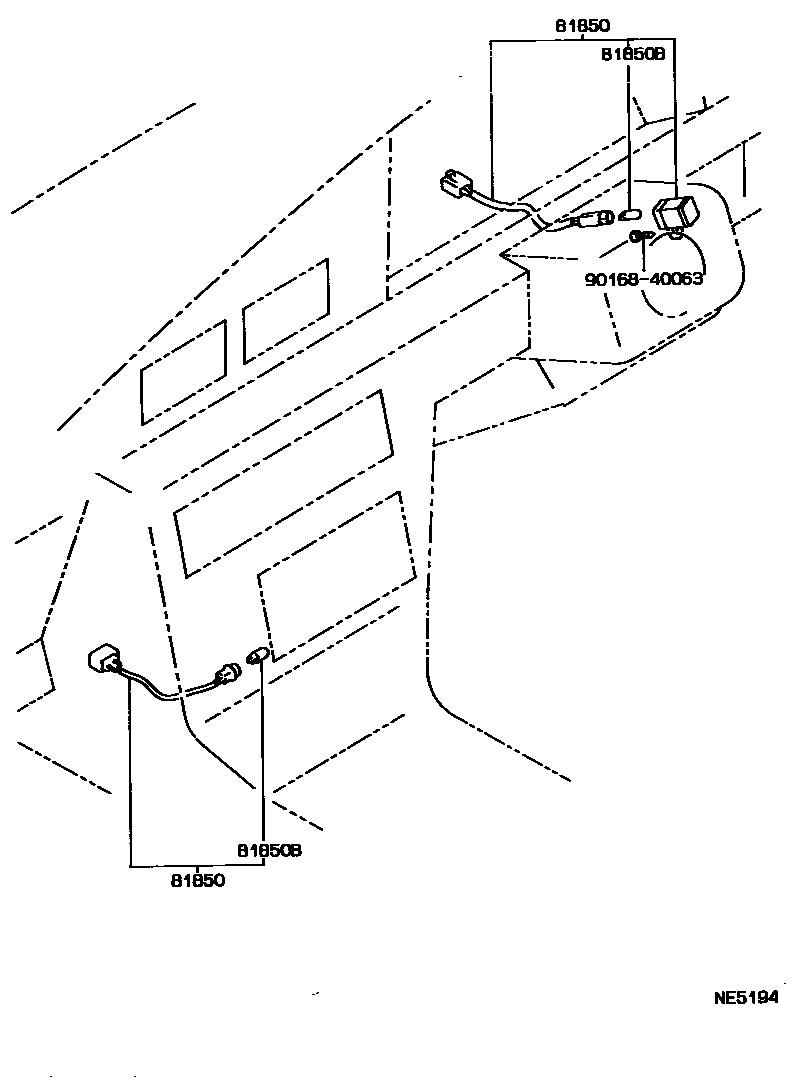

3 parts on this diagram · 1 diagram in section
