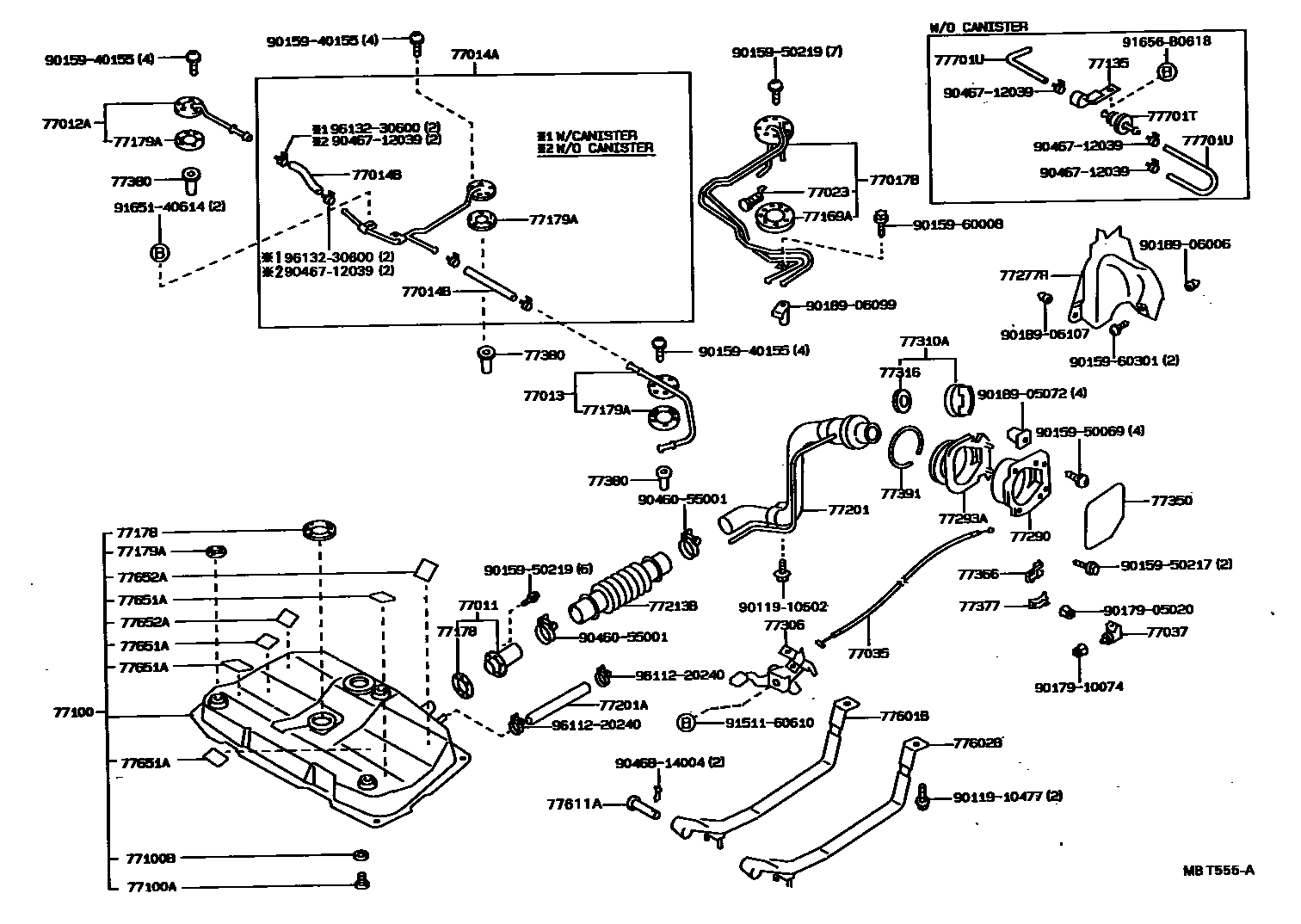

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20020iAT171,CT170,ST171198712-199211

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-32020iAT171,CT170,ST171198712-199211

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77012-32020iST171..W;AT171,CT170..CBR,DSL198911-199211

main77012-32020iAT171..G..CBR198712-198911

EXHAUST EMISSION CONTROL(ANNEX 25)

main77013-20060iAT171,ST171..G198712-199211

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-20050iAT171,ST171..G198712-199211

main77014-32020iAT171..G..CBR198712-198911

ANNEX 25,23

main77014-32020iST171..W;AT171,CT170..CBR,DSL198911-199211

77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

main95333-06010iAT171,CT170,ST171198712-199211

L=100

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20100iAT171..CBR198712-198808

main77017-20101iAT171..CBR198808-199211

main77017-20110iCT170198712-198808

main77017-20111iCT170198808-199211

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT171..CBR198712-199211

main77023-32010iCT170198712-199211

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20180iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

main77035-20190iAT171,CT170,ST171..LHD198712-199211

main77035-95505iAT171,CT170..RHD..WG198805-199211

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20040iAT171,CT170,ST171198712-199211

77100TANK ASSY, FUEL

main77001-39215iAT171,CT170,ST171198712-198808

sub23206-74341

sub23206-74371

sub23206-74460

sub23206-74480

sub77001-39285

sub77001-39295

sub77017-20101

sub77017-20111

sub77017-32041

sub77017-32061

main77001-39285iAT171,CT170,ST171198808-199211

sub77001-39425

77100APLUG(FOR FUEL TANK)

main90341-20004iAT171,CT170,ST171198712-199211

77100BGASKET(FOR FUEL TANK)

main90430-20007iAT171,CT170,ST171198712-199211

77135BRACKET, CHECK VALVE

main77135-20060iST171..W;AT171,CT170198712-199211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iAT171,CT170..CBR,DSL198712-199211

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iAT171,CT170,ST171198712-199211

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAT171,ST171..W;AT171,CT170..DSL,EFI198712-198911

ANNEX 25,23

main77179-16010iAT171,CT170,ST171198911-199211

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20260iAT171,ST171..G198712-199211

main77201-20310iCT170;AT171,ST171..W198712-199211

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22030iAT171,CT170,ST171198712-199211

L=185,WHITE PAINTED

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32010iAT171,CT170,ST171198712-199211

L=248

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20150iAT171,CT170,ST171198712-199211

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20040iAT171,CT170,ST171198712-199211

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20030iAT171,CT170,ST171198712-198805

main77293-20031iAT171,CT170,ST171198805-199211

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iAT171,CT170..RHD..WG198712-199211

main77306-14020iAT171,CT170,ST171..LHD..WG198712-199211

77310ACAP ASSY, FUEL TANK

main77310-12100iAT171,ST171..W198712-199211

main77310-16011iAT171,ST171..G198712-199211

sub77310-12140

main77310-35061iCT170198712-199211

77316GASKET, FUEL TANK CAP

main77316-12050iCT170;AT171,ST171..W198712-199211

main77316-16010iAT171,ST171..G198712-199211

77350LID ASSY, FUEL FILLER OPENING

main77350-20100iAT171,CT170,ST171198712-198805

sub77350-20101

sub77293-20041

main77350-20101iAT171,CT170,ST171198805-199211

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iAT171,CT170,ST171198712-199211

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20040iAT171,CT170,ST171198712-199211

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAT171,CT170,ST171198712-199211

77391RING, FUEL INLET BOX

main77391-16011iAT171,CT170,ST171198712-199211

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-32050iAT171,CT170,ST171198712-199211

sub77601-32040

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-32040iAT171,CT170,ST171198712-199211

sub77602-32030

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAT171,CT170,ST171198712-199211

77651ACUSHION, FUEL TANK, NO.1

main77651-32050iAT171,CT170,ST171198712-199211

77652ACUSHION, FUEL TANK, NO.2

main77652-32030iAT171,CT170,ST171198712-199211

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iST171..W;AT171,CT170198712-199211

sub90917-10082

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06030iST171..W;AT171,CT170..CBR,DSL198911-199211

L=300

sub95338-06030

9011910477

main90119-10477

9011910502

main90119-10502

9015940155

main90159-40155

9015950069

main90159-50069

9015950217

main90159-50217

9015950219

main90159-50219

9015960008

main90159-60008

9015960301

main90159-60301

9017905020

main90179-05020

9017910074

main90179-10074

9018905072

main90189-05072

9018906006

main90189-06006

9018906099

main90189-06099

9018906107

main90189-06107

9046055001

main90460-55001

9046712039

main90467-12039

9046814004

main90468-14004

9151160610

main91511-60610

9165140614

main91651-40614

91656B0618

main91656-B0618

9611220240

main96112-20240

9613230600

main96132-30600

59 parts on this diagram · 6 diagrams in section
