BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20040iAT171,ST171198712-199211

74413BOLT, BATTERY CLAMP

main74407-20060iAT171..CBR198712-199211

main74451-14010iCT170..RHD198712-199211

COLD SPEC

main74451-30060iAT171,CT170,ST171..DSL,EFI198712-199211

74431TRAY, BATTERY

main74431-14020iAT171,ST171198712-199211

main74431-20010iAT171,ST171..RHD198712-199211

COLD SPEC

sub74431-26010

main74431-20010iCT170198712-199211

sub74431-26010

main74431-20020iCT170..RHD198712-199211

COLD SPEC

sub74431-35040

74481CLAMP, BATTERY HOLD DOWN

main74404-20260iAT171,ST171..EFI198712-199211

main74404-20270iCT170198712-199211

main74404-20270iAT171,ST171..LHD..EFI198712-199211

COLD SPEC

main74404-20280iCT170..LHD198712-199211

COLD SPEC

main74404-20300iAT171..CBR198712-199211

main74404-20310iAT171..RHD198712-199211

COLD SPEC

9011906375

main90119-06375

9017906146

main90179-06146

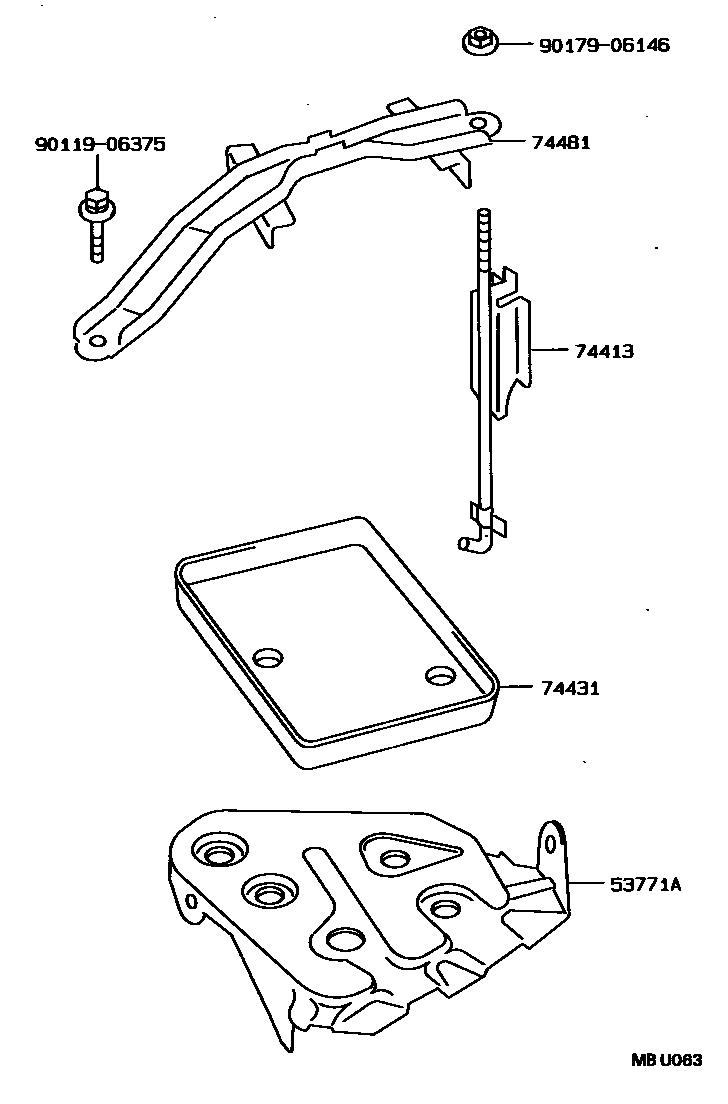

6 parts on this diagram · 1 diagram in section
