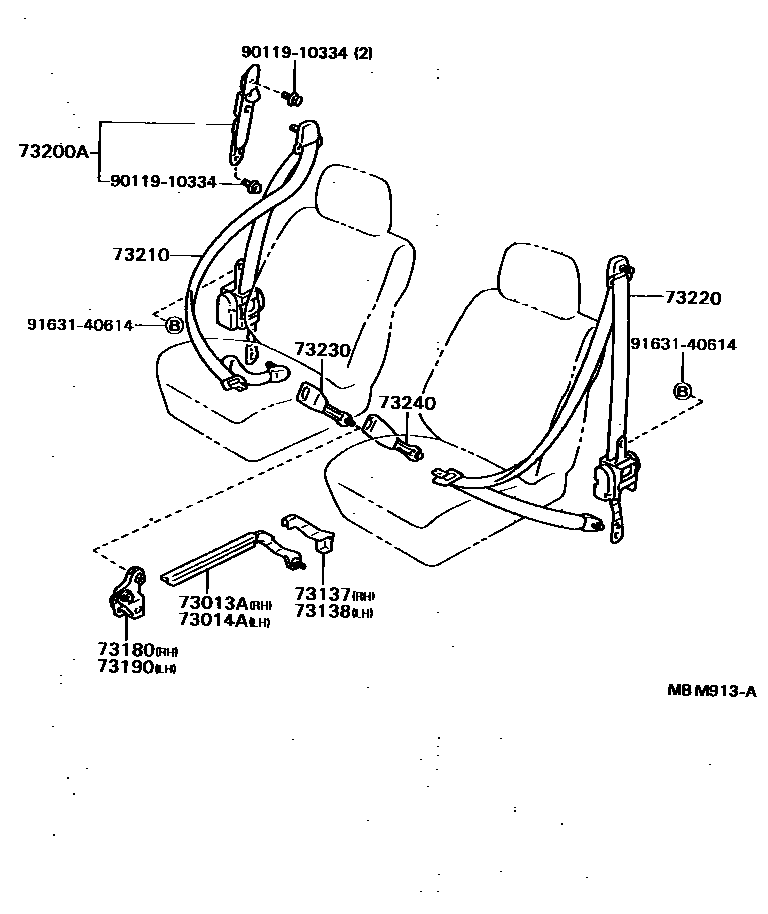

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-20040-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub73013-20040

main73013-20040-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub73013-20040

main73013-20040-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

sub73013-20040

main73013-20040-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

sub73013-20040

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-20040-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub73014-20040

main73014-20040-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub73014-20040

main73014-20040-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

sub73014-20040

main73014-20040-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

sub73014-20040

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-20050-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub73137-20050

main73137-20050-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub73137-20050

main73137-20050-06iAT171,CT170,ST171..LB,SED198712-199211

SABLE,TRIM4#

sub73137-20050

main73137-20050-14iCT170198911-199211

DARK BLUE,TRIM8#

sub73137-20050

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-20040-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub73138-20040

main73138-20040-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub73138-20040

main73138-20040-06iAT171,CT170,ST171..(LB,SED)..GL198712-199211

SABLE,TRIM4#

sub73138-20040

main73138-20040-14iAT171..RHD..(LB,SED)198911-199211

DARK BLUE,TRIM8#

sub73138-20040

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-20030iAT171,CT170,ST171198712-199211

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-20030iAT171,CT170,ST171198712-199211

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-20010-03iAT171,CT170..WG198712-199006

GRAY,TRIM1#

sub73200-20010

main73200-20010-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub73200-20010

main73200-20010-06iAT171,CT170,ST171..LB,SED198712-198911

SABLE,TRIM4#

sub73200-20010

main73200-20010-14iAT171,CT170..WG198911-199006

DARK BLUE,TRIM8#

sub73200-20010

main73200-20030-03iAT171,CT170,ST171..LB,SED198911-199211

GRAY,TRIM1#

main73200-20030-04iAT171,CT170,ST171..LB,SED198911-199211

DARK BLUE,TRIM8#

main73200-20030-06iAT171,CT170,ST171..LB,SED198911-199203

SABLE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20460-03iAT171,CT170,ST171198712-198911

GRAY,TRIM1#

main73210-20460-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

main73210-20460-06iAT171,CT170,ST171..LB,SED198712-198911

SABLE,TRIM4#

main73210-20600-03iAT171,CT170,ST171198911-199211

GRAY,TRIM1#

main73210-20600-04iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

main73210-20600-06iAT171,CT170,ST171..LB,SED198911-199203

SABLE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20320-03iAT171,CT170,ST171198712-198911

GRAY,TRIM1#

main73220-20320-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

main73220-20320-06iAT171,CT170,ST171..LB,SED198712-198911

SABLE,TRIM4#

main73220-20450-03iAT171,CT170,ST171198911-199211

GRAY,TRIM1#

main73220-20450-04iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

main73220-20450-06iAT171,CT170,ST171..LB,SED198911-199203

SABLE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20460-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

main73230-20460-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

main73230-20460-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

main73230-20460-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20460-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

main73230-20460-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

main73230-20460-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

main73230-20460-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

9011910334

main90119-10334

9163140614

main91631-40614

13 parts on this diagram · 2 diagrams in section
