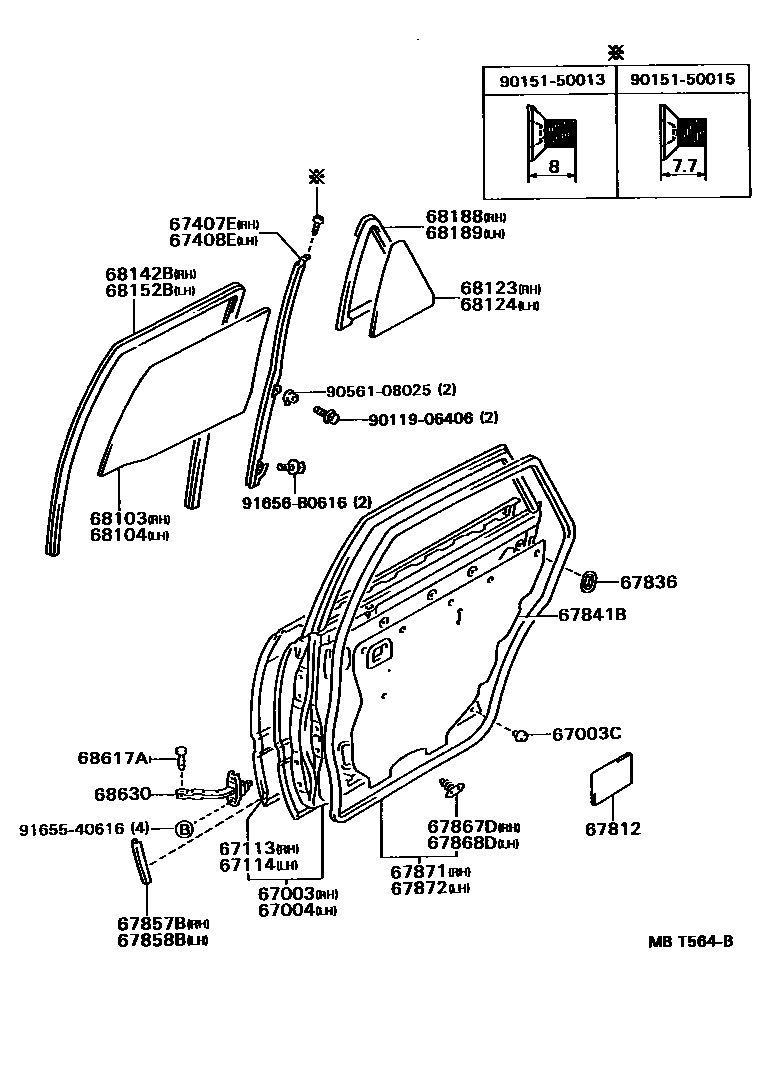

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20500iAT171,CT170,ST171..SED198712-199203

main67003-20540iAT171,CT170,ST171..LB198712-199203

main67003-95500iAT171,CT170,ST171..WG198712-199211

67003CCUSHION, REAR DOOR PANEL

main90541-09064iAT171,CT170,ST171198712-199211

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20500iAT171,CT170,ST171..SED198712-199203

main67004-20540iAT171,CT170,ST171..LB198712-199203

main67004-95500iAT171,CT170,ST171..WG198712-199211

67113PANEL, REAR DOOR, OUTER RH

main67113-20100iAT171,CT170,ST171198712-199211

67114PANEL, REAR DOOR, OUTER LH

main67114-20100iAT171,CT170,ST171198712-199211

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20140iAT171,CT170,ST171..SED198712-199203

main67407-20150iAT171,CT170,ST171..LB198712-199203

main67407-95501iAT171,CT170,ST171..WG198712-199211

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20130iAT171,CT170,ST171..SED198712-199203

main67408-20140iAT171,CT170,ST171..LB198712-199203

main67408-95501iAT171,CT170,ST171..WG198712-199211

67812PAD, REAR DOOR SILENCER

main67812-12010iAT171,CT170,ST171198712-199211

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-20060iAT171,CT170,ST171..RHD198712-199211

COLD SPEC

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-20170iAT171,CT170,ST171198712-198803

main67841-20170iAT171,CT170,ST171198803-199211

RH

main67842-20120iAT171,CT170,ST171198803-199211

LH

sub67841-20170

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-20010iAT171,CT170,ST171198712-198802

W(CHIPPING TAPE)

sub67857-20011

main67857-20011iAT171,CT170,ST171198802-199211

W(CHIPPING TAPE)

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-20010iAT171,CT170,ST171198712-198802

W(CHIPPING TAPE)

sub67858-20011

main67858-20011iAT171,CT170,ST171198802-199211

W(CHIPPING TAPE)

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-20050iAT171,CT170,ST171..SED198712-199203

sub67868-20060

main67868-20060iAT171,CT170,ST171..LB,WG198712-199211

sub67867-12150

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-20050iAT171,CT170,ST171..SED198712-199203

sub67868-20060

main67868-20060iAT171,CT170,ST171..LB,WG198712-199211

sub67867-12150

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20210iAT171,CT170,ST171..SED198712-199203

main67871-20220iAT171,CT170,ST171..LB198712-199203

main67871-95501iAT171,CT170,ST171..WG198712-199211

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20210iAT171,CT170,ST171..SED198712-199203

main67872-20220iAT171,CT170,ST171..LB198712-199203

main67872-95500iAT171,CT170,ST171..WG198712-199211

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-20370iAT171,CT170,ST171..SED198712-199203

*TT,T=3.5

main68113-20420iAT171,CT170,ST171..LB198712-199203

*TT,T=3.5

main68113-95503iAT171,CT170,ST171..WG198712-198805

*TT,T=3.5

sub68113-95507

main68113-95507iAT171,CT170,ST171..WG198805-199211

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-20290iAT171,CT170,ST171..SED198712-199203

*TT,T=3.5

main68114-20340iAT171,CT170,ST171..LB198712-199203

*TT,T=3.5

main68114-95502iAT171,CT170,ST171..WG198712-198805

*TT,T=3.5

sub68114-95506

main68114-95506iAT171,CT170,ST171..WG198805-199211

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-20360iAT171,CT170,ST171..SED198712-199203

*TT,T=3.5

main68123-20410iAT171,CT170,ST171..LB198712-199203

*TT,T=3.5

main68123-95501iAT171,CT170,ST171..WG198712-199211

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-20280iAT171,CT170,ST171..SED198712-199203

*TT,T=3.5

main68124-20330iAT171,CT170,ST171..LB198712-199203

*TT,T=3.5

main68124-95501iAT171,CT170,ST171..WG198712-199211

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-20090iAT171,CT170,ST171..SED198712-199203

main68142-20100iAT171,CT170,ST171..LB198712-199203

main68142-95501iAT171,CT170,ST171..WG198712-199211

68152BRUN, REAR DOOR WINDOW, LH

main68152-20030iAT171,CT170,ST171..SED198712-199203

main68152-20040iAT171,CT170,ST171..LB198712-199203

main68152-95502iAT171,CT170,ST171..WG198712-199211

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20110iAT171,CT170,ST171..SED198712-199203

main68188-20120iAT171,CT170,ST171..LB198712-199203

main68188-95500iAT171,CT170,ST171..WG198712-199211

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-20110iAT171,CT170,ST171..SED198712-199203

main68189-20120iAT171,CT170,ST171..LB198712-199203

main68189-95500iAT171,CT170,ST171..WG198712-199211

68617APIN, REAR DOOR CHECK

main68617-20011iAT171,CT170,ST171198712-199211

68630CHECK ASSY, REAR DOOR

main68630-20050iAT171,CT170198712-199211

9011906406

main90119-06406

9015150013

main90151-50013

9015150015

main90151-50015

9056108025

main90561-08025

9165540616

main91655-40616

91656B0616

main91656-B0616

32 parts on this diagram · 3 diagrams in section
