FRONT DOOR WINDOW REGULATOR & HINGE

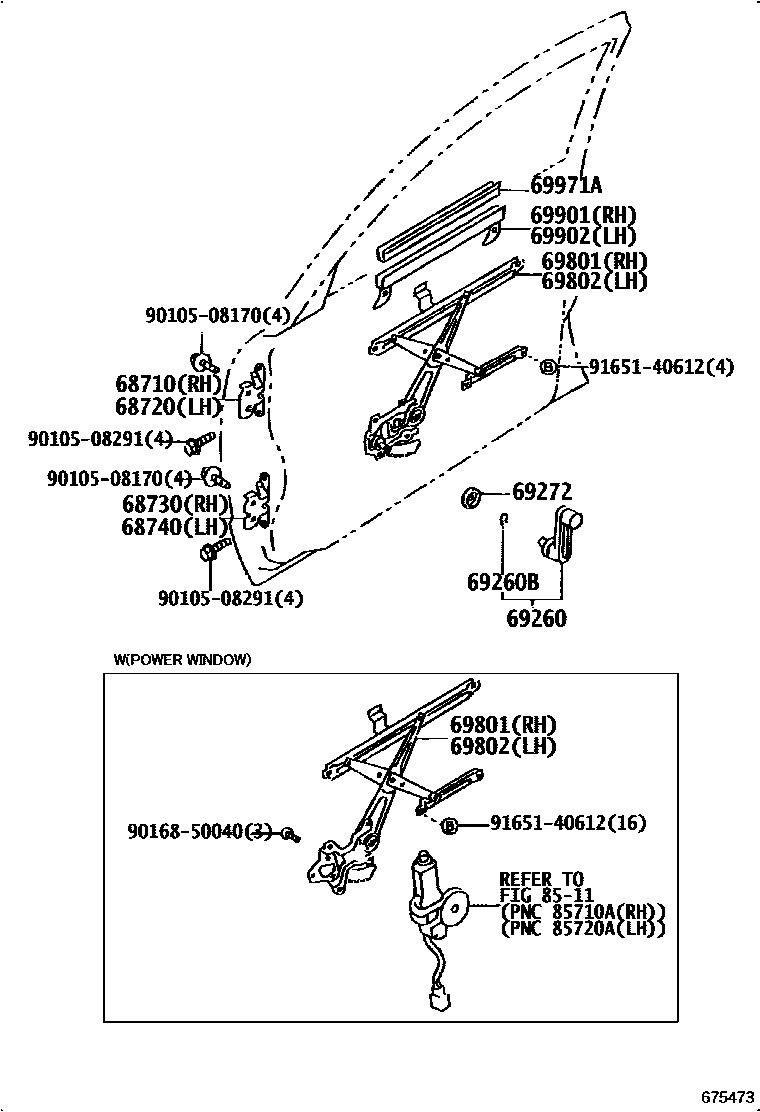

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-20060i198712-199211
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-20050i198712-199211
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-16010i198712-199211
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-16010i198712-199211
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-14030-09i198911-199211
DARK BLUE,TRIM8#
sub69260-14030
main69260-14030-33i198712-198808
GRAY,TRIM1#
sub69260-14030
main69260-14030-53i198712-199211
SHADOW GRAY,TRIM1#
sub69260-14030
main69260-14030-58i198712-199203
SABLE,TRIM4#
sub69260-14030
main69260-14030-59i198712-198911
DARK BLUE,TRIM8#
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198712-199211
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010-08i198712-199211
NATURAL WHITE,TRIM1#,8#
sub69285-22010
main69285-22010-08i198712-199211
NATURAL WHITE,TRIM1#,4#,8#
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-20150i198712-199211
W(POWER WINDOW)
main69810-20170i198712-199211
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-20150i198712-199211
W(POWER WINDOW)
main69820-20170i198712-199211
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-20130i198712-199008
W=9.4
main69901-20130i199008-199211
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69902-20060i198712-199008
W=9.4
main69902-20060i199008-199211
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-20010i198712-199211
sub69971-12090
8511
9010508170
main90105-08170
9010508291
main90105-08291
9016850040
main90168-50040
9165140612
main91651-40612

17 parts on this diagram · 1 diagram in section
