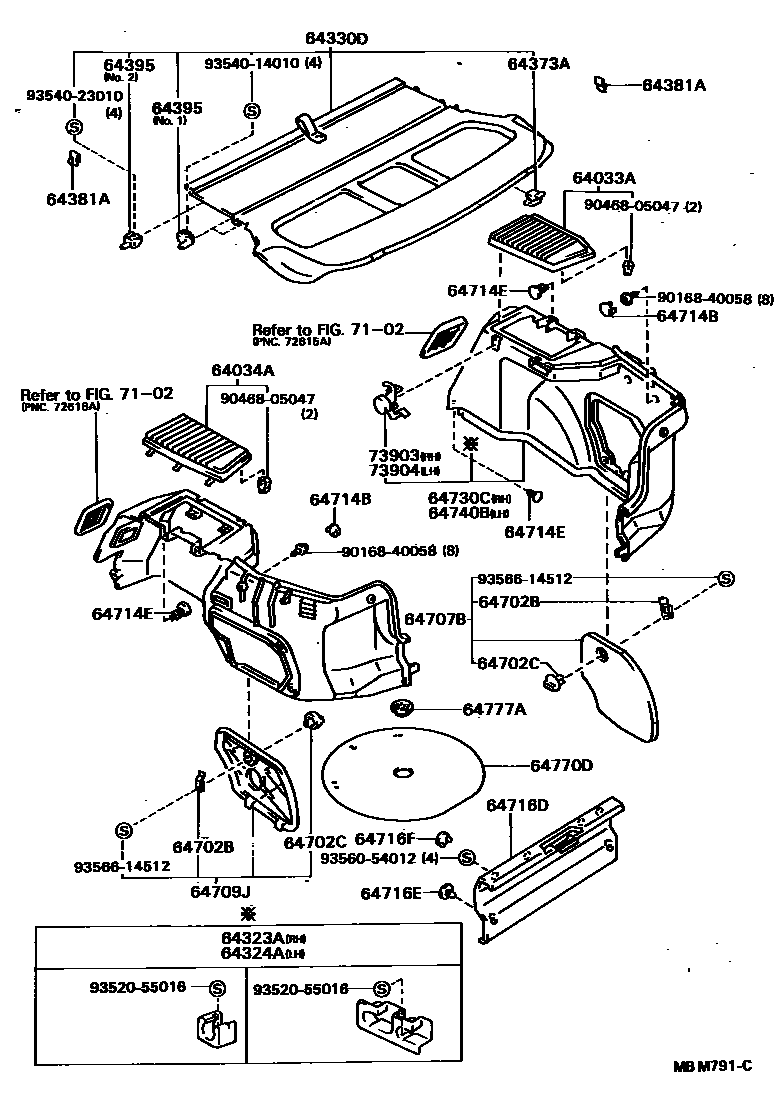

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20130-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64033-20130¥4,230

main64033-20130-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64033-20130¥4,230

main64033-20130-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64033-20130¥4,230

main64033-20130-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64033-20130¥4,230

main64033-20140-03iAT171,CT170..RHD..LB..XL198712-199203

W(SPEAKER),GRAY,TRIM1#

sub64033-20140¥3,880

main64033-20140-04iAT171,CT170,ST171..LB198712-198911

W(SPEAKER),BLUE,TRIM8#

sub64033-20140¥3,880

main64033-20140-06iAT171,CT170..RHD..LB..XL198712-199203

W(SPEAKER),SABLE,TRIM4#

sub64033-20140¥3,880

main64033-20140-14iAT171,CT170..RHD..LB..XL198911-199203

W(SPEAKER),DARK BLUE,TRIM8#

sub64033-20140¥3,880

main64033-20150-03iAT171,CT170,ST171..LB198712-199203

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64033-20150¥4,230

main64033-20150-04iAT171,CT170,ST171..LB198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64033-20150¥4,230

main64033-20150-06iAT171,CT170,ST171..LB198712-199203

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64033-20150¥4,230

main64033-20150-14iAT171,CT170,ST171..LB198911-199203

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64033-20150¥4,230

main64033-20180-03iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198712-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

sub64033-20180¥3,880

main64033-20180-04iAT171,CT170,ST171..LB198712-198911

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),BLUE,TRIM8#

sub64033-20180¥3,880

main64033-20180-06iAT171,CT170..RHD..LB..XL198712-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

sub64033-20180¥3,880

main64033-20180-14iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198911-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

sub64033-20180¥3,880

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20100-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64034-20100¥4,230

main64034-20100-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64034-20100¥4,230

main64034-20100-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64034-20100¥4,230

main64034-20100-14iAT171,CT170..LB..XL199011-199203

DARK BLUE,TRIM4#

sub64034-20100¥4,230

main64034-20100-14iAT171,CT170..LB..XL198911-199203

DARK BLUE,TRIM8#

sub64034-20100¥4,230

main64034-20110-03iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198712-199203

W(SPEAKER),GRAY,TRIM1#

sub64033-20120¥5,300

sub64034-20110¥3,880

main64034-20110-04iAT171,CT170,ST171..LB198712-198911

W(SPEAKER),BLUE,TRIM8#

sub64033-20120¥5,300

sub64034-20110¥3,880

main64034-20110-06iAT171,CT170..RHD..LB..XL198712-199203

W(SPEAKER),SABLE,TRIM4#

sub64033-20120¥5,300

sub64034-20110¥3,880

main64034-20110-14iAT171,CT170..RHD..LB..XL198911-199203

W(SPEAKER),DARK BLUE,TRIM8#

sub64033-20120¥5,300

sub64034-20110¥3,880

main64034-20120-03iAT171,CT170,ST171..LB198712-199203

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64034-20120¥4,230

main64034-20120-04iAT171,CT170,ST171..LB198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64034-20120¥4,230

main64034-20120-06iAT171,CT170,ST171..LB198712-199203

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64034-20120¥4,230

main64034-20120-14iAT171,CT170,ST171..LB198911-199203

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64034-20120¥4,230

main64034-20150-03iAT171,CT170..RHD..LB..XL198712-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

sub64034-20150¥3,880

main64034-20150-04iAT171,CT170,ST171..LB198712-198911

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),BLUE,TRIM8#

sub64034-20150¥3,880

main64034-20150-06iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198712-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

sub64034-20150¥3,880

main64034-20150-14iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198911-199203

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

sub64034-20150¥3,880

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-12020iAT171,CT170,ST171..LB¥370198712-199203

TYPE A

main64323-20030iAT171,CT170,ST171..LB¥440198712-199203

TYPE B

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-12010iAT171,CT170,ST171..LB¥350198712-199203

TYPE A

main64324-20020iAT171,CT170,ST171..LB¥440198712-199203

TYPE B

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-20890-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64330-20890¥17,600

main64330-20890-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64330-20890¥17,600

main64330-20890-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64330-20890¥17,600

main64330-20890-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64330-20890¥17,600

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-10040iAT171,CT170,ST171..LB¥850198712-199203

main64373-20040iAT171,CT170..SED..XL¥950198802-198806

sub64373-20070¥940

64381AHANGER, PACKAGE TRAY TRIM

main64381-20010iAT171,CT170,ST171..LB¥260198712-199203

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-12020iAT171,CT170,ST171..LB¥520198712-199203

NO.2

main64395-20010iAT171,CT170,ST171..LB¥620198712-199203

NO.1

64702BSTOPPER, WASHER TANK COVER

main64981-16021iAT171,CT170,ST171..LB,WG¥320198712-199211

64702CKNOB, WASHER TANK COVER

main64982-16020-30iAT171,CT170,ST171..LB,WG198712-199211

SHADOW GRAY,TRIM1#

sub64982-16020¥260

main64982-16020-40iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64982-16020¥260

main64982-16020-54iAT171,CT170,ST171..LB,WG198712-198911

DARK BLUE,TRIM8#

sub64982-16020¥260

main64982-16020-58iAT171,CT170,ST171..LB,WG198911-199202

BLUE,TRIM8#

sub64982-16020¥260

main64982-16020-J1iAT171,CT170,ST171..LB,WG199202-199211

DK.BLUE,TRIM8#

sub64982-16020¥260

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-20030-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64707-20030¥3,950

main64707-20030-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64707-20030¥3,950

main64707-20030-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64707-20030¥3,950

main64707-20030-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64707-20030¥3,950

main64707-95501-03iAT171,CT170,ST171..WG198712-199211

GRAY,TRIM1#

sub64707-95501¥3,970

main64707-95501-04iAT171,CT170,ST171..WG198712-198911

BLUE,TRIM8#

sub64707-95501¥3,970

main64707-95501-14iAT171,CT170..WG198911-199211

DARK BLUE,TRIM8#

sub64707-95501¥3,970

64709JCOVER SUB-ASSY, DECK TRIM POCKET

main64709-20020-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64709-20020¥4,970

main64709-20020-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64709-20020¥4,970

main64709-20020-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64709-20020¥4,970

main64709-20020-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64709-20020¥4,970

main64709-95500-03iAT171,CT170,ST171..WG198712-199211

GRAY,TRIM1#

sub64709-95500¥4,970

main64709-95500-04iAT171,CT170,ST171..WG198712-198911

BLUE,TRIM8#

sub64709-95500¥4,970

main64709-95500-14iAT171,CT170..WG198911-199211

DARK BLUE,TRIM8#

sub64709-95500¥4,970

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01503-03iAT171..WG..GL198712-199211

SHADOW GRAY,TRIM1#

sub90950-01503¥190

main90950-01503-14iAT171,CT170,ST171..LB198712-198911

DARK BLUE,TRIM8#

sub90950-01503¥190

main90950-01503-24iAT171..WG..GL198911-199211

DARK BLUE,TRIM8#

sub90950-01503¥190

main90950-01503-26iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub90950-01503¥190

main90950-01503-J0iAT171..GL199203-199211

DARK BLUE,TRIM8#

sub90950-01503¥190

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-06061-04iAT171,CT170,ST171..LB198712-198911

DARK BLUE,TRIM8#

sub90467-06061¥120

sub90467-06020¥190

main90467-06061-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub90467-06061¥120

sub90467-06020¥190

main90467-06061-13iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub90467-06061¥120

sub90467-06020¥190

main90467-06061-24iAT171,CT170,ST171..LB198911-199203

BLUE,TRIM8#

sub90467-06061¥120

sub90467-06020¥190

main90467-09086-03iAT171..WG..GL198712-199211

GRAY,TRIM1#

main90467-09086-04iAT171,CT170,ST171..WG198712-198911

BLUE,TRIM8#

main90467-09086-14iAT171..WG..GL198911-199211

DARK BLUE,TRIM8#

64716DCOVER, DECK TRIM, REAR

main64716-20250-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

main64716-20250-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

main64716-20250-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

main64716-20250-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-05053-03iAT171,CT170,ST171..LB198801-199203

GRAY,TRIM1#

sub90467-05053¥160

main90467-05053-04iAT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL198801-199211

BLUE,TRIM8#

sub90467-05053¥160

main90467-05053-06iAT171,CT170,ST171..LB198801-199203

SABLE,TRIM4#

sub90467-05053¥160

main90467-05053-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub90467-05053¥160

main90467-09068-03iAT171,CT170,ST171..LB198712-198801

SHADOW GRAY,TRIM1#

sub90467-09068¥260

main90467-09068-14iAT171,CT170,ST171..LB198712-198801

DARK BLUE,TRIM8#

sub90467-09068¥260

main90467-09068-16iAT171,CT170,ST171..LB198712-198801

SABLE,TRIM4#

sub90467-09068¥260

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-03iAT171,CT170,ST171..LB198712-199203

SHADOW GRAY,TRIM1#

sub90950-01503¥190

main90950-01503-14iAT171,CT170,ST171..LB198712-198911

DARK BLUE,TRIM8#

sub90950-01503¥190

main90950-01503-24iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub90950-01503¥190

main90950-01503-26iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub90950-01503¥190

64730CBOARD, DECK TRIM SIDE, RH

main64730-20090-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

main64730-20090-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

main64730-20090-06iAT171..LB..CBR;CT170,ST171..LB;AT171..LB..GL..EFI198712-199203

SABLE,TRIM4#

main64730-20090-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

main64731-95501-03iAT171,CT170,ST171..WG..XL198712-199211

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64731-95501-03iAT171..WG..GL198712-199211

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64731-95501-04iAT171..WG..GL198712-198911

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64731-95501-04iAT171..WG..GL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64731-95501-14iAT171,CT170..WG..XL198911-199211

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64731-95501-14iAT171..WG..GL198911-199211

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64731-95502-03iAT171,CT170,ST171..WG..XL198712-199211

GRAY,TRIM1#

main64731-95502-03iAT171,CT170,ST171..WG..XL198712-199211

W(TONNEAU COVER),GRAY,TRIM1#

main64731-95502-04iAT171..WG..GL198712-198911

W(TONNEAU COVER),BLUE,TRIM8#

main64731-95502-04iAT171,CT170,ST171..WG..XL198712-198911

BLUE,TRIM8#

main64731-95502-14iAT171,CT170..WG..XL198911-199211

W(TONNEAU COVER),DARK BLUE,TRIM8#

main64731-95502-14iAT171..WG..GL198911-199211

DARK BLUE,TRIM8#

main64731-95503-03iAT171,CT170,ST171..WG..XL198712-199211

GRAY,TRIM1#

main64731-95503-04iAT171,CT170,ST171..WG..XL198712-198911

BLUE,TRIM8#

main64731-95503-14iAT171,CT170..WG..XL198911-199211

DARK BLUE,TRIM8#

main64731-95504-03iAT171,CT170,ST171..WG..XL198712-199211

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64731-95504¥18,700

main64731-95504-04iAT171,CT170,ST171..WG..XL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64731-95504¥18,700

main64731-95504-14iAT171,CT170..WG..XL198911-199211

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64731-95504¥18,700

64740BBOARD, DECK TRIM SIDE, LH

main64732-95501-03iAT171..WG..GL198712-199211

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64732-95501-03iAT171..WG..GL198712-199211

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64732-95501-04iAT171..WG..GL198712-198911

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64732-95501-04iAT171..WG..GL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64732-95501-14iAT171,CT170..WG..XL198911-199211

W(TONNEAU COVER) & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64732-95501-14iAT171,CT170..WG..XL198911-199211

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64732-95502-03iAT171..WG..GL198712-199211

W(TONNEAU COVER),GRAY,TRIM1#

main64732-95502-03iAT171..WG..GL198712-199211

GRAY,TRIM1#

main64732-95502-04iAT171,CT170,ST171..WG..XL198712-198911

BLUE,TRIM8#

main64732-95502-04iAT171..WG..GL198712-198911

W(TONNEAU COVER),BLUE,TRIM8#

main64732-95502-14iAT171,CT170..WG..XL198911-199211

DARK BLUE,TRIM8#

main64732-95502-14iAT171..WG..GL198911-199211

W(TONNEAU COVER),DARK BLUE,TRIM8#

main64732-95503-03iAT171,CT170,ST171..WG..XL198712-199211

GRAY,TRIM1#

main64732-95503-04iAT171,CT170,ST171..WG..XL198712-198911

BLUE,TRIM8#

main64732-95503-14iAT171,CT170..WG..XL198911-199211

DARK BLUE,TRIM8#

main64732-95504-03iAT171,CT170,ST171..WG..XL198712-199211

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64732-95504¥18,700

main64732-95504-04iAT171,CT170,ST171..WG..XL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64732-95504¥18,700

main64732-95504-14iAT171,CT170..WG..XL198911-199211

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64732-95504¥18,700

main64740-20090-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

main64740-20090-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

main64740-20090-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

main64740-20090-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

64770DCOVER ASSY, SPARE WHEEL

main64771-32040iAT171,CT170,ST171..LB¥3,730198712-199203

main64771-95500iAT171,CT170,ST171..WG¥2,410198712-199211

64777ACLAMP, SPARE WHEEL COVER

main64777-32030iAT171,CT170,ST171..LB,WG¥850198712-199211

7102

73903BRACKET SUB-ASSY, REAR SHELF, RH

main73903-16010iAT171,CT170,ST171..LB¥990198712-199203

73904BRACKET SUB-ASSY, REAR SHELF, LH

main73904-16010iAT171,CT170,ST171..LB¥990198712-199203

9016840058

main90168-40058¥120

9046805047

main90468-05047¥90

9352055016

main93520-55016¥120

9354014010

main93540-14010¥100

9354023010

main93540-23010¥120

9356054012

main93560-54012¥60

9356614512

main93566-14512¥120

31 parts on this diagram · 2 diagrams in section
