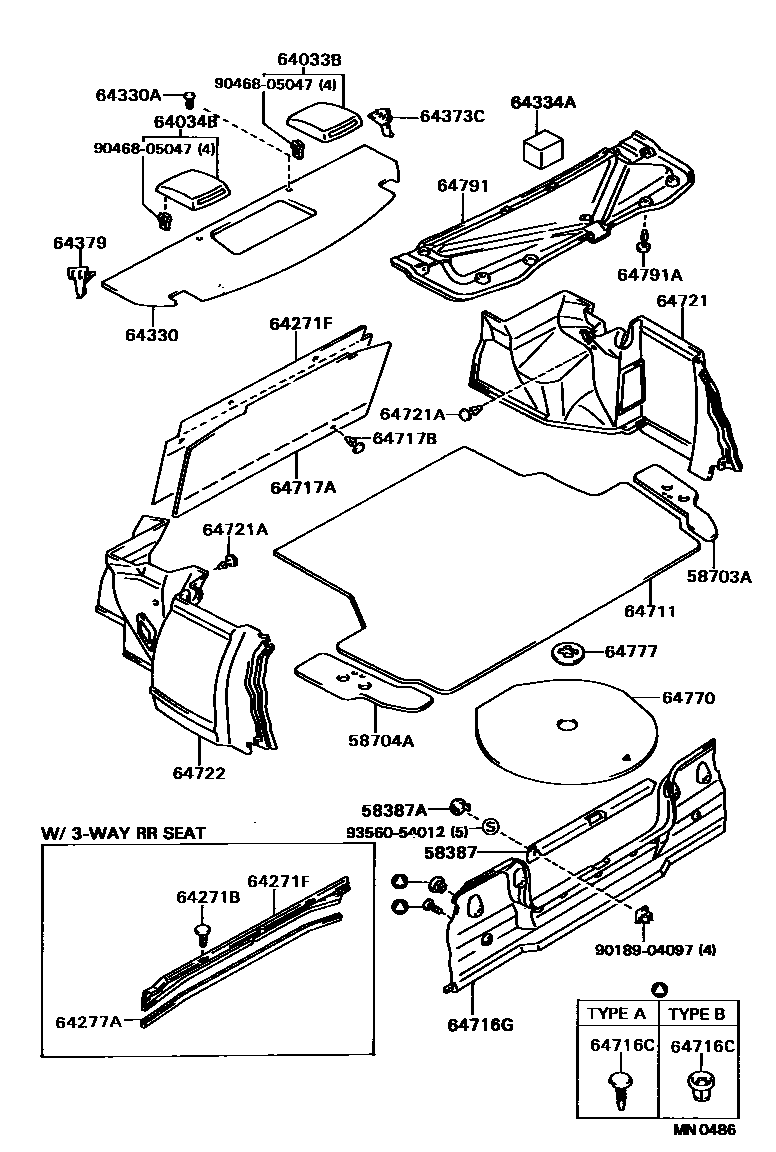

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20010-03iAT171,CT170,ST171..SED198911-199203

GRAY,TRIM1#,4#,8#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-B0iAT171,CT170,ST171..SED198911-199203

LIGHT GRAY,TRIM1#,4#,8#

sub90950-01503¥190

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20100iAT171,CT170,ST171..SED¥1,280198712-199203

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20100iAT171,CT170,ST171..SED¥1,280198712-199203

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20120-03iAT171,CT170,ST171..SED198712-199203

GRAY,TRIM1#

main64033-20120-04iAT171,CT170,ST171..SED198712-198911

BLUE,TRIM8#

main64033-20120-06iAT171,CT170,ST171..SED198712-199203

SABLE,TRIM4#

main64033-20120-14iAT171,CT170,ST171..SED198911-199203

DARK BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20120-03iAT171,CT170,ST171..SED198712-199203

GRAY,TRIM1#

main64033-20120-04iAT171,CT170,ST171..SED198712-198911

BLUE,TRIM8#

main64033-20120-06iAT171,CT170,ST171..SED198712-199203

SABLE,TRIM4#

main64033-20120-14iAT171,CT170,ST171..SED198911-199203

DARK BLUE,TRIM8#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06016-33iAT171,CT170,ST171..SED198712-199203

GRAY,TRIM1#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-40iAT171,CT170,ST171..SED198712-198911

DARK BLUE,TRIM8#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-48iAT171,CT170,ST171..SED198911-199203

BLUE,TRIM8#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-57iAT171,CT170,ST171..SED198712-199203

SABLE,TRIM4#

sub90467-06016¥230

sub90467-07049¥90

64271FTRIM, ROOM PARTITION

main64271-20160-B0iAT171,CT170..SED..XL198712-199203

GRAY,TRIM1#

main64271-20160-E0iAT171,CT170..SED..XL198712-199203

SABLE,TRIM4#

main64271-20160-J0iAT171,CT170..SED..XL198712-198911

BLUE,TRIM8#

main64271-20160-J1iAT171,CT170..SED..XL198911-199203

DARK BLUE,TRIM8#

main64271-20170-03iAT171,CT170,ST171..SED..GL198712-198911

W(SPLIT REAR SEAT),GRAY,TRIM4#

main64271-20170-03iAT171,CT170,ST171..SED..GL198712-198911

GRAY,TRIM4#

main64271-20170-03iAT171,CT170..SED..XL198911-199203

W(SPLIT REAR SEAT),GRAY,TRIM1#

main64271-20170-03iAT171,CT170,ST171..SED..GL198911-199203

GRAY,TRIM1#

main64271-20170-04iAT171,CT170..SED..XL198712-198911

BLUE,TRIM8#

main64271-20170-04iAT171,CT170,ST171..SED..GL198712-198911

W(SPLIT REAR SEAT),BLUE,TRIM8#

main64271-20170-06iAT171,CT170..SED..XL198712-198911

W(SPLIT REAR SEAT),SABLE,TRIM1#

main64271-20170-06iAT171,CT170..SED..XL198712-198911

SABLE,TRIM1#

main64271-20170-06iAT171,CT170..SED..XL198911-199203

W(SPLIT REAR SEAT),SABLE,TRIM4#

main64271-20170-06iAT171,CT170,ST171..SED..GL198911-199203

SABLE,TRIM4#

main64271-20170-14iAT171,CT170..SED..XL198911-199203

W(SPLIT REAR SEAT),DARK BLUE,TRIM8#

main64271-20170-14iAT171,CT170,ST171..SED..GL198911-199203

DARK BLUE,TRIM8#

64277AMOULDING, ROOM PARTITION TRIM

main64277-20020-03iAT171,CT170,ST171..SED198911-199203

GRAY,TRIM1#

main64277-20020-03iAT171,CT170,ST171..SED198712-198911

GRAY,TRIM4#

main64277-20020-04iAT171,CT170,ST171..SED198712-198911

BLUE,TRIM8#

main64277-20020-06iAT171,CT170,ST171..SED198712-198911

SABLE,TRIM1#

main64277-20020-06iAT171,CT170,ST171..SED198911-199203

SABLE,TRIM4#

main64277-20020-14iAT171,CT170,ST171..SED198911-199203

DARK BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20830-03iAT171,CT170..SED..XL198712-199203

GRAY,TRIM1#

sub64330-20830¥5,400

main64330-20830-04iAT171,CT170..SED..XL198712-198911

BLUE,TRIM8#

sub64330-20830¥5,400

main64330-20830-06iAT171,CT170..SED..XL198712-199203

SABLE,TRIM4#

sub64330-20830¥5,400

main64330-20830-14iAT171,CT170..SED..XL198911-199203

DARK BLUE,TRIM8#

sub64330-20830¥5,400

main64330-20840-03iAT171,CT170..SED..XL198712-199203

W(SPLIT REAR SEAT),GRAY,TRIM1#

sub64330-20840¥10,900

main64330-20840-03iAT171,CT170,ST171..SED..GL198712-199203

GRAY,TRIM1#

sub64330-20840¥10,900

main64330-20840-04iAT171,CT170..SED..XL198712-198911

BLUE,TRIM8#

sub64330-20840¥10,900

main64330-20840-04iAT171,CT170..SED..XL198712-198911

W(SPLIT REAR SEAT),BLUE,TRIM8#

sub64330-20840¥10,900

main64330-20840-06iAT171,CT170..SED..XL198712-199203

W(SPLIT REAR SEAT),SABLE,TRIM4#

sub64330-20840¥10,900

main64330-20840-06iAT171,CT170,ST171..SED..GL198712-199203

SABLE,TRIM4#

sub64330-20840¥10,900

main64330-20840-14iAT171,CT170,ST171..SED..GL198911-199203

DARK BLUE,TRIM8#

sub64330-20840¥10,900

main64330-20840-14iAT171,CT170..SED..XL198911-199203

W(SPLIT REAR SEAT),DARK BLUE,TRIM8#

sub64330-20840¥10,900

main64330-20850-03iAT171,CT170,ST171..SED198712-199203

W(SPEAKER),GRAY,TRIM1#

sub64330-20850¥10,900

main64330-20850-04iAT171,CT170,ST171..SED198712-198911

W(SPEAKER),BLUE,TRIM8#

sub64330-20850¥10,900

main64330-20850-06iAT171,CT170,ST171..SED198712-199203

W(SPEAKER),SABLE,TRIM4#

sub64330-20850¥10,900

main64330-20850-14iAT171,CT170,ST171..SED198911-199203

W(SPEAKER),DARK BLUE,TRIM8#

sub64330-20850¥10,900

main64330-20860-03iAT171,CT170..SED..XL198712-199203

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-20860¥5,400

main64330-20860-04iAT171,CT170..SED..XL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64330-20860¥5,400

main64330-20860-06iAT171,CT170..SED..XL198712-199203

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-20860¥5,400

main64330-20860-14iAT171,CT170..SED..XL198911-199203

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64330-20860¥5,400

main64330-20870-03iAT171,CT170..SED..XL198712-199011

W(SPLIT REAR SEAT) & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-20870-03iAT171,CT170..SED..XL199011-199203

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-20870-03iAT171,CT170,ST171..SED..GL198712-198911

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-20870-04iAT171,CT170..SED..XL198712-198911

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64330-20870-04iAT171,CT170..SED..XL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64330-20870-06iAT171,CT170..SED..XL198712-199011

W(SPLIT REAR SEAT) & W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main64330-20870-06iAT171,CT170,ST171..SED..GL198712-198911

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main64330-20870-06iAT171,CT170..SED..XL199011-199203

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main64330-20870-14iAT171,CT170..SED..XL198911-199011

W(SPLIT REAR SEAT) & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64330-20870-14iAT171,CT170..SED..XL199011-199203

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64330-2B040-03iAT171..SED..GL..CBR;AT171..SED..XL..EFI;CT170,ST171..SED..GL198712-199011

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

main64330-2B040-03iAT171..SED..GL..CBR;AT171..SED..XL..EFI;CT170,ST171..SED..GL198712-199203

W(REAR 3-POINT SEAT BELT & SPEAKER),GRAY,TRIM1#

main64330-2B040-04iAT171..SED..GL..EFI;AT171,CT170..SED..XL..(CBR,DSL)198712-198911

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),BLUE,TRIM8#

main64330-2B040-04iAT171..SED..GL..CBR;AT171..SED..XL..EFI;CT170,ST171..SED..GL198712-198911

W(REAR 3-POINT SEAT BELT & SPEAKER),BLUE,TRIM8#

main64330-2B040-06iAT171..SED..GL..CBR;AT171..SED..XL..EFI;CT170,ST171..SED..GL198712-199203

W(REAR 3-POINT SEAT BELT & SPEAKER),SABLE,TRIM4#

main64330-2B040-06iAT171..SED..GL..CBR;AT171..SED..XL..EFI;CT170,ST171..SED..GL198712-199011

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

main64330-2B040-14iAT171,CT170..SED..XL198911-199011

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

main64330-2B040-14iAT171,CT170..SED..XL199011-199203

W(REAR 3-POINT SEAT BELT & SPEAKER),DARK BLUE,TRIM8#

main64330-2B090-03iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-2B090¥9,800

main64330-2B090-04iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64330-2B090¥9,800

main64330-2B090-06iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-2B090¥9,800

main64330-2B130-03iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-P0INT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

main64330-2B130-04iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-P0INT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

main64330-2B130-06iAT171,CT170,ST171..SED..GL198911-199203

W(REAR 3-P0INT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-03iAT171,CT170,ST171..SED198712-199009

GRAY,TRIM1#

sub90467-08046¥130

sub90467-08037¥140

main90467-08046-24iAT171,CT170,ST171..SED198712-198807

DARK BLUE,TRIM8#

sub90467-08046¥130

sub90467-08037¥140

main90467-08046-26iAT171,CT170,ST171..SED198712-199203

SABLE,TRIM4#

sub90467-08046¥130

sub90467-08037¥140

main90467-08046-34iAT171,CT170,ST171..SED198911-199203

DARK BLUE,TRIM8#

sub90467-08046¥130

sub90467-08037¥140

main90467-08046-B1iAT171,CT170,ST171..SED199009-199203

SHADOW GRAY,TRIM1#

sub90467-08046¥130

sub90467-08037¥140

main90467-08046-J0iAT171,CT170,ST171..SED198903-198911

LIGHT BLUE,TRIM8#

sub90467-08046¥130

sub90467-08037¥140

64334APAD, PACKAGE TRAY TRIM

main64334-20230iAT171,CT170..SED..XL¥240198802-199203

64373CSTOPPER, PACKAGE TRAY TRIM, RH

main64373-20040iAT171,CT170,ST171..SED¥950198712-198911

sub64373-20070¥940

main64373-20070iAT171,CT170,ST171..SED¥940198911-199203

64379STOPPER, PACKAGE TRAY TRIM, LH

main64379-20020iAT171,CT170,ST171..SED¥950198712-198911

sub64379-20040¥940

main64379-20040iAT171,CT170,ST171..SED¥940198911-199203

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20450-03iAT171,CT170..SED..XL198712-198902

GRAY,TRIM1#,4#,8#

main64711-20460-03iAT171,CT170,ST171..SED..GL198712-198902

GRAY,TRIM1#,4#,8#

main64711-20460-03iAT171,CT170..SED..XL198806-198902

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

main64711-20540-03iAT171,CT170..SED..XL198712-198806

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

main64711-20690-03iAT171,CT170..SED..XL198902-199203

GRAY,TRIM1#,4#,8#

main64711-20700-03iAT171,CT170..SED..XL198902-199203

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

main64711-20700-03iAT171,CT170,ST171..SED..GL198902-199203

GRAY,TRIM1#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iAT171,CT170,ST171..SED198712-198905

GRAY,TRIM1#,4#,8#,TYPE A

sub90467-05004¥120

main90467-06083-03iAT171,CT170,ST171..SED198712-199203

GRAY,TRIM1#,4#,8#,TYPE B

main90467-07097-03iAT171,CT170,ST171..SED198905-199203

GRAY,TRIM1#,4#,8#,TYPE A

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20220-03iAT171,CT170..SED..XL198712-198911

GRAY,TRIM1#,4#,8#

sub64716-20230¥17,100

main64716-20230-03iAT171,CT170,ST171..SED..GL198712-198911

GRAY,TRIM1#,4#,8#

main64716-20380-03iAT171,CT170..SED..XL198911-199203

GRAY,TRIM1#,4#,8#

main64716-20390-03iAT171,CT170,ST171..SED..GL198911-199203

GRAY,TRIM1#,4#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20170-03iAT171,CT170..SED..XL198712-199203

GRAY,TRIM1#,4#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09066-B0iAT171,CT170..SED..XL198902-199203

GRAY,TRIM1#,4#,8#

sub90467-09066¥300

main90467-09066-B1iAT171,CT170..SED..XL198712-198911

GRAY,TRIM4#

sub90467-09066¥300

main90467-09066-B1iAT171,CT170..SED..XL198911-199203

GRAY,TRIM1#

sub90467-09066¥300

main90467-09066-E0iAT171..SED..5F..XL..EFI;AT171,CT170..LHD..SED..XL..(CBR,DSL)198911-199203

SABLE,TRIM4#

sub90467-09066¥300

main90467-09066-E0iAT171,CT170..SED..XL198712-198912

SABLE,TRIM1#

sub90467-09066¥300

main90467-09066-J0iAT171..SED..5F..XL..EFI;AT171,CT170..LHD..SED..XL..(CBR,DSL)198712-198912

BLUE,TRIM8#

sub90467-09066¥300

main90467-09066-W3iAT171,CT170..SED..XL198911-199203

DARK BLUE,TRIM8#

sub90467-09066¥300

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20150-03iAT171,CT170..SED..XL198712-199203

GRAY,TRIM1#,4#,8#

sub64721-20170¥3,760

main64721-20160-03iAT171,CT170..SED..XL198712-199203

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

sub64721-20180¥3,760

main64721-20180-03iAT171,CT170,ST171..SED..GL198712-199203

GRAY,TRIM1#,4#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03iAT171,CT170,ST171..SED198712-198807

GRAY,TRIM1#,4#,8#

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-B0iAT171,CT170,ST171..SED198807-199203

LIGHT GRAY,TRIM1#,4#,8#

sub90467-07042¥110

sub90467-06175¥220

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20120-03iAT171,CT170..SED..XL198712-199203

GRAY,TRIM1#,4#,8#

sub64722-20140¥4,500

main64722-20130-03iAT171,CT170..SED..XL198712-199203

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

sub64722-20150¥4,500

main64722-20150-03iAT171,CT170,ST171..SED..GL198712-199203

GRAY,TRIM1#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64771-32040iAT171,CT170,ST171..SED¥3,730198712-199203

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT171,CT170,ST171..SED¥850198712-199203

64791COVER, BACK DOOR TRIM

main64791-20020-03iAT171,CT170,ST171..SED..GL198712-199203

GRAY,TRIM1#,4#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07158-01iAT171,CT170,ST171..SED..GL198712-198804

COLD SPEC,BLACK,TRIM1#,4#,8#

sub90467-07158¥140

main90467-07158-01iAT171,CT170,ST171..SED..GL198712-198804

COLD SPEC & W(SPLIT REAR SEAT),BLACK,TRIM1#,4#,8#

sub90467-07158¥140

main90467-08056-01iAT171,CT170..SED..XL198911-199011

COLD SPEC & W(SPLIT REAR SEAT),BLACK,TRIM1#,4#,8#

sub90467-08056¥140

main90467-08056-01iAT171,CT170..SED..XL198911-199203

COLD SPEC,BLACK,TRIM1#,4#,8#

sub90467-08056¥140

main90467-08056-23iAT171,CT170..SED..XL198804-199011

COLD SPEC & W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

sub90467-08056¥140

main90467-08056-23iAT171,CT170,ST171..SED..GL198804-199203

COLD SPEC,GRAY,TRIM1#,4#,8#

sub90467-08056¥140

9018904097

main90189-04097¥130

9046805047

main90468-05047¥90

9356054012

main93560-54012¥60

29 parts on this diagram · 1 diagram in section
