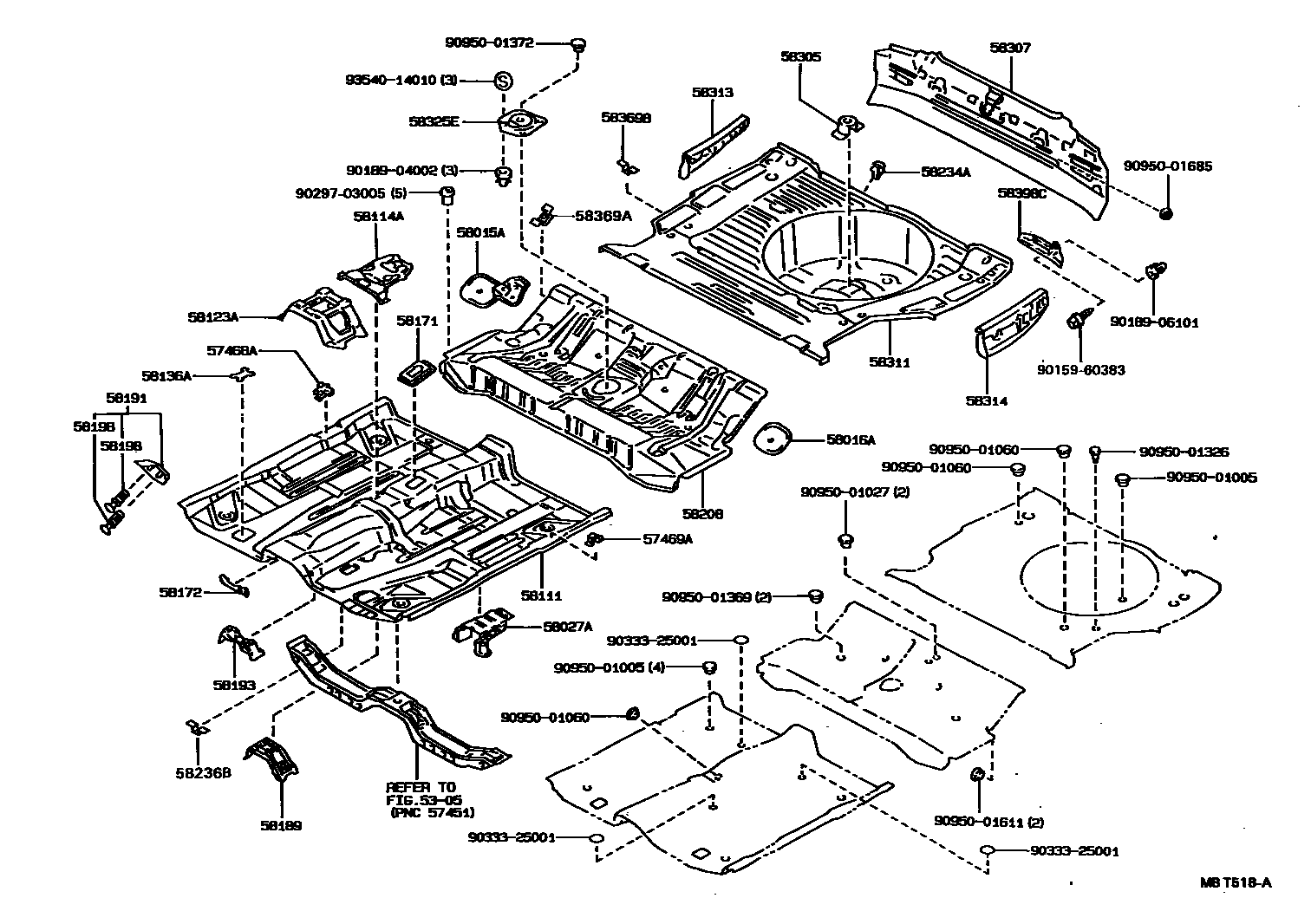

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5305

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-20030iAT171,CT170,ST171¥350198712-199211

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-20030iAT171,CT170,ST171¥350198712-199211

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32030iAT171,CT170,ST171¥4,120198712-199211

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32020iAT171,CT170,ST171¥2,680198712-199211

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20050iAT171,ST171..G¥3,280198712-199211

main58027-20070iCT170;AT171,ST171..W¥3,280198712-199211

58111PAN, FRONT FLOOR

main58111-20120iAT171,CT170,ST171¥51,900198712-199211

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20040iAT171,CT170,ST171¥1,850198712-199211

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20040iAT171,CT170,ST171¥3,580198712-199211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20010iAT171,CT170,ST171¥390198712-199211

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT171,CT170,ST171¥1,750198803-198912

main58107-20080iAT171,CT170,ST171198712-198803

main58171-20100iAT171,CT170,ST171¥1,470198912-199211

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-20040iAT171,CT170,ST171¥550198712-199211

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-20020iAT171,CT170,ST171¥2,360198712-199211

58191FOOTREST, FRONT FLOOR

main58191-20040iAT171,CT170,ST171..RHD¥1,970198712-199211

main58192-20020iAT171,CT170,ST171..LHD¥1,280198712-199211

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-20090iAT171,CT170,ST171¥2,170198712-199211

58198CLIP, FOOTREST

main58198-20020iAT171,CT170,ST171..RHD¥450198712-199211

L=97.1

main58198-20030iAT171,CT170,ST171..RHD¥330198712-199211

L=89.1

main58198-20040iAT171,CT170,ST171..LHD¥300198712-199211

L=34.6

main58198-20050iAT171,CT170,ST171..LHD¥440198712-199211

L=44.8

58208PAN, CENTER FLOOR

main58211-32050iAT171,CT170,ST171..WG¥28,000198712-198805

main58211-32051iAT171,CT170,ST171..LB,SED¥27,800198804-199211

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32020iAT171,CT170,ST171..LB,SED¥1,630198712-199203

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAT171,ST171..G¥680198712-199211

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAT171,CT170,ST171..LB,SED¥350198712-199203

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20630iAT171,CT170,ST171..SED¥17,400198712-198807

sub58307-20631¥17,400

main58307-20631iAT171,CT170,ST171..SED¥17,400198807-198907

sub58307-20632¥17,400

sub90467-07097¥140

main58307-20632iAT171,CT170,ST171..SED¥17,400198907-198910

sub58307-20633¥17,200

sub90950-01685¥130

main58307-20633iAT171,CT170,ST171..SED¥17,200198910-199203

main58307-20640iAT171,CT170,ST171..LB¥17,400198712-198807

sub58307-20641¥17,400

main58307-20641iAT171,CT170,ST171..LB¥17,400198807-198910

sub58307-20642¥17,200

sub90950-01685¥130

main58307-20642iAT171,CT170,ST171..LB¥17,200198910-199203

main58307-95516iAT171,CT170,ST171..WG¥15,700198712-199211

58311PAN, REAR FLOOR

main58311-32090iAT171,CT170,ST171..LB,SED¥36,800198712-199203

58313PANEL, REAR FLOOR SIDE, RH

main58313-20210iAT171,CT170,ST171..SED¥2,970198712-199203

main58313-20240iAT171,CT170,ST171..LB¥1,560198712-199203

58314PANEL, REAR FLOOR SIDE, LH

main58314-20190iAT171,CT170,ST171..SED¥2,970198712-199203

main58314-20220iAT171,CT170,ST171..LB¥1,560198712-199203

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32020iAT171,CT170,ST171¥2,050198712-199211

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010iAT171,CT170,ST171¥320198712-199211

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iAT171,CT170,ST171..LB,SED¥320198712-199203

58398CCOVER, BODY LOWER BACK, LH

main58398-20050iAT171,CT170,ST171..LB,SED¥3,880198712-199203

9015960383

main90159-60383¥70

9018904002

main90189-04002¥100

9018906101

main90189-06101¥140

9029703005

main90297-03005¥110

9033325001

main90333-25001¥140

9095001005

main90950-01005¥400

9095001027

main90950-01027¥160

9095001060

main90950-01060¥200

9095001326

main90950-01326¥200

9095001369

main90950-01369¥530

9095001372

main90950-01372¥520

9095001611

main90950-01611¥140

9095001685

main90950-01685¥130

9354014010

main93540-14010¥100

42 parts on this diagram · 3 diagrams in section
