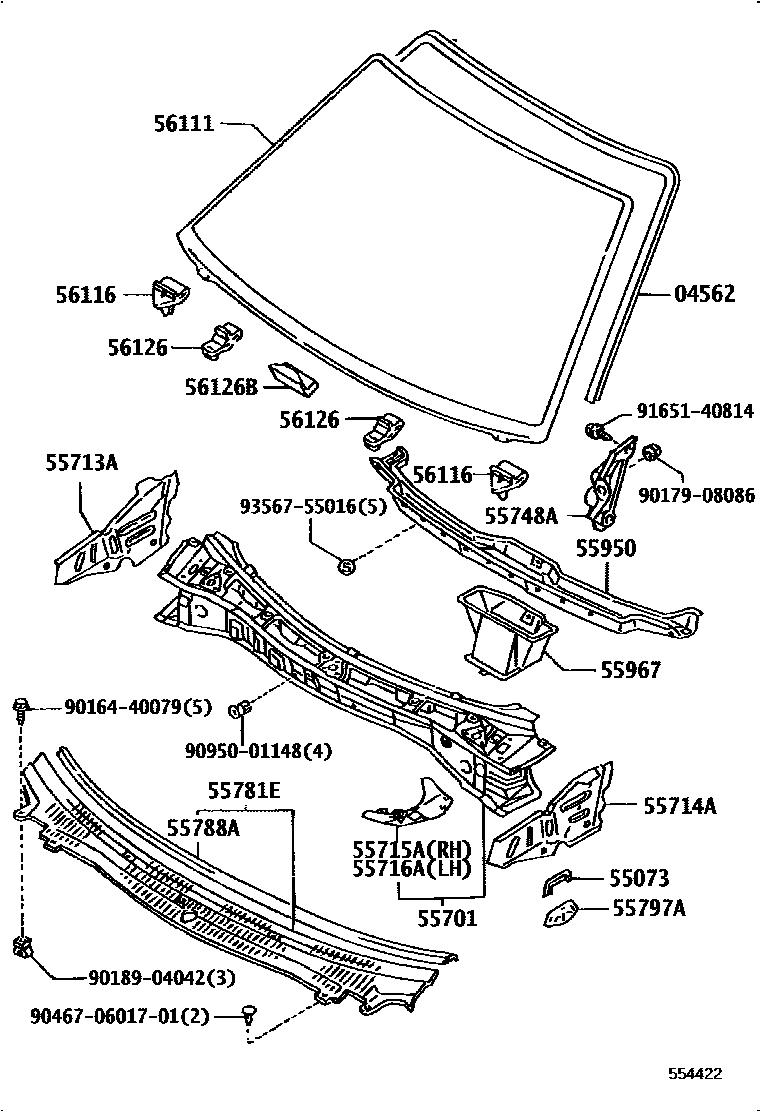

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
sub04562-30040
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55797ASEAL, COWL WATER EXTRACT
55950NOZZLE ASSY, DEFROSTER
55967NOZZLE, DEFROSTER, LOWER
56111GLASS, WINDSHIELD
*TL,T=5.3,BLUE,W(TOP SHADE)
*TL,T=5.3,BLUE,W(TOP SHADE)
*EHTL,T=5.3,BLUE
*EHTL,T=5.3,BLUE,W(TOP SHADE)
*EHTL,T=5.3,BLUE,W(TOP SHADE)
56116SPACER, WINDSHIELD GLASS
WHITE
BLUE
YELLOW
BLACK
RED
56126SPACER, WINDSHIELD GLASS, NO.2
56126BSPACER, WINDSHIELD GLASS, NO.2
9016440079
main90164-40079
9017908086
main90179-08086
9018904042
main90189-04042
904670601701
main90467-0601701
9095001148
main90950-01148
9165140814
main91651-40814
9356755016
main93567-55016
24 parts on this diagram · 2 diagrams in section
