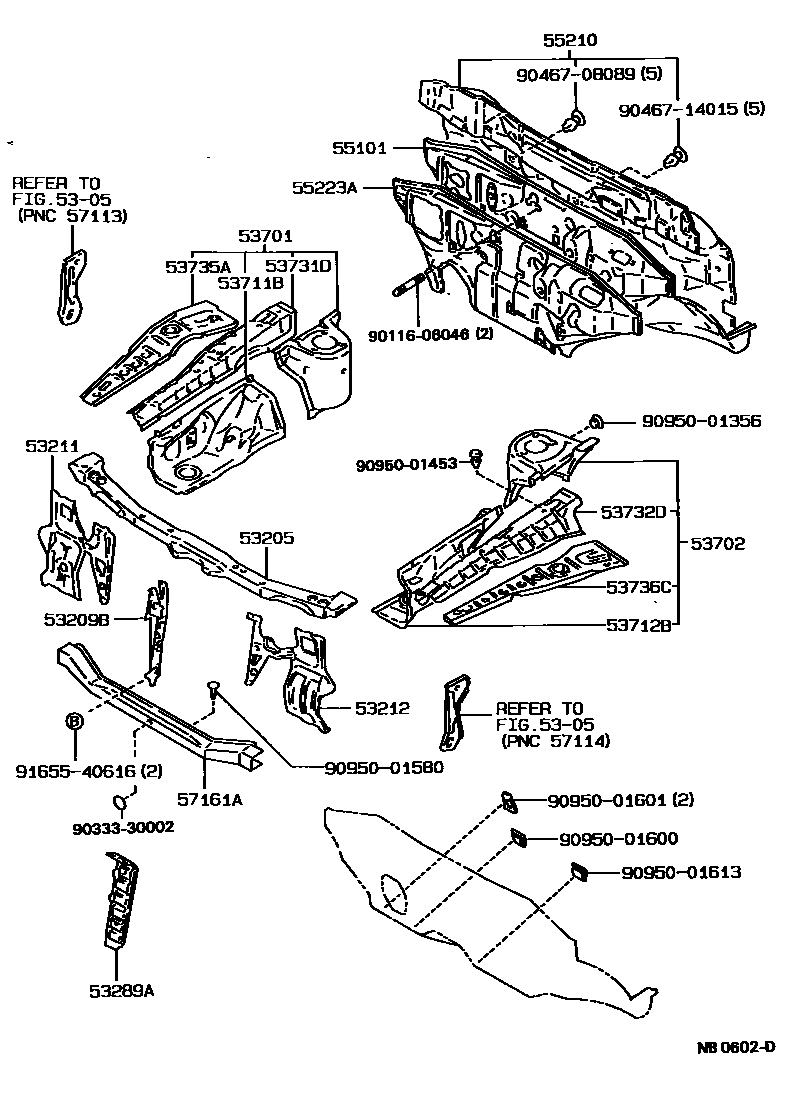

FRONT FENDER APRON & DASH PANEL

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-20900iAT171,CT170,ST171198712-199211

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-20160iAT171..RHD..SED198908-198911

SINGAPORE SPEC

sub53209-20180

main53209-20160iCT170,ST171198712-199211

sub53209-20180

main53209-20160iAT171..LHD..CBR198911-199211

EUROPE POSSESSIONS SPEC

sub53209-20180

main53209-20180iAT171198712-199211

53211SUPPORT, RADIATOR, RH

main53211-20190iAT171,CT170,ST171198712-199211

53212SUPPORT, RADIATOR, LH

main53212-20190iAT171,CT170,ST171198712-199211

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-20040iAT171..5F198712-199211

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20650iAT171,CT170,ST171198712-199211

main53701-20670iAT171..(LB,SED)..GL..CBR198712-199203

W(*66)

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20640iAT171,CT170,ST171198712-198907

sub53702-20641

sub17882-74111

main53702-20641iAT171,CT170,ST171198907-199211

main53702-20660iAT171..(LB,SED)..GL..CBR198712-199203

W(*66)

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20220iAT171,CT170,ST171198712-199211

main53711-20240iAT171..(LB,SED)..GL..CBR198712-199203

W(*66)

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20250iAT171,CT170,ST171198712-198907

sub53712-20251

sub17882-74111

main53712-20251iAT171,CT170,ST171198907-199211

main53712-20270iAT171..(LB,SED)..GL..CBR198911-199005

main53712-20270iAT171..(LB,SED)..GL..CBR198712-199203

W(*66)

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20070iAT171,CT170,ST171198712-199211

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20070iAT171..(LB,SED)..GL..CBR198712-199211

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-20050iAT171,CT170,ST171198712-199211

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-20060iAT171,CT170,ST171198712-199211

55101PANEL SUB-ASSY, DASH

main55101-2B070iCT170..RHD198712-198801

sub55101-2B903

main55101-2B110iCT170..LHD198712-198801

sub55101-2B905

main55101-2B120iAT171,ST171..LHD..4FC198712-198801

sub55101-2B906

main55101-2B170iAT171..EFI198712-198801

sub55101-2B907

main55101-2B903iAT171,CT170,ST171..RHD..5F198712-199211

main55101-2B904iAT171,ST171..RHD..4FC198712-199203

main55101-2B905iST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL)198712-199211

main55101-2B906iAT171,ST171..LHD..4FC198801-199203

main55101-2B907iAT171..EFI198801-198911

main55101-2B907iAT171..5F..EFI198911-199211

W(LEAN BURN(ANNEX 23) ENGINE)

55210INSULATOR ASSY, DASH PANEL

main55210-20180iAT171,CT170,ST171..LHD198712-199211

main55210-20190iAT171,CT170,ST171..RHD198712-199211

55223AINSULATOR, DASH PANEL, OUTER

main55223-20070iCT170..LHD198712-199211

main55223-20080iCT170..RHD198712-199211

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-20908iAT171,CT170,ST171198712-199211

9011606046

main90116-06046

9033330002

main90333-30002

9046708089

main90467-08089

9046714015

main90467-14015

9095001356

main90950-01356

9095001453

main90950-01453

9095001580

main90950-01580

9095001600

main90950-01600

9095001601

main90950-01601

9095001613

main90950-01613

9165540616

main91655-40616

29 parts on this diagram · 1 diagram in section
