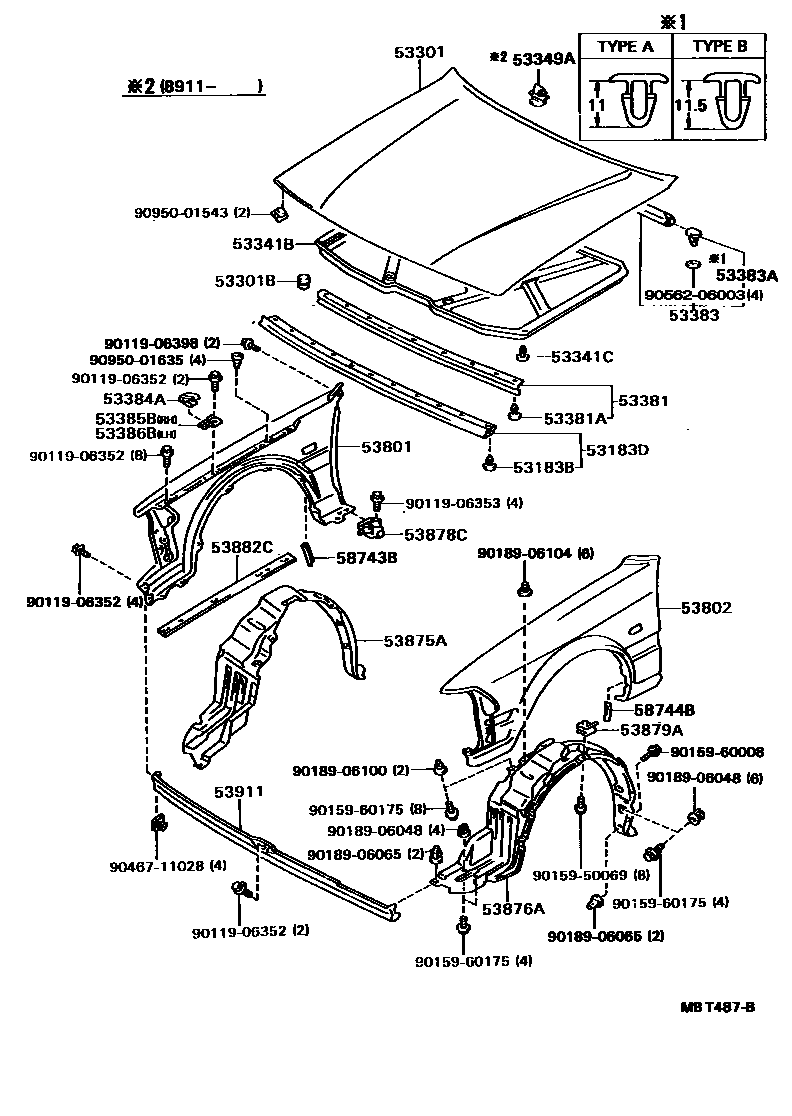

HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iAT171,CT170,ST171¥100198712-199211

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20020iAT171,CT170,ST171¥3,310198712-198801

main53183-20021iAT171,CT170,ST171¥3,280198801-199211

53301HOOD SUB-ASSY

main53301-20270iAT171,CT170,ST171¥50,500198712-198911

sub53301-20271¥49,900

main53301-20271iAT171,CT170,ST171¥49,900198911-199211

53301BCUSHION, HOOD BUMPER

main90541-15012iAT171,CT170,ST171¥330198712-199211

sub90541-15026¥320

53341BINSULATOR, HOOD

main53341-20150iCT170¥12,600198712-198911

sub53341-20160¥12,600

main53341-20151iCT170¥12,100198911-199206

sub53341-20161¥12,100

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iCT170¥110198712-199211

53349ARETAINER, HOOD INSULATOR

main53349-20030iCT170¥300198911-199211

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20090iAT171,CT170,ST171¥2,080198712-199211

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAT171,CT170,ST171¥100198712-199211

53383SEAL, HOOD TO COWL TOP

main53383-20110iAT171,CT170,ST171¥1,460198712-199211

main53383-20130iAT171,CT170,ST171..RHD¥1,460198712-199211

W(WINDOW DEFOGGER)

main53383-20140iAT171,CT170,ST171..LHD¥2,260198712-199211

W(WINDOW DEFOGGER)

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08044iAT171,CT170,ST171¥170198712-199211

TYPE A

sub90467-08011¥100

main90467-08050iAT171,CT170,ST171¥120198712-199211

TYPE B

53384ABUMPER, FENDER TO HOOD

main53384-14030iAT171,CT170,ST171¥300198712-199211

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iAT171,CT170,ST171¥370198712-199211

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iAT171,CT170,ST171¥370198712-199211

53801FENDER SUB-ASSY, FRONT RH

main53811-2B330iAT171,CT170,ST171¥39,200198712-199211

53802FENDER SUB-ASSY, FRONT LH

main53812-2B320iAT171,CT170,ST171¥39,200198712-199211

53875ALINER, FRONT FENDER, RH

main53875-20140iAT171,CT170,ST171¥6,200198712-199211

53876ALINER, FRONT FENDER, LH

main53876-20150iAT171,CT170,ST171¥6,200198712-199211

53878CSPACER, FRONT FENDER

main53878-20030iAT171,CT170,ST171¥240198712-199211

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAT171,CT170,ST171¥230198712-199211

53882CSEAL, FRONT FENDER MAIN

main53882-20080iAT171,CT170,ST171¥520198712-199211

53911PANEL, FRONT VALANCE

main53911-20150iAT171,CT170,ST171¥11,200198712-199211

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-20020iAT171,CT170,ST171¥750198712-199211

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-20020iAT171,CT170,ST171¥750198712-199211

9011906352

main90119-06352¥120

9011906353

main90119-06353¥160

9011906398

main90119-06398¥70

9015950069

main90159-50069¥160

9015960008

main90159-60008¥70

9015960175

main90159-60175¥120

9018906048

main90189-06048¥140

9018906065

main90189-06065¥80

9018906100

main90189-06100¥130

9018906104

main90189-06104¥90

9046711028

main90467-11028¥240

9056206003

main90562-06003¥130

9095001543

main90950-01543¥200

9095001635

main90950-01635¥190

38 parts on this diagram · 1 diagram in section
