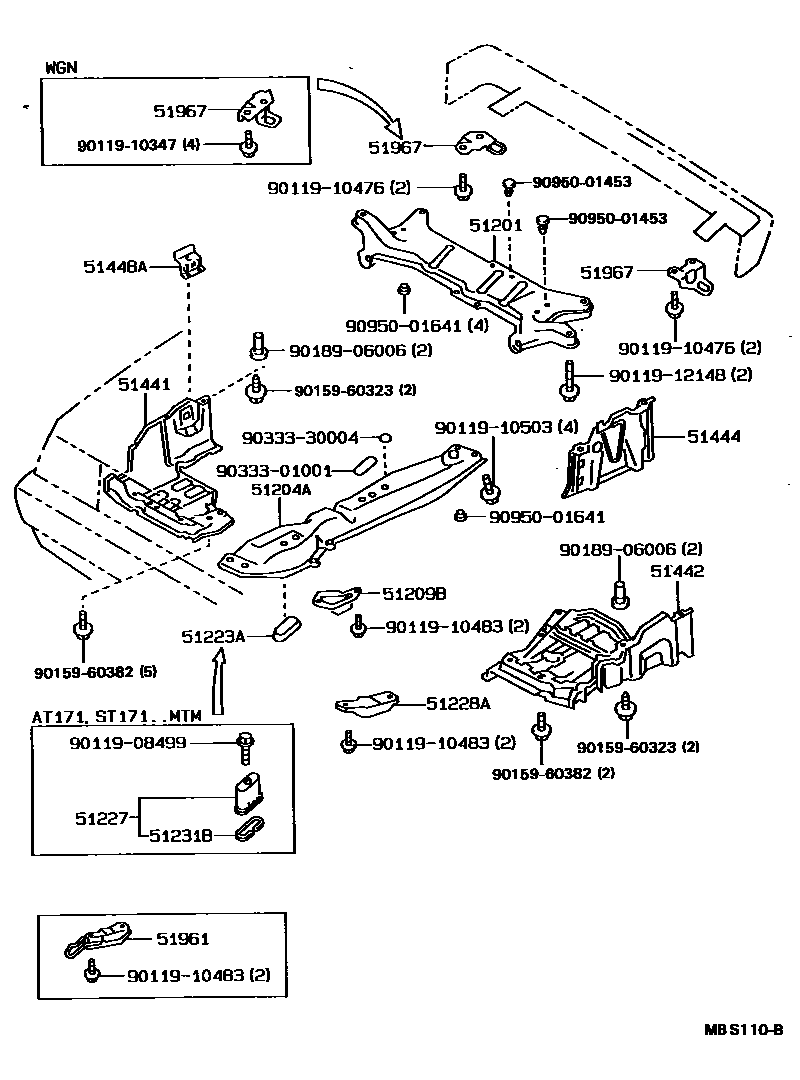

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20210iAT171,CT170,ST171..RHD198712-199211

main51201-20220iAT171,CT170,ST171..LHD198712-199211

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20070iAT171,CT170,ST171198712-199211

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iCT170;AT171..4FC198712-199211

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAT171,ST171..5F198712-199211

sub51223-20030

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-20040iAT171,ST171..5F198712-199211

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20030iST171;AT171..5F198712-199211

sub51228-20050

51231BSEAL, FRONT SUSPENSION MEMBER WEIGHT

main51231-20010iAT171,ST171..5F198712-199211

51441COVER, ENGINE UNDER, NO.1

main51441-20150iAT171,CT170,ST171198712-199211

51442COVER, ENGINE UNDER, NO.2

main51442-20090iAT171,CT170,ST171..5F198712-199211

main51442-20110iAT171..4FC198712-199203

main51442-20120iST171..4FC198712-199203

51444COVER, ENGINE UNDER, REAR LH

main51444-20050iST171..4FC198712-199203

main51444-20060iST171..4FC..G198712-199203

*FRG OR SWITZERLAND SPEC

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT171,CT170,ST171198712-199211

51961HOOK, NO.1

main51960-20010iAT171,ST171..GL..EFI;AT171..(LB,SED)..GL..W198712-199211

51967HOOK, TRANSPORT, REAR

main51095-20070iAT171,CT170,ST171..LB,SED198712-199203

RH

main51967-95501iAT171,CT170,ST171..WG198712-199211

RH

main51968-20030iAT171,CT170,ST171..LB,SED198712-199203

LH

main51968-95501iAT171,CT170,ST171..WG198712-199211

LH

9011908499

main90119-08499

9011910347

main90119-10347

9011910476

main90119-10476

9011910483

main90119-10483

9011910503

main90119-10503

9011912148

main90119-12148

9015960323

main90159-60323

9015960382

main90159-60382

9018906006

main90189-06006

9033301001

main90333-01001

9033330004

main90333-30004

9095001453

main90950-01453

9095001641

main90950-01641

26 parts on this diagram · 2 diagrams in section
