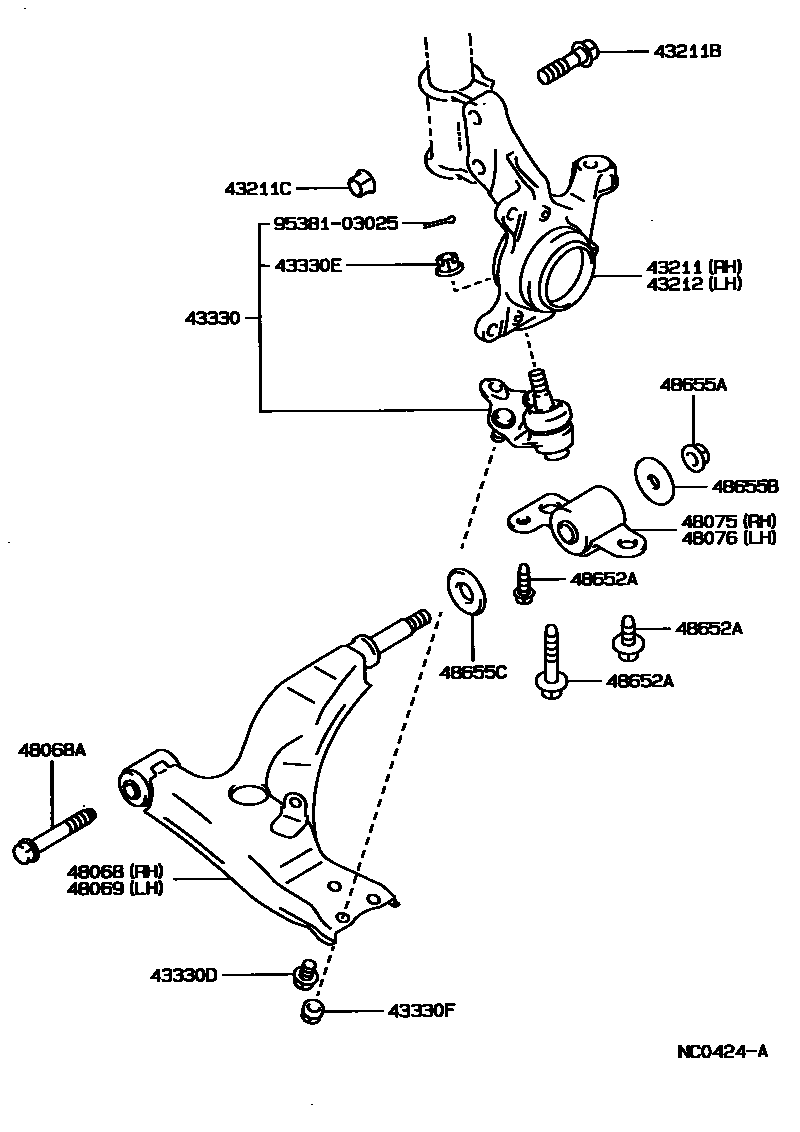

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W(14INCHES DISC WHEEL) & W(POWER STEERING)
W(POWER STEERING)
COLD SPEC(NORTHERN EUROPE) & W(14INCHES DISC WHEEL);W(14INCHES DISC WHEEL) & W(POWER STEERING)
W(*66 & 13INCHES DISC WHEEL)
W(*66 & 13INCHES DISC WHEEL & POWER STEERING)
COLD SPEC(NORTHERN EUROPE) & W(*66 & 13INCHES DISC WHEEL & POWER STEERING);W(*66 &13INCHES DISC WHEEL & POWER STEERING)
W(*66 & 14INCHES DISC WHEEL)
W(*66)
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
W(POWER STEERING)
43212KNUCKLE, STEERING, LH
W(POWER STEERING)
W(*66 & 13INCHES DISC WHEEL)
COLD SPEC(NORTHERN EUROPE) & W(*66 & 13INCHES DISC WHEEL & POWER STEERING);W(*66 &13INCHES DISC WHEEL & POWER STEERING)
W(*66 & 14INCHES DISC WHEEL)
W(*66 & 13INCHES DISC WHEEL & POWER STEERING)
W(*66)
43330JOINT ASSY, LOWER BALL, FRONT
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48075BRACKET SUB-ASSY, LWR ARM, NO,1
48076BRACKET SUB-ASSY, LWR ARM, NO.2
48652ABOLT(FOR FRONT LOWER ARM BRACKET)
*10-1.25PX25-20
*12-1.25PX68-30
*12-1.25PX33-27
48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)
48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)
9538103025
main95381-03025
18 parts on this diagram · 1 diagram in section
