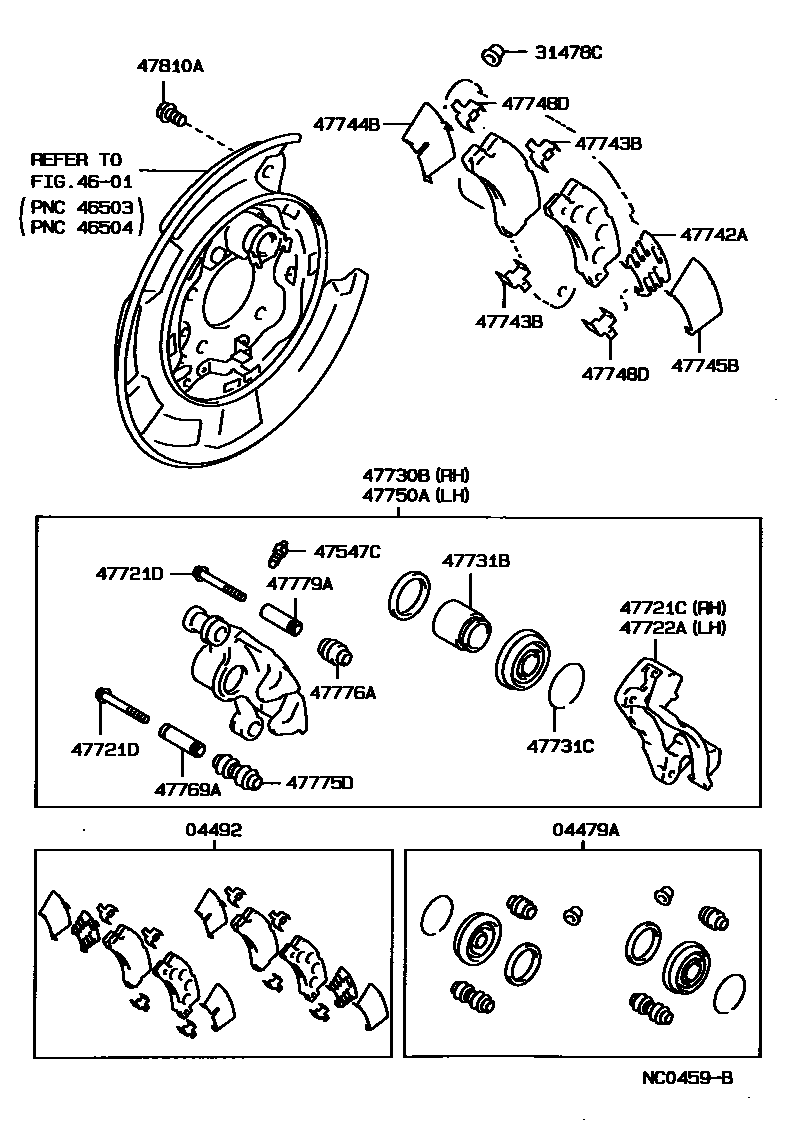

REAR DISC BRAKE CALIPER & DUST COVER

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090i198712-199203

04492PAD KIT, DISC BRAKE, REAR

main04492-20021i198712-199106

sub04466-20070

main04492-20022i199106-199203

sub04466-20060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i198712-199203

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i198712-199203

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20130i198712-199203

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098i198712-199203

*8-1.25PX56-15

main90119-08431i198712-199203

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20130i198712-199203

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20230i198712-199203

47731BPISTON, REAR DISC BRAKE

main47731-20110i198712-199203

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45001i198712-199203

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031i198712-199106

main47742-32090i199106-199203

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12060i198712-199203

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12070i198712-198805

sub47744-12071

main47744-12071i198805-199203

sub47744-12080

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030i198712-199106

main47745-32090i199106-199203

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12110i198712-199203

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20220i198712-199203

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010i198712-199203

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010i198712-199203

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010i198712-199203

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010i198712-199203

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379i198712-199203

22 parts on this diagram · 2 diagrams in section
