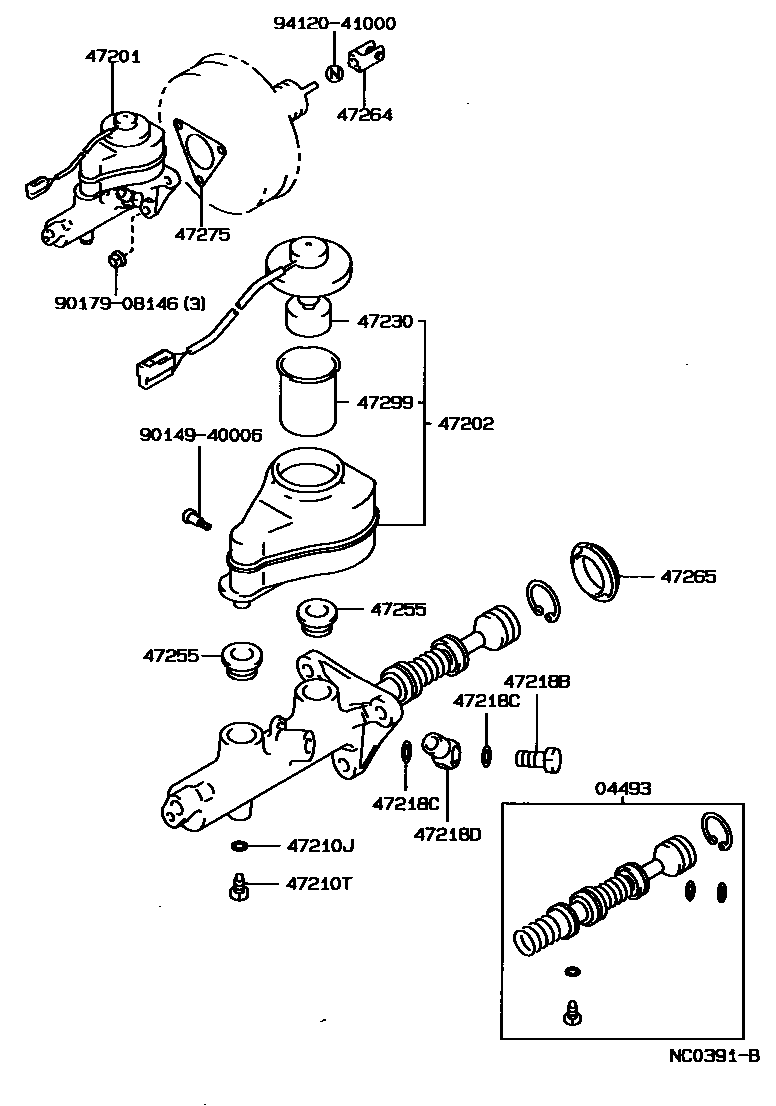

BRAKE MASTER CYLINDER

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0004 1 0005 1W(ANTI-LOCK BRAKE SYSTEM)

04493CYLINDER KIT, BRAKE MASTER

main04493-16040iAT171..RHD..SED198901-198911

SINGAPORE SPEC

sub04493-20210

main04493-20170iST171..GL198712-199203

W(*66)

main04493-32040iAT171,CT170,ST171198712-199211

sub04493-33030

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12600iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main47201-20430iST171..RHD198712-199203

main47201-20480iAT171..RHD..(LB,SED)..GL198712-199203

W(*66)

main47201-20550iAT171,CT170,ST171..LHD198712-199211

main47201-20610iST171..LHD..GL198712-199203

W(*66)

main47201-32140iAT171,CT170..RHD198712-199211

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20320iST171..RHD198712-199203

main47202-20350iST171..RHD198712-199203

W(*66)

main47202-32070iAT171,CT170..RHD198712-199211

main47220-12060iAT171,CT170,ST171..LHD198712-199211

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT171,CT170,ST171198712-199211

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iST171..GL198712-199203

W(*66)

main90109-06077iAT171,CT170,ST171198712-199211

47218BBOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET)

main90401-10023iST171..RHD198712-199203

47218CGASKET(FOR MASTER CYLINDER FLUID OUTLET)

main90430-10074iST171..RHD198712-199203

47218DUNION(FOR MASTER CYLINDER FLUID OUTLET)

main90405-10073iST171..RHD198712-199203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iAT171,CT170,ST171..LHD198712-199211

main84460-12070iST171..RHD198712-199203

main84460-12070iAT171..RHD..(LB,SED)..GL198808-199203

W(*66 & 13INCHES DISC WHEEL)

main84460-20110iAT171,CT170..RHD198712-199211

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAT171,CT170,ST171198712-199211

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAT171,CT170,ST171198712-199211

main47264-20040iST171..GL198712-199203

W(*66)

47265BOOT, MASTER CYLINDER

main47265-20050iAT171,CT170,ST171198712-199211

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT171,CT170,ST171198712-199211

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iAT171,CT170,ST171..LHD198712-199211

main47299-32010iAT171,CT170,ST171..RHD198712-199211

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

17 parts on this diagram · 4 diagrams in section
