PARKING BRAKE & CABLE

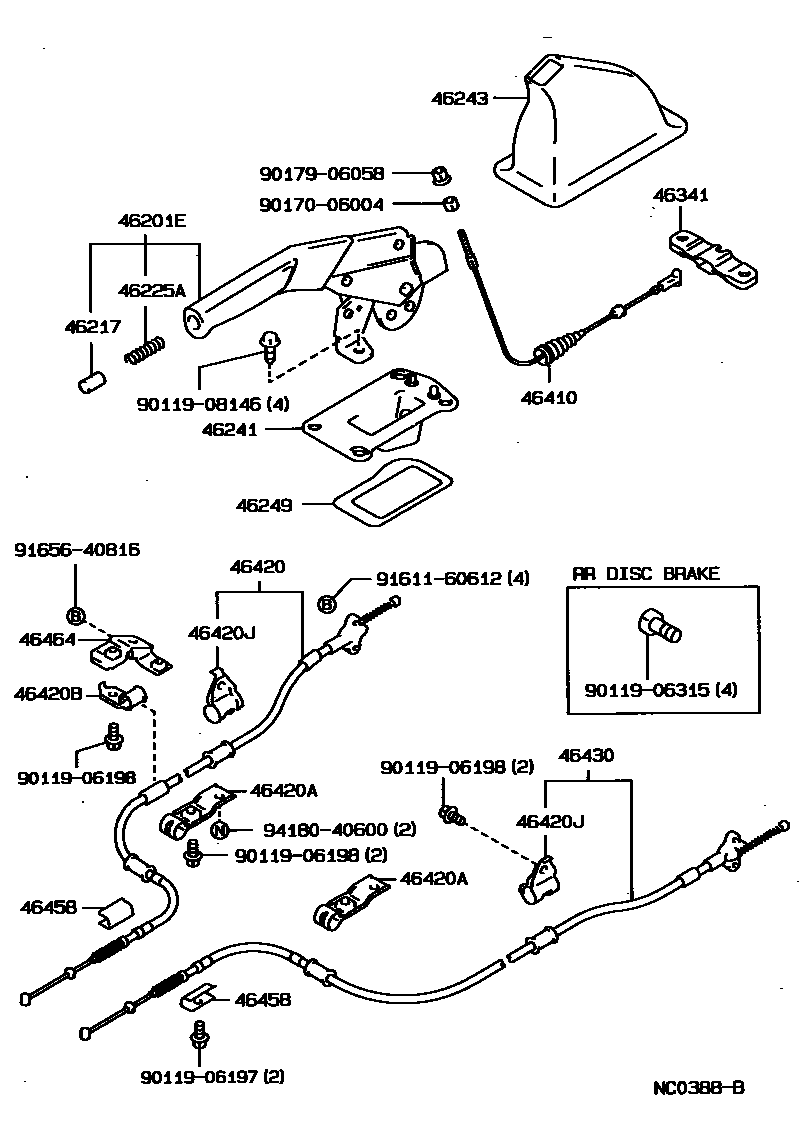

Parts diagram
46201ELEVER SUB-ASSY, PARKING BRAKE
main46201-20190-03i198712-198801
W(*66 & 14INCHES DISC WHEEL),GRAY,TRIM1#
sub46201-20191
main46201-20190-04i198712-198801
W(*66 & 14INCHES DISC WHEEL),BLUE,TRIM8#
sub46201-20191
main46201-20190-06i198712-198801
W(*66 & 14INCHES DISC WHEEL),SABLE,TRIM4#
sub46201-20191
main46201-20191-03i198901-198911
SINGAPORE SPEC,GRAY,TRIM1#
sub46201-20191
main46201-20191-03i198801-199203
W(*66 & 14INCHES DISC WHEEL),GRAY,TRIM1#
sub46201-20191
main46201-20191-04i198901-198911
SINGAPORE SPEC,BLUE,TRIM8#
sub46201-20191
main46201-20191-04i198801-198911
W(*66 & 14INCHES DISC WHEEL),BLUE,TRIM8#
sub46201-20191
main46201-20191-06i198901-198911
SINGAPORE SPEC,SABLE,TRIM4#
sub46201-20191
main46201-20191-06i198801-199203
W(*66 & 14INCHES DISC WHEEL),SABLE,TRIM4#
sub46201-20191
main46201-20191-14i198911-199203
W(*66 & 14INCHES DISC WHEEL),DARK BLUE,TRIM8#
sub46201-20191
main46201-20200-03i198712-198801
GRAY,TRIM1#
sub46201-20201
main46201-20200-04i198712-198801
BLUE,TRIM8#
sub46201-20201
main46201-20200-06i198712-198801
SABLE,TRIM4#
sub46201-20201
main46201-20201-03i198801-199211
GRAY,TRIM1#
sub46201-20201
main46201-20201-04i198801-198911
BLUE,TRIM8#
sub46201-20201
main46201-20201-06i198801-199203
SABLE,TRIM4#
sub46201-20201
main46201-20201-14i198911-199211
DARK BLUE,TRIM8#
sub46201-20201
46217KNOB, PARKING BRAKE RELEASE ROD
main46217-12020-03i198801-199009
SHADOW GRAY,TRIM1#
sub46217-12020
sub46217-16030
main46217-12020-06i198801-199203
SABLE,TRIM4#
sub46217-12020
sub46217-16030
main46217-12020-24i198911-199110
DARK BLUE,TRIM8#
sub46217-12020
sub46217-16030
main46217-12020-J0i198801-198911
DARK BLUE,TRIM8#
sub46217-12020
sub46217-16030
main46217-12020-J1i199110-199211
DARK BLUE,TRIM8#
sub46217-12020
sub46217-16030
main46217-20020-43i198712-198801
SHADOW GRAY,TRIM1#
sub46217-20020
main46217-20020-46i198712-198801
SABLE,TRIM4#
sub46217-20020
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
main90501-10069i198712-199211
46241BOOT, PARKING BRAKE LEVER
main46241-20030i198712-199211
main46241-20050i198901-198911
SINGAPORE SPEC
main46241-20050i198712-199203
W(*66 & 14INCHES DISC WHEEL)
46243COVER, PARKING BRAKE LEVER
main46243-20030-03i198712-199211
GRAY,TRIM1#
sub46243-20030
main46243-20030-04i198712-198911
BLUE,TRIM8#
sub46243-20030
main46243-20030-06i198712-199203
SABLE,TRIM4#
sub46243-20030
main46243-20030-14i198911-199211
DARK BLUE,TRIM8#
sub46243-20030
46249SHIELD, PARKING BRAKE HOLE
main46249-20020i198712-199211
46341EQUALIZER, PARKING BRAKE
main46341-20040i198712-199211
46410CABLE ASSY, PARKING BRAKE, NO.1
main46410-20300i198911-199211
main46410-20300i198809-198911
W(*66)
main46410-20310i198712-198809
sub46410-20300
main46410-20400i199110-199203
W(*66)
46420CABLE ASSY, PARKING BRAKE, NO.2
main46420-29035i198712-199211
main46420-29045i198712-199203
W(*66 & 14INCHES DISC WHEEL)
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
main90949-01331i198712-198906
RH
sub90949-01605
main90949-01475i198712-198909
LH
main90949-01605i198906-198909
RH
main90949-01605i198909-199211
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
main90949-01606i198712-199211
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
main90949-01604i198712-199211
46430CABLE ASSY, PARKING BRAKE, NO.3
main46430-29045i198712-199211
main46430-29055i198712-199203
W(*66 & 14INCHES DISC WHEEL)
46458RETAINER, CABLE
main46458-28010i199109-199211
main46458-50010i198712-199109
46464PLATE, CABLE CLAMP SUPPORT
main46464-32020i198712-199211
9011906197
main90119-06197
9011906198
main90119-06198
9011906315
main90119-06315
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
9161160612
main91611-60612
9165640816
main91656-40816
9418040600
main94180-40600

24 parts on this diagram · 2 diagrams in section
