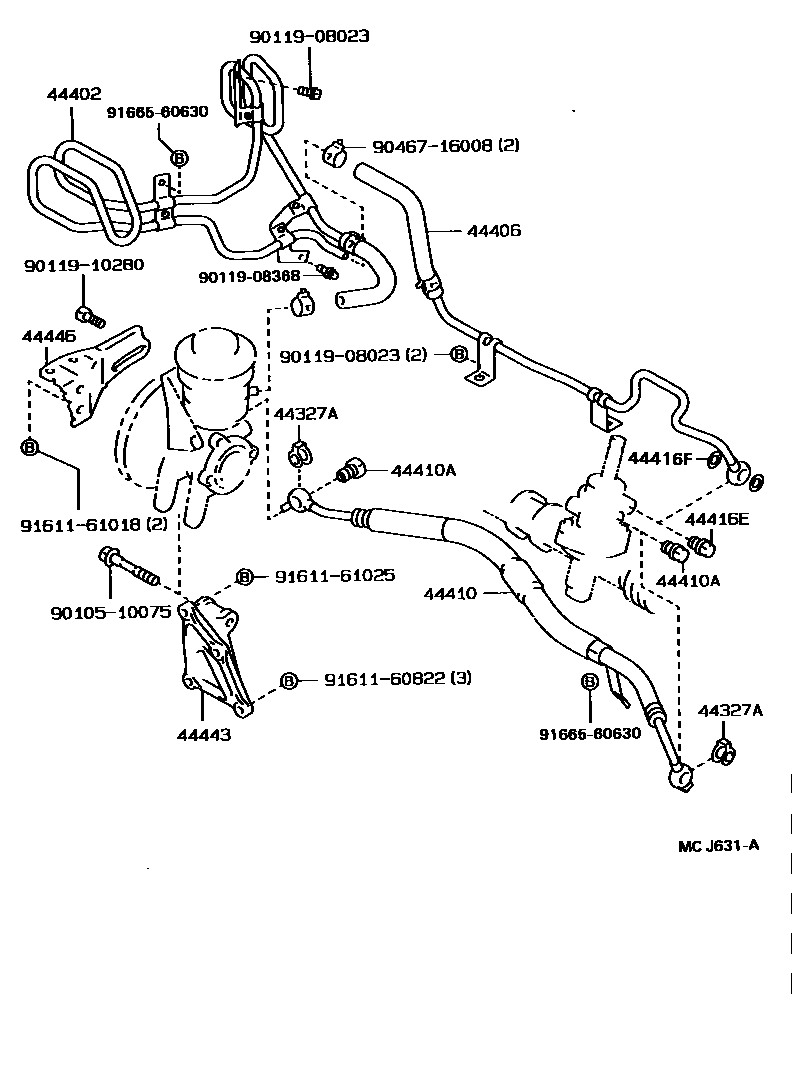

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT171..RHD..SED198712-199211

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20220iAT171..RHD..WG198712-198808

main44402-20221iAT171..WG..GL;AT171..RHD..XL198808-199211

main44402-20230iAT171..RHD..(LB,SED)..GL198712-199203

W(*66 & 13INCHES DISC WHEEL)

main44402-20240iAT171..LHD..GL198712-198808

main44402-20241iAT171..LHD..GL198808-199105

sub44402-20242

main44402-20242iAT171..LHD..GL..CBR199105-199211

main44402-20250iAT171..GL..EFI198712-199102

W(*66 & 14INCHES DISC WHEEL)

sub44402-20251

main44402-20250iAT171..LHD..GL..CBR198712-199105

W(*66 & 13INCHES DISC WHEEL)

sub44402-20251

main44402-20251iAT171..LHD..GL..CBR199105-199203

W(*66 & 13INCHES DISC WHEEL)

main44402-20260iST171..RHD198712-199203

main44402-20280iST171..LHD198712-199203

main44402-20290iST171..LHD..GL198808-199203

W(*66)

main44402-20290iST171..LHD..GL198712-198808

W(*66 & 14INCHES DISC WHEEL)

main44402-20320iAT171..XL..EFI198806-198808

main44402-20321iAT171..XL..EFI198808-198911

main44402-20360iAT171..4FC..EFI198911-199105

sub44402-20361

main44402-20361iAT171..4FC..EFI199105-199211

main44402-20370iAT171..5F..XL..EFI198911-199105

ANNEX 23

sub44402-20371

main44402-20371iAT171..GL..EFI199105-199211

ANNEX 23

44406TUBE SUB-ASSY, RETURN

main44406-20090iAT171..RHD..SED198905-198911

SINGAPORE SPEC

main44406-20100iAT171..RHD198712-198808

main44406-20101iAT171..RHD..(LB,WG)198808-199211

main44406-20110iAT171..LHD198712-198808

main44406-20111iAT171..LHD198808-199102

sub44406-20112

main44406-20112iAT171..LHD199102-199211

main44406-20160iST171..RHD198712-199203

main44406-20170iST171..RHD198712-199203

W(*66)

main44406-20180iST171..LHD198712-199203

main44406-20190iST171..LHD..GL198712-199203

W(*66)

44410TUBE ASSY, PRESSURE FEED

main44410-20380iAT171..RHD..(LB,WG)198712-199010

sub44410-20530

main44410-20381iAT171..RHD199012-199211

sub44410-20531

main44410-20390iAT171..LHD198712-199010

sub44410-20391

main44410-20391iAT171..LHD199010-199211

main44410-20400iCT170..RHD198712-198911

sub44410-20650

main44410-20430iST171..RHD198712-199203

sub44410-20520

main44410-20650iCT170..RHD198911-199211

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iCT170;AT171..RHD..(LB,WG)198905-198911

main90401-16008iAT171,CT170..RHD198712-199211

VANE PUMP SIDE

main90401-16013iAT171..LHD198712-199211

GEAR SIDE

main90401-16013iCT170..LHD198911-199211

GEAR SIDE(PRESSURE)

main90401-17002iCT170..LHD198712-198911

sub96341-11703

main90401-17002iCT170..LHD198911-199211

GEAR SIDE(RETURN)

sub96341-11703

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20110iCT170,ST171..RHD198712-199211

sub44416-44010

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-17002iAT171,ST171..LHD198712-199211

sub96341-11703

44416FGASKET(FOR RETURN TUBE)

main90430-17005iAT171,ST171..LHD198712-199211

44443BRACKET, PUMP

main44443-12050iAT171198712-199211

main44443-20050iST171198712-199203

44446STRUT, ADJUSTING

main44446-12040iAT171198712-199211

9010510075

main90105-10075

9011908023

main90119-08023

9011908368

main90119-08368

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166560630

main91665-60630

19 parts on this diagram · 6 diagrams in section
