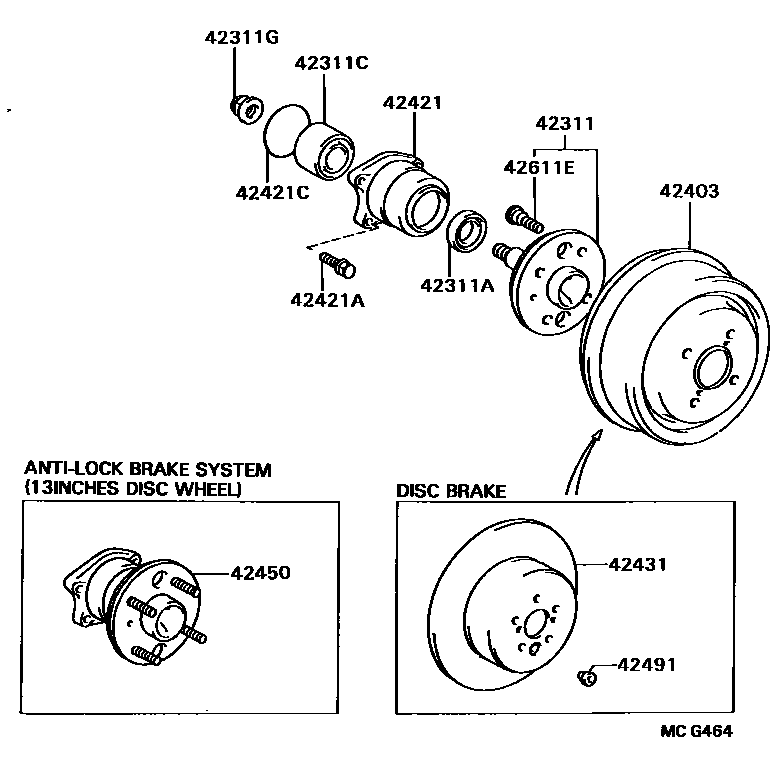

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-20080iAT171;CT170..WG¥16,200198712-199211

sub42410-20130¥24,300

main42301-20080iAT171..RHD..SED¥16,200199010-199203

SEVERE USAGE PACKAGE

sub42410-20130¥24,300

main42301-32020iST171..GL¥14,200198712-199203

W(*66 & 14INCHES DISC WHEEL)

sub42410-32050¥24,400

main42301-32031iAT171..GL..EFI¥13,600198712-199203

W(14INCHES DISC WHEEL)

sub42410-20140¥24,300

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iCT170..LHD..SED;CT170..RHD..(LB,SED)¥270199010-199203

SEVERE USAGE PACKAGE

main90311-42018iAT171,CT170,ST171¥270198712-199211

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT171,CT170,ST171¥6,900198712-199211

main90369-30044iCT170..RHD..(LB,SED)¥6,900199010-199203

SEVERE USAGE PACKAGE

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003iAT171,CT170,ST171¥510198712-198809

main90179-20017iAT171..GL..EFI¥410198807-198809

W(14INCHES DISC WHEEL)

main90179-20017iAT171,CT170,ST171¥410198809-199211

main90179-20017iCT170..RHD..(LB,SED)¥410199010-199203

SEVERE USAGE PACKAGE

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080iAT171,CT170,ST171¥9,400198712-199211

main42431-32020iAT171,ST171..GL..EFI¥9,400198712-199203

W(14INCHES DISC WHEEL)

42421CASE, REAR AXLE BEARING

main42421-20020iCT170..RHD..(LB,SED)¥7,500199010-199203

SEVERE USAGE PACKAGE

sub42409-20010¥16,100

main42421-20020iAT171..(LB,SED)..GL¥7,500198911-199203

W(*66 & 13INCHES DISC WHEEL)

sub42409-20010¥16,100

main42421-20020iAT171,CT170,ST171¥7,500198712-199211

sub42409-20010¥16,100

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iCT170..LHD..SED;CT170..RHD..(LB,SED)¥200199010-199203

SEVERE USAGE PACKAGE

main90105-10124iCT170,ST171..LB,SED¥200198712-199211

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iAT171,CT170,ST171¥350198712-199211

sub90301-63006¥350

main90301-63003iAT171..RHD..SED¥350199010-199203

SEVERE USAGE PACKAGE

sub90301-63006¥350

42431DISC, REAR

main42431-20090iST171..GL¥10,200198712-199203

sub42431-20160¥10,200

42450HUB & BEARING ASSY, REAR AXLE

main42450-20010iAT171,ST171..(LB,SED)..GL¥20,900198712-199203

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST171..GL¥140198712-199203

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iCT170,ST171..LB,SED¥230198712-199203

W(14INCHES DISC WHEEL)

main90942-02047iAT171,CT170,ST171¥230198712-199211

main90942-02047iAT171..RHD..SED¥230199010-199011

SEVERE USAGE PACKAGE

12 parts on this diagram · 1 diagram in section
