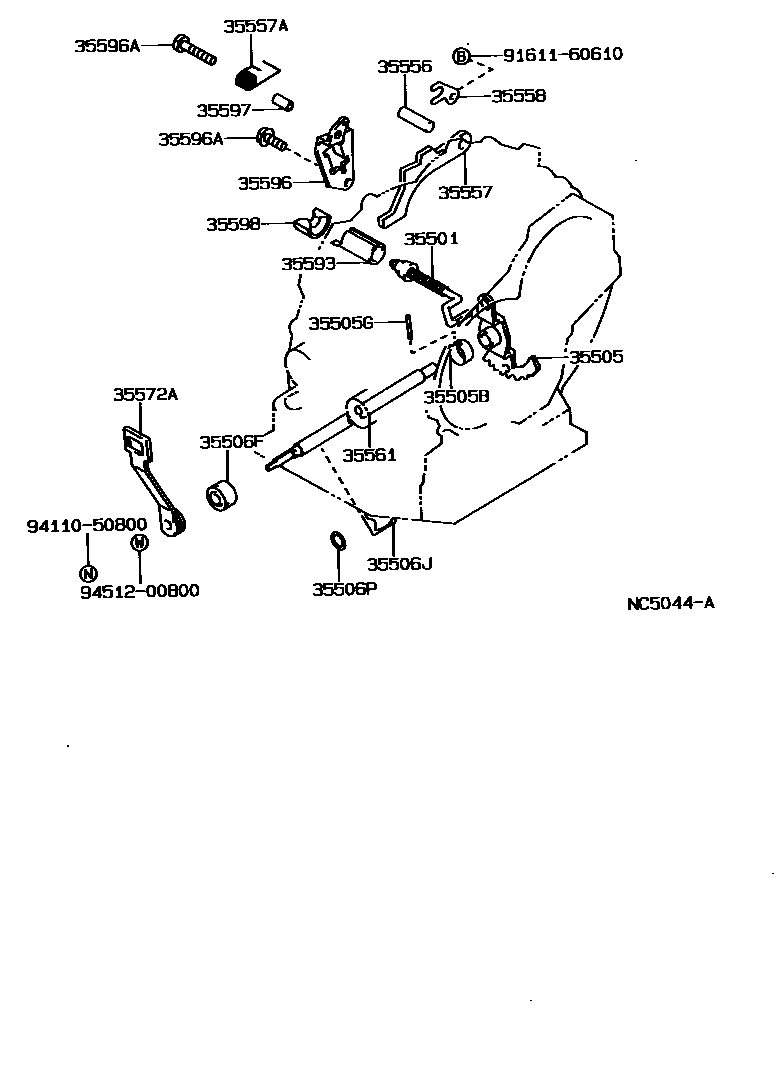

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35558CLAMP, PAWL SHAFT
35561SHAFT, MANUAL VALVE LEVER
35572ALEVER, TRANSMISSION CONTROL SHAFT
35593SLEEVE, CAM GUIDE
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX17-13.5
35597SLEEVE, SPRING GUIDE
35598SLEEVE, PARKING LOCK
9161160610
main91611-60610
9411050800
main94110-50800
9451200800
main94512-00800
21 parts on this diagram · 3 diagrams in section
