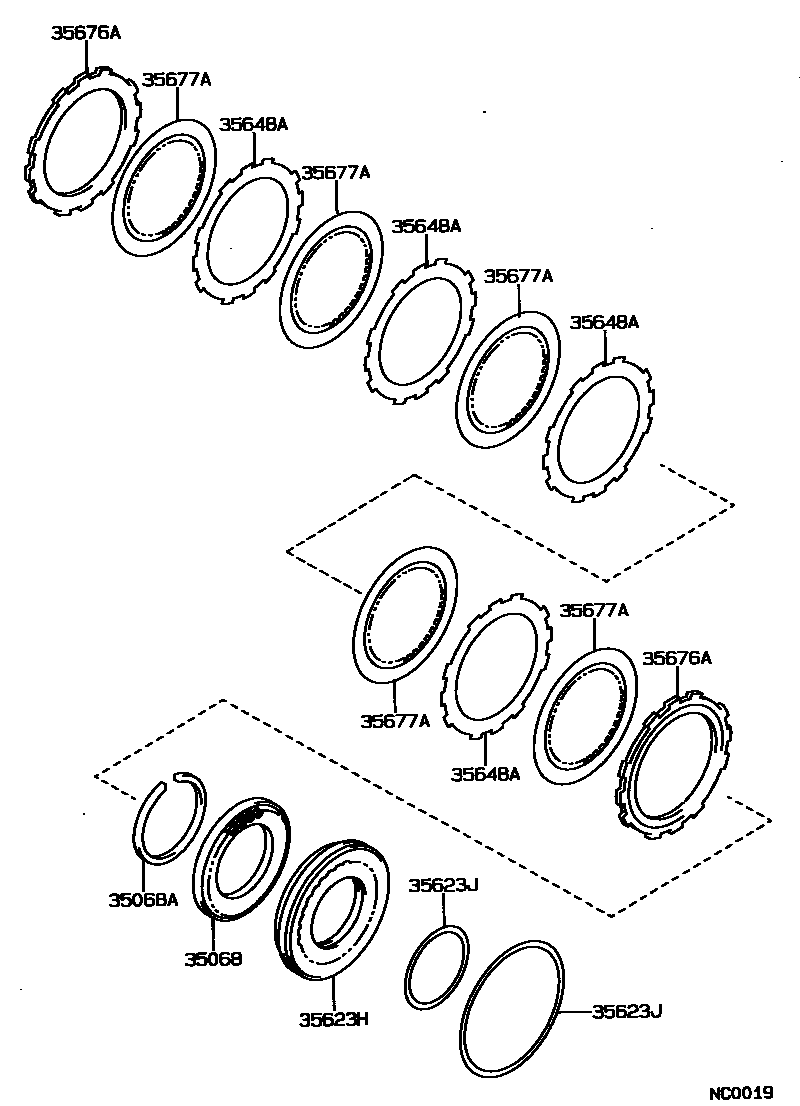

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iAT171,ST171..4FC198712-199203

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAT171,ST171..4FC198712-199203

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12010iAT171..4FC..CBR198712-199203

main35623-20010iAT171..4FC..EFI198911-199003

main35623-32010iST171..4FC198712-199203

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAT171,ST171..4FC198712-199203

INNER

main90301-99022iST171..4FC;AT171..4FC..CBR198712-199203

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iAT171..4FC..CBR198712-199203

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iST171..4FC;AT171..4FC..CBR198712-199203

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12030iAT171..4FC..CBR198712-199003

sub35677-20070

main35677-12040iAT171..4FC..CBR199003-199203

sub35677-12060

main35677-32040iST171..4FC198712-199203

7 parts on this diagram · 1 diagram in section
