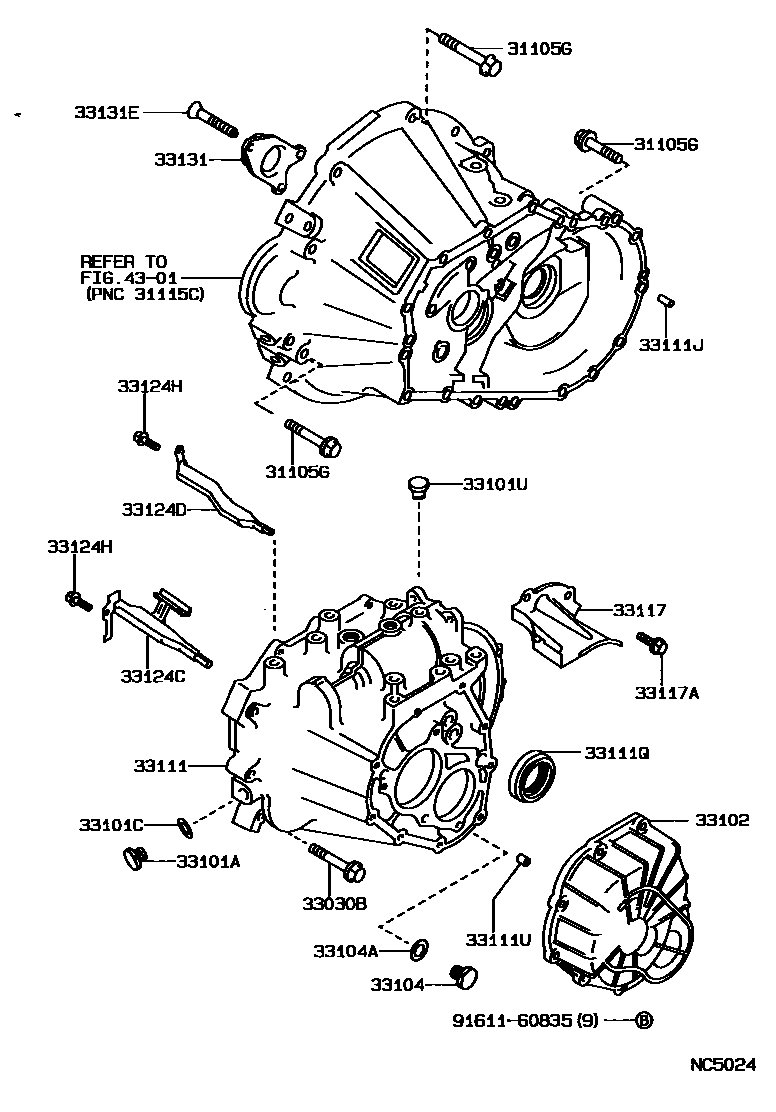

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52 0002 1S50,S53

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT170,ST171..5F198712-199211

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT171,CT170,ST171..5F198712-199211

*10-1.25PX43-26

main90119-12042iAT171..5F198712-199211

*12-1.25PX75-30

main90119-12168iCT170,ST171..5F198712-199211

*12-1.25PX55-30

main91611-61025iAT171..5F198712-199211

*10-1.25PX25-25

sub91612-61025

main91651-41022iST171..5F198712-199203

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCT170,ST171..5F198712-199211

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAT171..5F198712-199211

*8-1.25PX51-28

sub90105-08353

main90105-08086iAT171..5F198904-199211

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCT170,ST171..5F198712-199003

main90341-18006iAT171..5F198712-199211

main90341-18033iCT170,ST171..5F199003-199211

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT171,CT170,ST171..5F198712-199211

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iAT171,CT170,ST171..5F198712-199203

main90930-03133iCT170,ST171..5F199106-199211

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAT171..5F198712-199105

sub33102-12021

main33102-12021iAT171..5F199105-199211

main33102-32011iCT170,ST171..5F198712-199004

sub33102-32012

main33102-32012iCT170,ST171..5F199004-199205

main33102-33020iCT170199205-199211

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT171,CT170,ST171..5F198712-199211

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT171,CT170,ST171..5F198712-199211

33111CASE, MANUAL TRANSMISSION

main33111-16040iAT171..5F198712-199211

sub33111-16070

sub90109-12073

main33111-20140iCT170,ST171..5F198906-198910

sub33111-20141

main33111-20141iCT170,ST171..5F198910-199102

sub33111-33020

main33111-32014iCT170,ST171..5F198712-198906

sub33111-20140

main33111-33020iCT170,ST171..5F199102-199205

sub33111-33030

sub33124-32020

sub33214-33020

sub33261-33010

sub90384-14005

sub90384-15002

main33111-33030iCT170199205-199211

sub33111-33040

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCT170,ST171..5F198712-199211

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT171..5F198712-199108

sub90311-34017

main90311-34017iAT171..5F199202-199211

sub90311-34028

main90311-34018iAT171..5F199108-199202

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT171..5F198712-199211

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAT171..5F198712-199103

sub33117-16010

main33117-16010iAT171..5F199103-199211

main33117-32011iCT170,ST171..5F198712-199211

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT171,CT170,ST171..5F198712-199211

sub91641-H0820

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT171..5F198712-199211

main33124-32011iCT170,ST171..5F198712-199004

main33124-32012iCT170,ST171..5F199004-199205

main33124-33010iCT170199205-199211

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT171..5F198712-199211

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAT171..5F198712-199203

sub91611-G0820

main91651-60618iCT170,ST171..5F198712-199211

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT171..5F198712-199211

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT171..5F198712-199211

4301

9161160835

main91611-60835
