TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

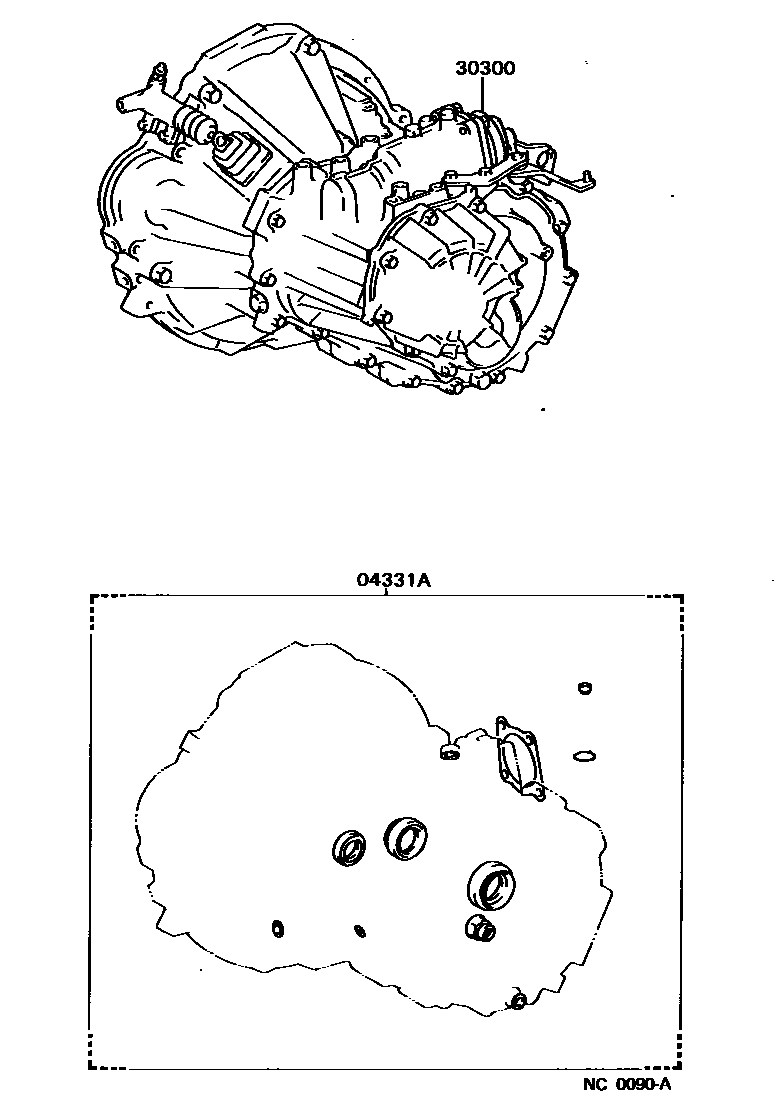

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i198712-199211
main04331-32010i198712-198804
main04331-32011i198804-199211
30300TRANSAXLE ASSY, MANUAL
main30300-12420i198712-199211
sub30300-12421
main30300-20590i198712-199005
sub30300-2B040
main30300-20600i198712-199005
sub30300-2B050
main30300-20620i198712-199005
sub30300-20880
main30300-20880i199005-199201
sub30300-20881
sub11355-64051
sub90119-06670
main30300-20881i199201-199211
main30300-2B040i199005-199201
sub30300-2B041
sub11356-74030
sub90119-06670
main30300-2B041i199201-199203
main30300-2B050i199005-199201
sub30300-2B051
sub11356-74030
sub90119-06670
main30300-2B051i199201-199203

2 parts on this diagram · 2 diagrams in section
