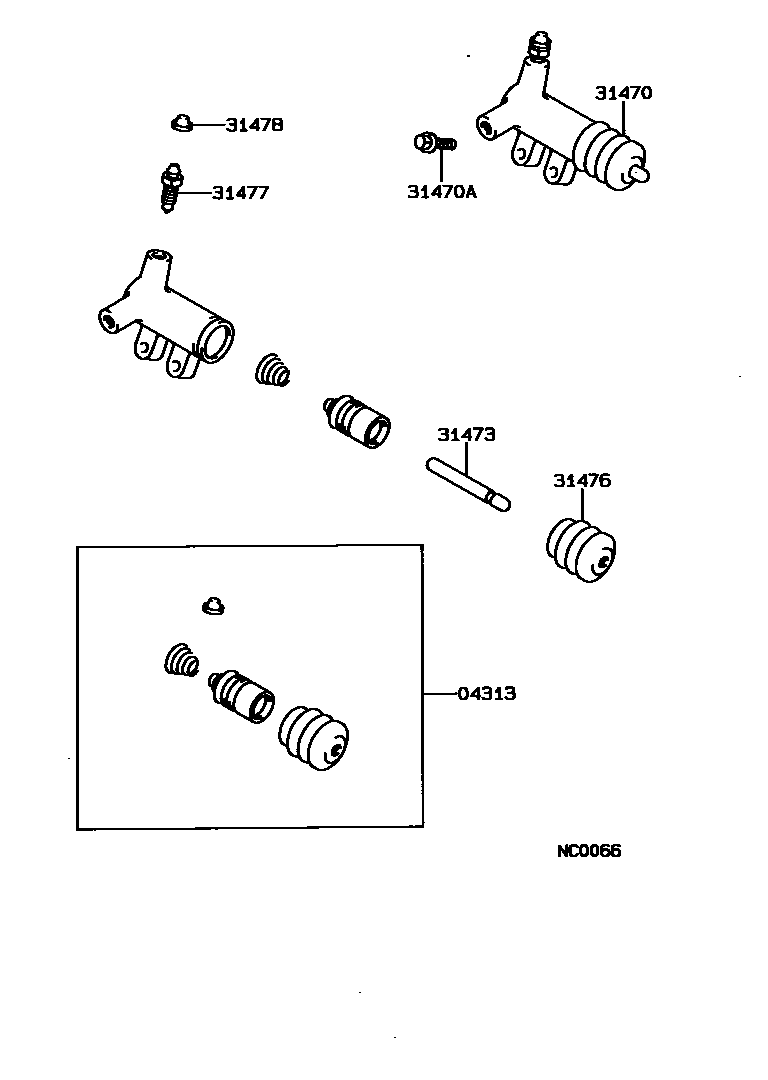

CLUTCH RELEASE CYLINDER

0001 1C52 0002 1S50,S53

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAT171..5F¥800198805-199211

main04313-22020iAT171,CT170,ST171..5F¥1,040198712-198902

sub04313-12030¥800

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12090iAT171..5F¥7,400198712-198805

sub31470-12091¥7,500

main31470-12091iAT171..5F¥7,500198805-198811

sub31470-12092¥7,100

main31470-12092iAT171..5F¥7,100198811-199202

sub31470-12093¥7,300

main31470-32020iCT170¥7,200198712-198811

sub31470-32021¥7,500

main31470-32021iCT170¥7,500198811-198902

sub31470-32022¥7,400

main31470-32022iCT170¥7,400198902-199211

sub31470-32023¥7,400

main31470-32030iST171..5F¥7,200198712-198811

sub31470-32031¥7,500

main31470-32031iST171..5F¥7,500198811-198902

sub31470-32032¥7,400

main31470-32032iST171..5F¥7,400198902-199203

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT171..5F¥170198712-199208

*8-1.25PX22-17.1

main91611-60825iCT170,ST171..5F¥140198712-199211

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAT171,CT170,ST171..5F¥450198712-199211

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT171,CT170,ST171..5F¥230198712-199211

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-12010iAT171,CT170,ST171..5F¥350198811-198902

sub47547-20010¥200

main47547-12010iCT170,ST171..5F¥180198712-198811

main47547-20010iAT171..5F¥200198712-199211

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT171,CT170,ST171..5F¥160198712-199211

7 parts on this diagram · 2 diagrams in section
