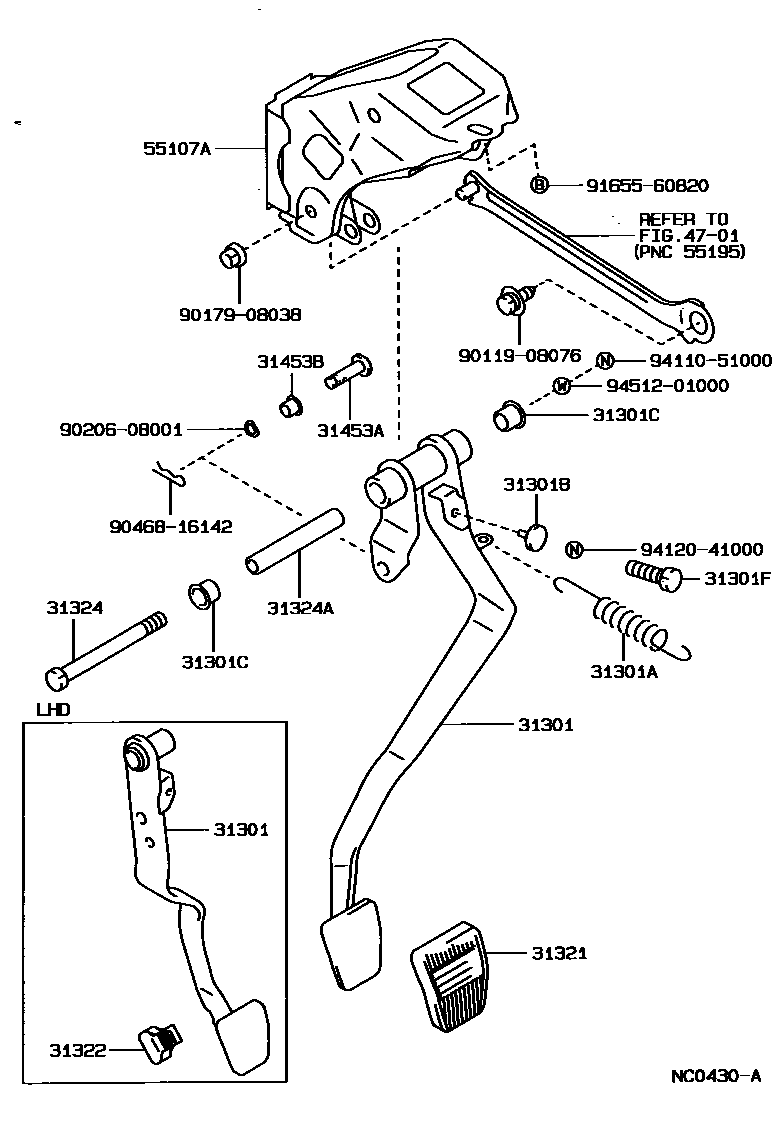

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20190iAT171,CT170,ST171..LHD..5F198712-199211

main31301-20260iAT171,CT170,ST171..RHD..5F198712-199211

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14029iAT171,CT170,ST171..5F198712-199211

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAT171,CT170,ST171..5F198712-199211

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT171,CT170,ST171..5F198712-199211

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT171,CT170,ST171..5F198712-199211

31321PAD, CLUTCH PEDAL

main31321-14020iAT171,CT170,ST171..5F198712-199211

31322STOPPER, CLUTCH PEDAL

main31322-20010iAT171,CT170,ST171..LHD..5F198712-199211

31324SHAFT, CLUTCH PEDAL

main90101-10015iAT171,CT170,ST171..LHD..5F198712-199211

main90101-10100iAT171,CT170,ST171..RHD..5F198712-199211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT171,CT170,ST171..RHD..5F198712-199211

main90387-10003iAT171,CT170,ST171..LHD..5F198712-199211

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT171,CT170,ST171..5F198712-199211

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT171,CT170,ST171..5F198712-199211

4701

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20230iAT171,CT170,ST171..LHD..5F198712-199211

main55107-20240iAT171,CT170,ST171..RHD..5F198712-199211

9011908076

main90119-08076

9017908038

main90179-08038

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

21 parts on this diagram · 2 diagrams in section
