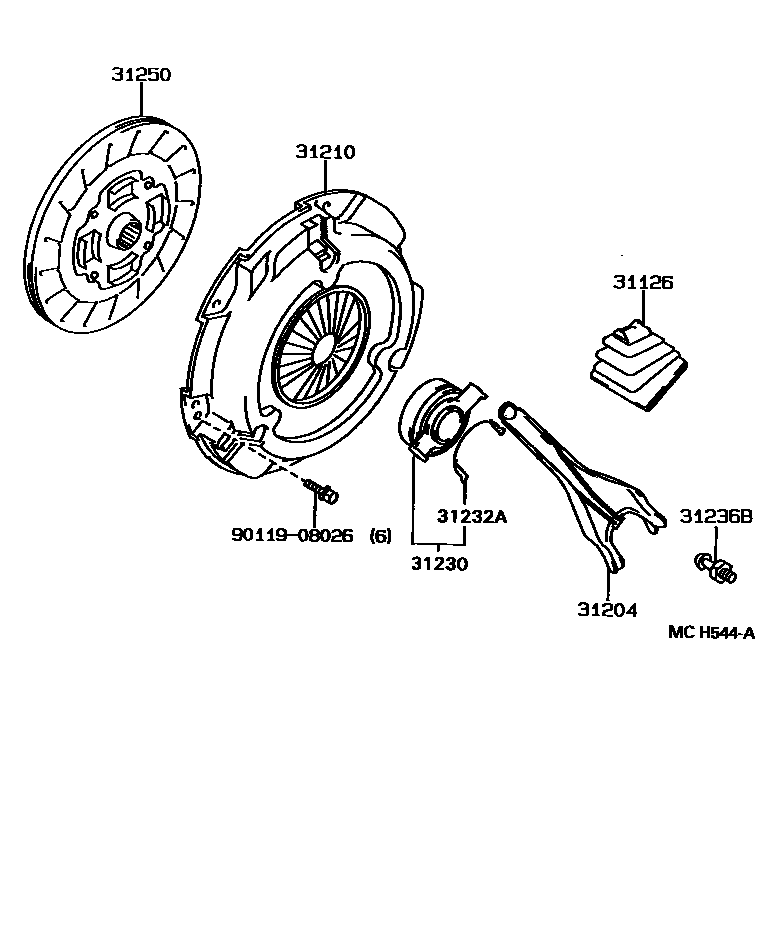

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT171..5F198712-199211

main31126-32010iCT170,ST171..5F198712-199211

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAT171..5F198712-199105

main31204-17010iAT171..5F199105-199211

main31204-20100iCT170,ST171..5F199005-199211

main31204-32010iCT170,ST171..5F198712-199005

31210COVER ASSY, CLUTCH

main31210-12141iAT171..5F198911-199104

sub31210-12190

main31210-12190iAT171..5F199104-199211

sub31210-12191

main31210-16100iAT171..5F198712-198812

sub31210-16101

main31210-16101iAT171..5F198812-198911

sub31210-16102

main31210-32030iCT170198712-198812

sub31210-32120

main31210-32071iST171..5F198712-198808

sub31210-32072

main31210-32072iST171..5F198808-198906

sub31210-32073

main31210-32073iST171..5F198906-199203

sub31210-32074

main31210-32120iCT170198812-198906

sub31210-32121

main31210-32121iCT170198906-199211

sub31210-12320

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iAT171..5F198801-199105

sub31230-16061

main31230-12170iAT171..5F199105-199211

sub31230-12171

main31230-32020iCT170,ST171..5F198712-199005

sub31230-32100

main31230-32060iCT170..GL;CT170..WG;ST171..LB..5F;ST171..LHD..SED..5F;CT170..LHD..(LB,SED)199005-199211

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAT171..5F198712-199105

TYPE 1

main31232-12070iAT171..5F199105-199211

TYPE 8

main31232-16031iAT171..5F198712-199105

TYPE 2

main31232-20020iCT170,ST171..5F199005-199211

TYPE 6

main31232-32010iCT170,ST171..5F198712-199005

TYPE 3

main31232-32020iCT170,ST171..5F198712-199005

TYPE 4

main31232-32030iCT170,ST171..5F198712-199008

TYPE 5

main31232-32050iCT170,ST171..5F199008-199211

TYPE 7

31236BSUPPORT, RELEASE FORK

main31236-12011iAT171..5F198712-199105

main31236-12020iAT171..5F199105-199211

main31236-30030iCT170,ST171..5F198712-199005

main31236-32010iCT170,ST171..5F199005-199211

31250DISC ASSY, CLUTCH

main31250-12155iAT171..5F198911-199006

sub31250-12156

main31250-12156iAT171..5F199006-199104

sub31250-12310

main31250-12163iCT170198712-198801

sub31250-12220

main31250-12200iAT171..LHD..5F198712-198911

sub31250-12201

main31250-12220iCT170198801-199006

sub31250-12260

main31250-12260iCT170199006-199104

sub31250-12280

main31250-12280iCT170199104-199211

sub31250-12281

main31250-12310iAT171..5F199104-199211

sub31250-12380

main31250-32041iST171..5F198712-199112

sub31250-32042

main31250-32042iST171..5F199112-199203

sub31250-20250

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
