EXHAUST GAS RECIRCULATION SYSTEM

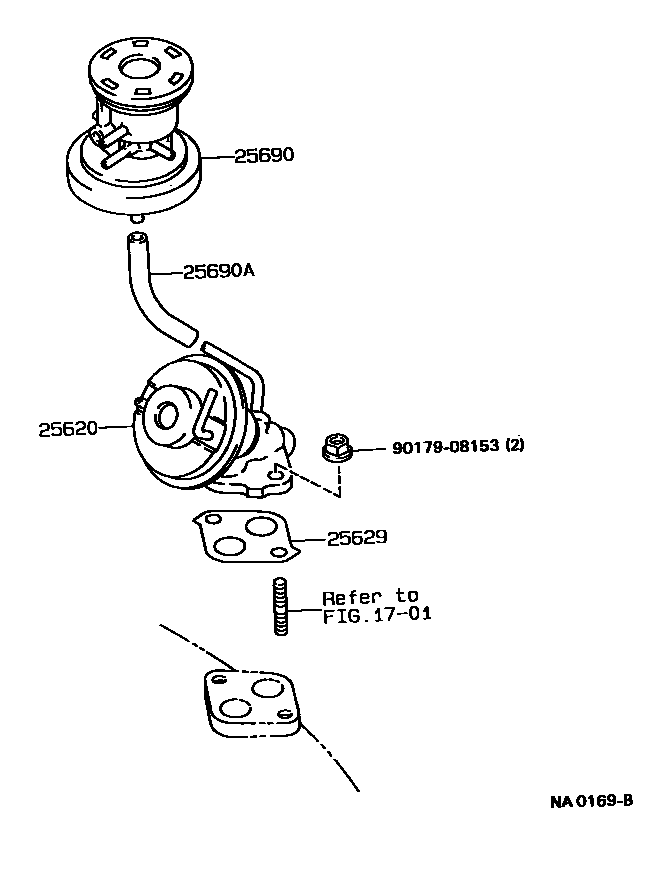

Parts diagram
1701
25620VALVE ASSY, EGR
main25620-15320i198712-198911
ANNEX 25,23
main25620-15330i198911-199211
main25620-16020i198712-198911
ANNEX 25,23
main25620-16050i198712-198911
main25620-16060i198712-198911
main25620-74110i198712-199203
main25620-74120i198712-199203
25629GASKET, EGR VALVE ADAPTER
main25627-16020i198812-199211
main25629-15020i198712-198812
sub25627-16020
25690MODULATOR ASSY, EGR VACUUM
main25870-16050i198712-198911
ANNEX 25,23
main25870-16160i198712-198911
main25870-16170i198712-198911
main25870-16180i198911-199211
main25870-74090i198712-199203
main25870-74100i198712-199203
sub25870-74090
25690AHOSE(FOR EGR VACUUM MODULATOR)
main25695-16050i198911-199211
main90445-11017i198712-198911
main90445-11065i198712-199203
9017908153
main90179-08153

6 parts on this diagram · 3 diagrams in section
