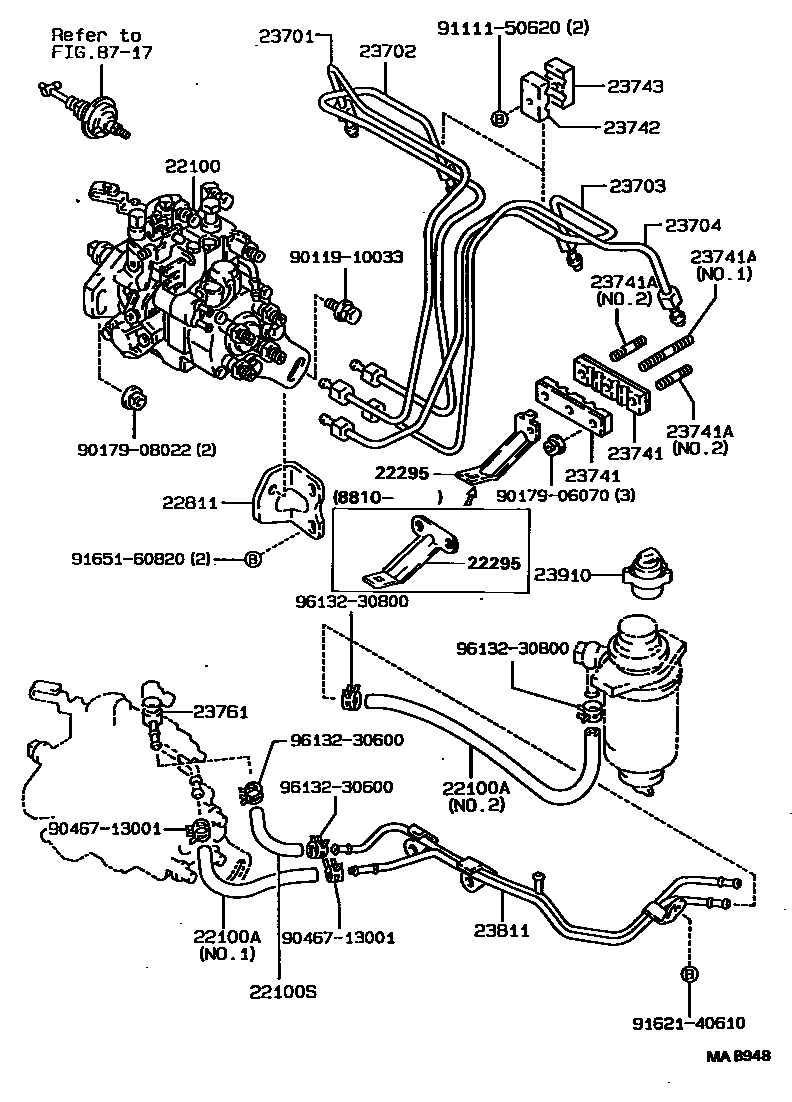

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6A530i2C..CT170198712-199211

main22100-6A540i2C..CT170..LHD198712-199211

COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64140i2C..CT170198712-199211

NO.2

main23273-64030i2C..CT170198712-199211

NO.1

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95333-06020i2C..CT170198712-199203

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64010i2C..CT170198712-198810

sub22295-64011

main22295-64011i2C..CT170198810-199211

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2C..CT170198712-199201

main22811-64020i2C..CT170199201-199211

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64050i2C..CT170198809-199211

main23701-64060i2C..CT170198712-198809

sub23701-64050

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64050i2C..CT170198809-199211

main23702-64060i2C..CT170198712-198809

sub23702-64050

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64050i2C..CT170198712-199211

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64050i2C..CT170198712-199211

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i2C..CT170198712-199211

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2C..CT170198712-199211

NO.1

sub90116-06095

main92122-60622i2C..CT170198712-199211

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i2C..CT170198712-199211

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2C..CT170198712-199211

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64030i2C..CT170198712-199211

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64040i2C..CT170198712-199211

23910HEATER ASSY, FUEL

main23910-64010i2C..CT170198712-199211

8717

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9111150620

main91111-50620

9162140610

main91621-40610

9165160820

main91651-60820

9613230600

main96132-30600

9613230800

main96132-30800

26 parts on this diagram · 2 diagrams in section
