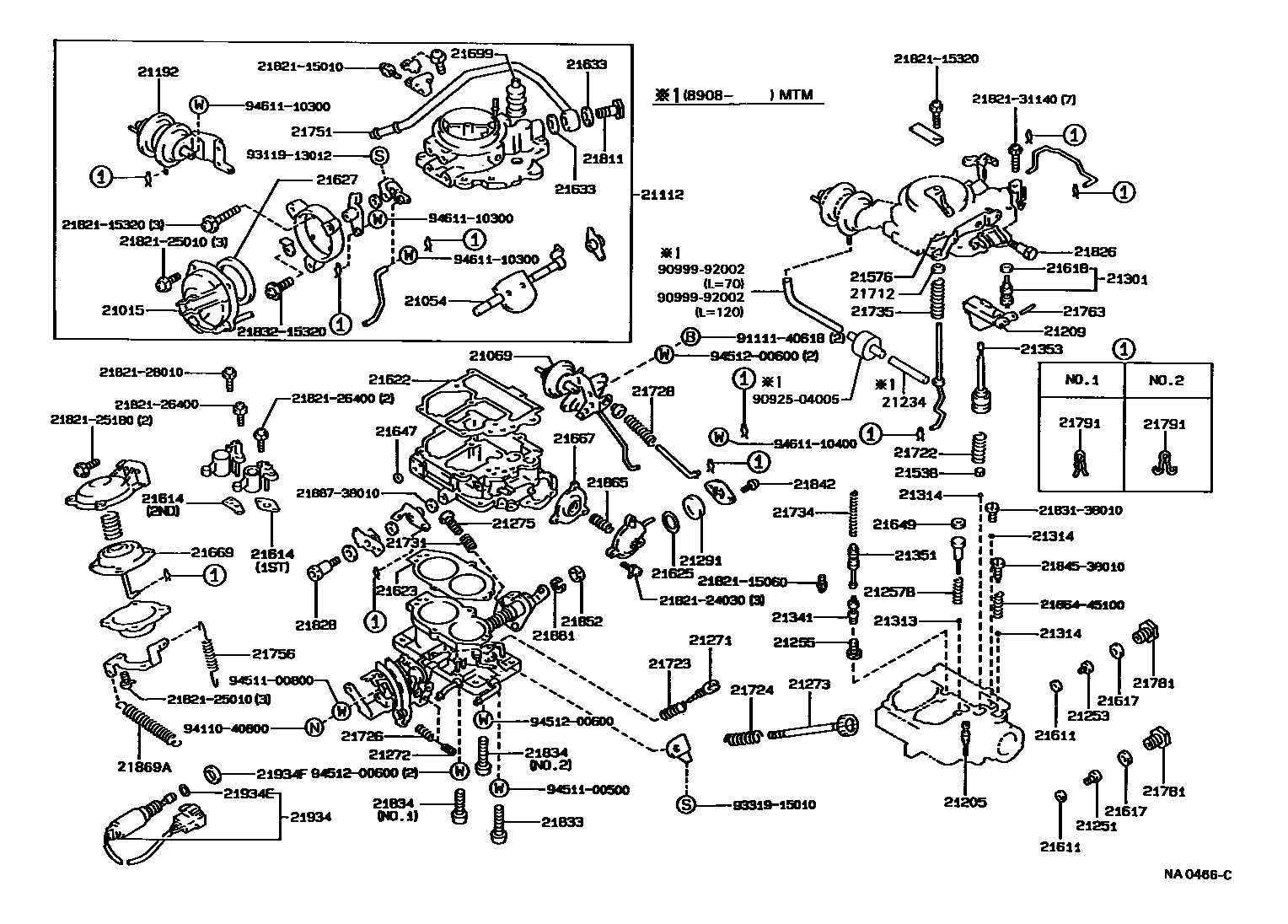

CARBURETOR
21054SHAFT, CHOKE
21069DASH POT SUB-ASSY
21112HORN, AIR
ANNEX 25,23
21192BREAKER
21205JET SUB-ASSY, SLOW
ANNEX 25,23
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
ANNEX 25,23
21253JET, 2ND MAIN
ANNEX 25,23
ANNEX 25,23
21255JET, POWER
ANNEX 25,23
ANNEX 25,23
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
ANNEX 25,23
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341VALVE, POWER
21351PISTON, POWER
21353PLUNGER, PUMP
sub21353-16510
21538RETAINER, BALL CHECK
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21614GASKET, VENTURI
1ST
2ND
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
sub21627-28150
21633GASKET, UNION NIPPLE
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21669DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
21712BUSH, SLIDING ROD
sub21712-61020
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
ANNEX 25,23
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21734SPRING, POWER PISTON
ANNEX 25,23
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
NO.2
ANNEX 25,23,NO.2
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
NO.2
NO.1
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21865SPRING
21869ASPRING(FOR THROTTLE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2183138010SCREW, POWER PISTON STOP
main21831-38010
2183215320SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-15320
2184538010SCREW(FOR LEVER SET)
main21845-38010
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9092504005
main90925-04005
9099992002
main90999-92002
9111140618
main91111-40618
9311913012
main93119-13012
9331915010
main93319-15010
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
91 parts on this diagram · 2 diagrams in section
