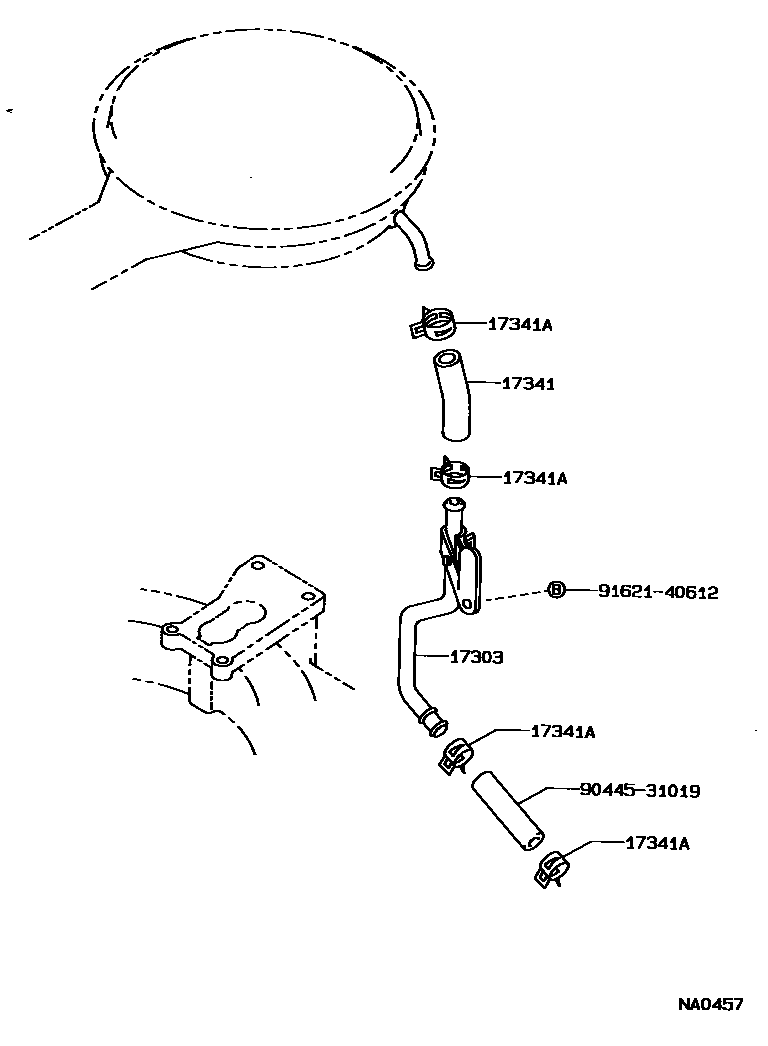

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1ANNEX 25

17303PIPE SUB-ASSY, AIR

main17303-16100i4AF..AT171..G198712-198911

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-15140i4AF..AT171..G198712-198911

ANNEX 25,23

main90445-31020i4AF..AT171..G198712-198911

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26004i4AF..AT171..G198712-198911

ANNEX 25,23

sub96134-52600

main90467-28003i4AF..AT171..G198712-198911

sub90467-28007

9044531019

main90445-31019

9162140612

main91621-40612

5 parts on this diagram · 2 diagrams in section
