TIMING GEAR COVER & REAR END PLATE

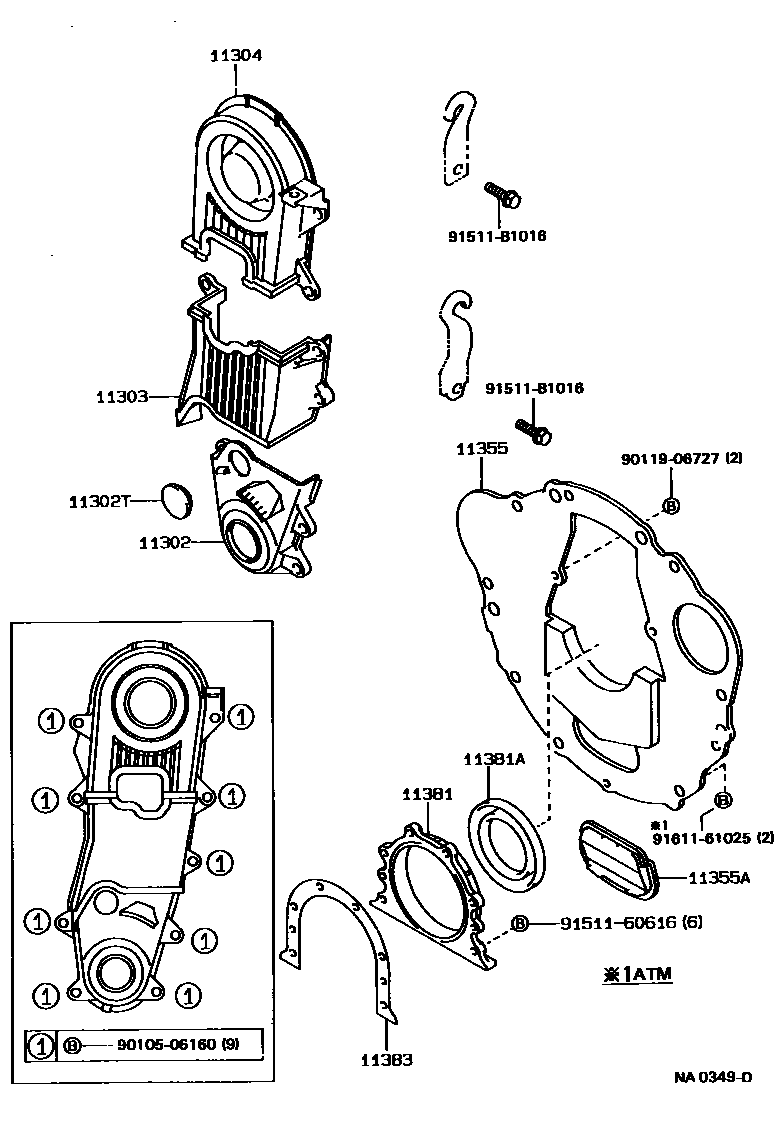

Parts diagram

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15041i198712-199211

main11302-74010i198712-198906

main11302-74011i198906-199203

11302TPLUG, HOLE

main90950-01391i198712-199211

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i198712-199211

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74010i198712-199203

main11304-15020i198712-199211

11355PLATE, REAR END

main11355-15070i198712-199211

main11355-15080i198712-199203

main11355-64032i198712-198904

main11355-64050i198904-199110

main11355-64051i199110-199211

main11355-74010i198712-199203

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i198712-199203

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i198712-199211

main11381-63011i198712-198907

main11381-63012i198907-199203

main11381-64012i198712-199211

11381ASEAL, ENGINE REAR OIL

main90311-70004i198712-199106

main90311-70007i199106-199211

main90311-85003i198712-198907

main90311-89001i198907-199203

main90311-90003i198712-199002

main90311-90003i198809-198911

ARAI

main90311-90005i198809-199002

NOK

main90311-90005i198712-199211

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i198712-198912

main11383-15011i198912-199205

main11383-16010i199205-199211

main11383-63010i198712-198907

main11383-63011i198907-199111

main11383-74020i199111-199202

main11383-74021i199202-199203

9010506160

main90105-06160

9011906727

main90119-06727

9151160616

main91511-60616

91511B1016

main91511-B1016

9161161025

main91611-61025

14 parts on this diagram · 3 diagrams in section
