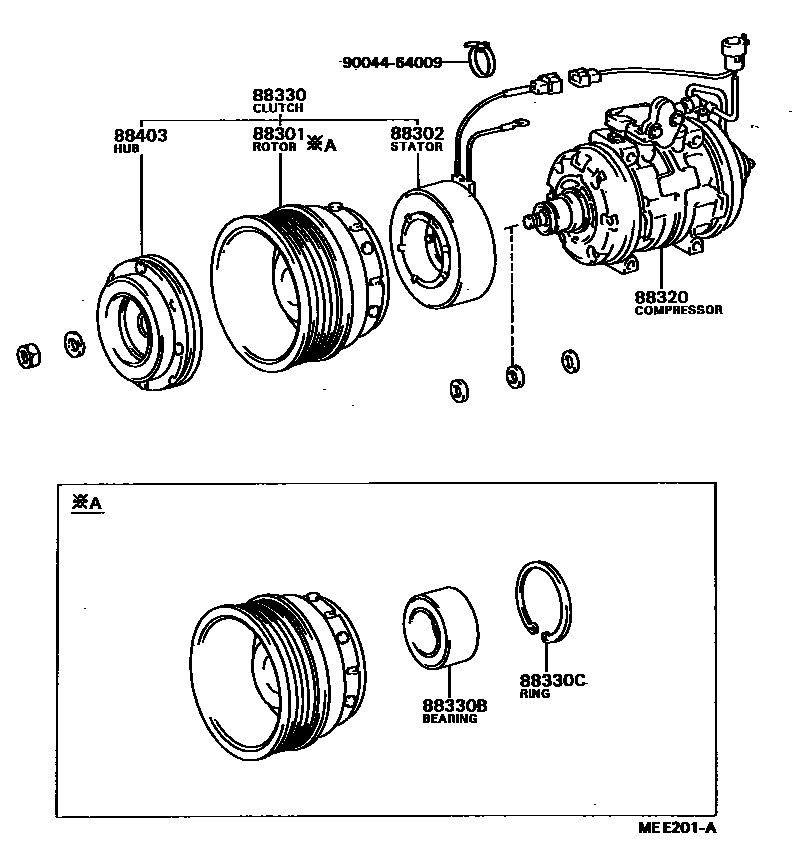

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14010iAT151..GEN,SAA,TH198310-198711

main88412-32010iCT150,ST15#..GEN,SAA,TH198310-198711

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCT150..GEN198310-198711

main88411-20100iAT151..LHD..(EUG,FRG)198310-198711

main88411-32010iST15#198310-198711

88320COMPRESSOR ASSY, COOLER

main88320-12460iAT151..SAA;AT151..LHD..(EUG,FRG)198508-198711

main88320-20370iAT151..GEN198310-198402

main88320-20400iAT151..GEN198402-198608

main88320-20460iST151198508-198711

NEWZEALAND SPEC

main88320-20460iST151198508-198711

*ME

main88320-20470iCT150..EUG198508-198705

sub88320-20560

main88320-20560iCT150..GEN198705-198711

main88320-32010iCT150,ST150..GEN,SAA198310-198608

88330CLUTCH ASSY, MAGNET

main88410-12160iCT150..GEN198310-198711

main88410-20170iAT151..GEN,TH198310-198711

main88410-32010iST15#198310-198711

88330BBEARING, MAGNET CLUTCH

main90099-10133iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iAT151..GEN,SAA,TH198310-198711

main90099-07118iCT150,ST150..LHD..EUG198310-198711

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

sub88403-12030

9004464009

main90044-64009

8 parts on this diagram · 3 diagrams in section
