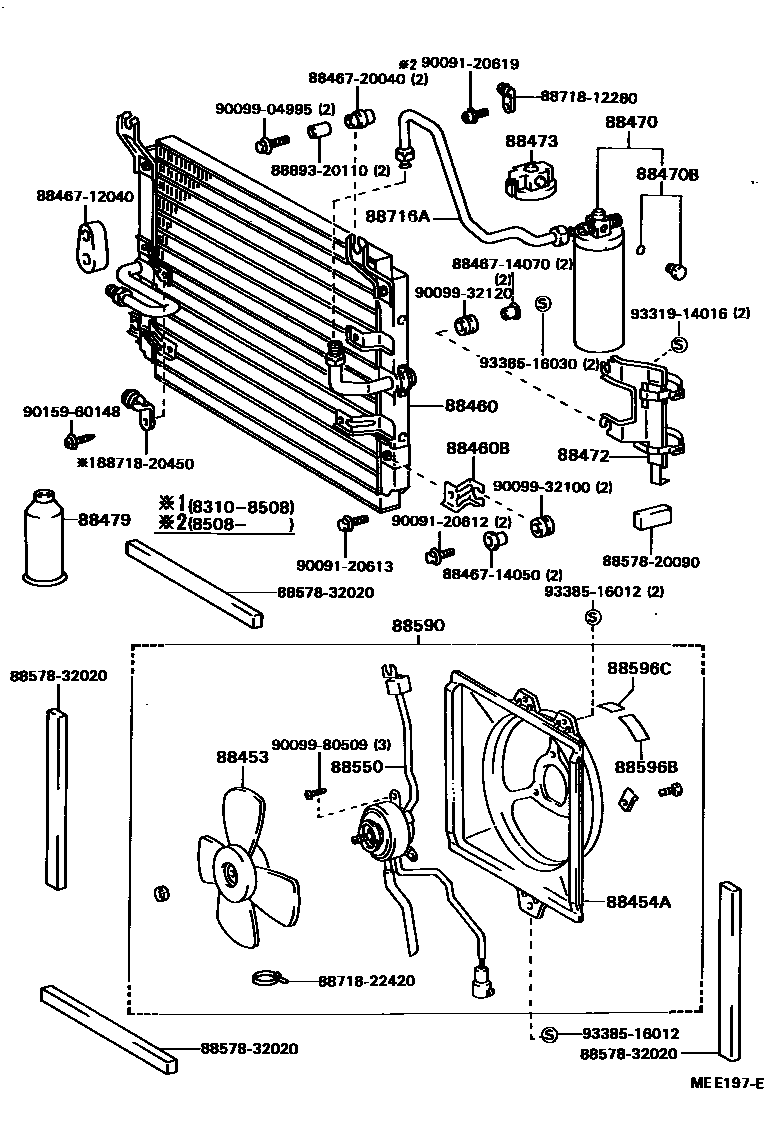

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88453FAN, COOLING (FOR CONDENSER)

main16361-28010iAT151..LHD..EUG198310-198608

main88453-10010iAT151..GEN198508-198711

main88453-32010iST150;CT150..DX,XL;CT150..LHD..GL198310-198608

main88453-32020iST150..LHD..5F..GEN198508-198711

*ME

88454ASHROUD, FAN

main88453-32020iST150..5F..SAA198508-198711

*ME

main88454-12050iAT151..LHD..4FC;AT151..3FC..GEN198310-198508

main88454-12051iAT151..ATM..(EUG,FRG)198508-198711

sub88454-12090

main88454-12051iAT151..RHD..MTM..XL198608-198711

THAILAND SPEC

sub88454-12090

main88454-12060iCT150..DX,XL;CT150..LHD..GL198310-198508

main88454-12061iCT150198508-198711

*ME

sub88454-12120

main88454-12070iAT151..TH198310-198608

main88454-12071iAT151..MTM..GEN;AT151..MTM..(EUG,FRG)198508-198711

main88454-32020iST150..MTM;ST150..3FC..GEN198310-198608

88460CONDENSER ASSY, COOLER

main88460-20180iAT151,ST150..TH¥34,300198310-198608

main88460-20210iAT151,CT150,ST15#..RHD..(GEN,TH)¥34,500198508-198711

main88460-20240iAT151,ST150..SAA¥34,500198508-198711

*ME

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-20330iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

88470RECEIVER & DRYER ASSY, COOLER

main88470-12061iAT151,CT150,ST15#..RHD..(GEN,TH)¥6,700198310-198711

sub88470-14010¥7,200

88470BBOLT, FUSE

main88475-12020iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

88472BRACKET, RECEIVER TANK, NO.1

main88473-20010iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

88473CAP, COOLER RECEIVER TANK

main88894-12111iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

400G

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST150..5F..SAA¥17,100198508-198711

*ME

main88550-20020iAT151..LHD..EUG;AT151..LHD..GEN;CT150,ST150..LHD¥19,300198310-198608

88590BLOWER ASSY, W/SHROUD

main88590-12041iAT151..SAA198508-198711

sub88590-12140

main88590-12051iAT151..MTM..GEN;AT151..MTM..(EUG,FRG)198508-198711

sub88590-12021

main88590-12061iCT150198508-198711

main88590-12120iAT151..3FC..GEN;AT151..ATM..(EUG,FRG)198508-198711

main88590-12140iST150..5F..SAA198508-198711

main88590-20010iST150..5F..SAA198404-198508

sub88590-32040

main88590-20030iAT151..ATM198404-198508

main88590-20040iST150..3FC..SAA198404-198508

*ME

main88590-20090iST150..LHD..5F..GEN198508-198711

*ME

sub88590-20100

main88590-22020iAT151..MTM198404-198508

88596BPLATE, CAUTION, NO.1

main88596-12040iST150..LHD..5F..GEN198608-198711

*ME

main88596-14010iAT151..SAA;AT151,CT150..LHD..EUG198508-198711

*ME

main88596-24010iST150198608-198711

88596CPLATE, CAUTION, NO.2

main88596-12010iAT151..3FC..GEN198508-198711

*ME

sub88723-12010

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-20640iCT150,ST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)¥2,830198310-198711

main88716-2B300iAT151,ST150..LHD..5F..GL..GEN;AT151,ST150..LHD..(3FC,4F)..GEN¥2,800198606-198711

CHINA SPEC

8846712040CUSHION, COOLER CONDENSER, NO.1

main88467-12040

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846720040CUSHION, COOLER CONDENSER, NO.1

main88467-20040

8857820090PAKING, COOLER AIR DUCT

main88578-20090

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871820450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20450

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8889320110COLLAR (FOR COOLER IDLER PULLEY)

main88893-20110

9009120612

main90091-20612

9009120613

main90091-20613

9009120619

main90091-20619¥0

9009904995

main90099-04995

9009932100

main90099-32100

9009932120

main90099-32120

9009980509

main90099-80509

9015960148

main90159-60148¥230

9331914016

main93319-14016¥190

9338516012

main93385-16012¥70

9338516030

main93385-16030¥120

35 parts on this diagram · 5 diagrams in section
