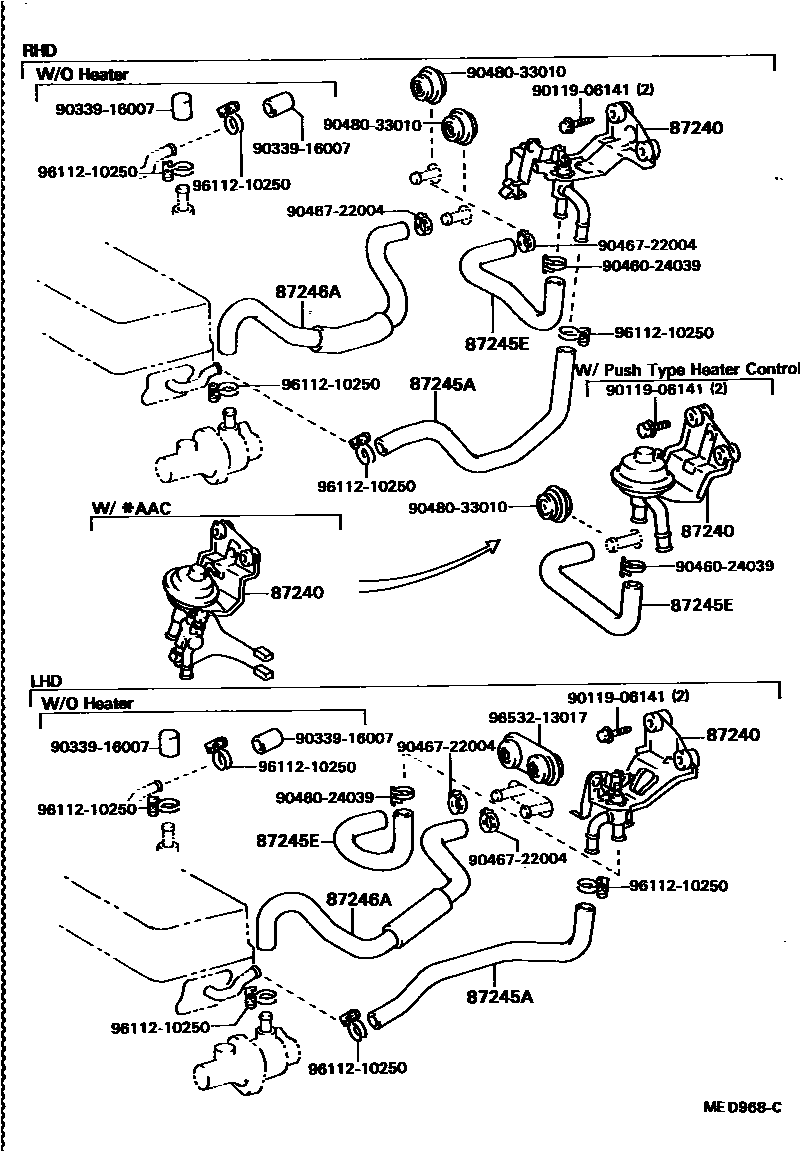

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-20270iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

main87240-20280iAT151,CT150,ST150..LHD198310-198711

main87240-20320iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

main88670-20080iAT151..SED..RHD..GL..GEN198609-198711

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87245-20590iST15#..RHD198310-198711

PLANT NO.=A41,A42

sub87245-32050

main87245-20620iCT150..RHD198310-198711

main87245-20640iAT151..RHD198310-198711

main87245-20660iAT151..LHD198310-198608

sub87245-20661

main87245-20661iAT151..LHD198608-198711

main87245-20680iST150..LHD198310-198711

main87245-20700iCT150..LHD198310-198711

main87245-20770iST15#..RHD198709-198711

PLANT NO.=C21-C24

sub87245-32050

87245EHOSE, HEATER WATER, INLET E

main87245-20580iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

main87245-20610iAT151,CT150,ST150..LHD198310-198711

main87245-2B030iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

87246AHOSE, HEATER WATER, OUTLET A

main87245-20630iCT150..RHD198310-198711

main87245-20650iAT151..RHD198310-198505

sub87245-20651

main87245-20651iAT151..RHD198505-198711

sub87245-20761

main87245-20670iAT151..LHD198310-198711

main87245-20710iCT150..LHD198310-198711

main87245-20720iST15#..RHD..GEN198310-198605

sub99556-30500

main87245-2B110iST150..LHD198310-198711

main99556-30500iST15#..RHD..GEN198605-198711

L=500

9011906141

main90119-06141

9033916007

main90339-16007

9046024039

main90460-24039

9046722004

main90467-22004

9048033010

main90480-33010

9611210250

main96112-10250

9653213017

main96532-13017

11 parts on this diagram · 3 diagrams in section
