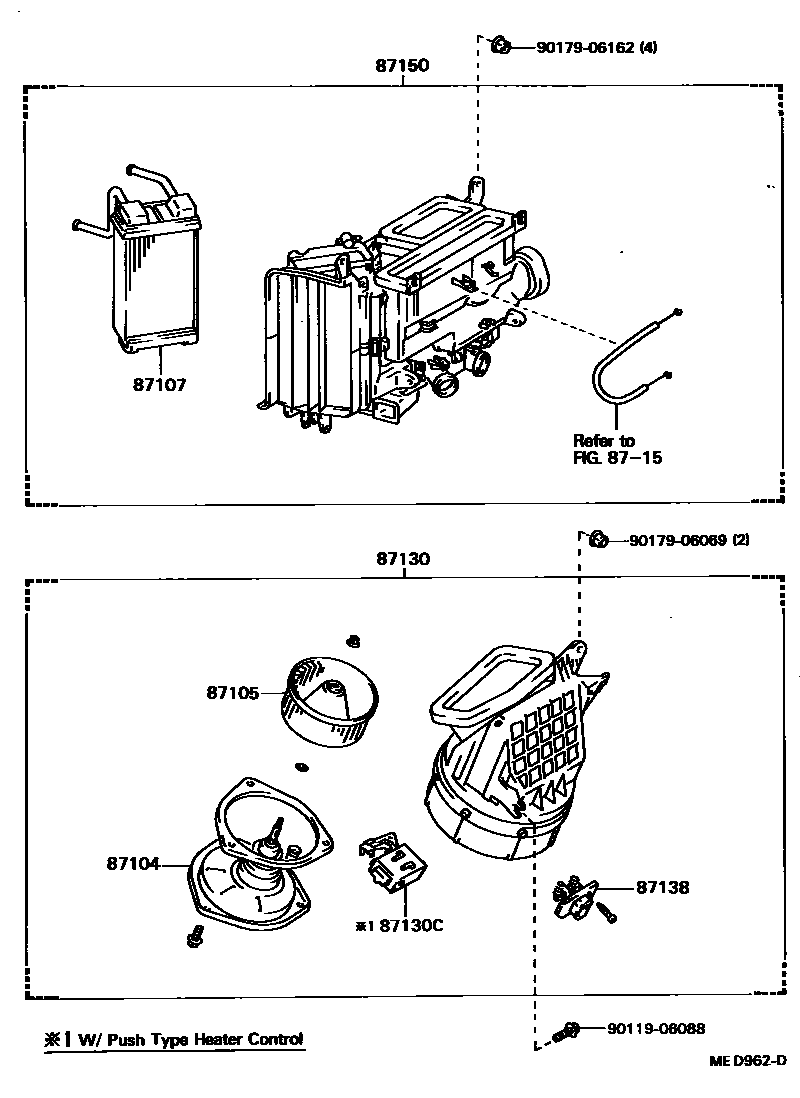

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-20140iAT151,CT150,ST15#..RHD198310-198711

main87104-20150iAT151,CT150,ST150..LHD198310-198711

main87104-20190iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198711

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iAT151,CT150,ST15#..RHD198310-198711

main87105-20090iAT151,CT150,ST150..LHD198310-198502

main87105-22060iAT151,CT150,ST150..LHD198502-198711

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20290iCT150..RHD..EUG198310-198711

COLD SPEC

main87107-20290iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

main87107-20300iCT150..RHD..GEN198310-198711

sub87107-20290

main87107-20310iST150..LHD;AT151..LHD..(EUG,FRG);AT151..LHD..(GEN,SAA)198310-198711

sub87107-20320

main87107-20320iAT151,ST150..LHD..(EUG,FRG)198310-198702

COLD SPEC

main87107-20320iAT151,CT150,ST150..LHD..EUR198310-198711

87130BLOWER ASSY, HEATER, FRONT

main87130-20130iAT151,CT150,ST150..LHD198310-198711

main87130-20140iAT151,CT150,ST15#..RHD198310-198711

main87130-20210iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

main87130-20230iAT151,CT150,ST150..LHD..(GEN,SAA)198502-198711

87130CRELAY, HEATER BLOWER MOTOR

main88630-20040iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

87138RESISTOR, HEATER BLOWER

main87138-20060iAT151,CT150,ST15#..RHD198310-198711

main87138-20070iAT151,CT150,ST150..LHD..EUR198310-198711

main87138-20090iAT151,CT150,ST150..LHD..(GEN,SAA)198502-198508

main87138-20120iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198711

main88635-20050iAT151..SED..RHD..GL..GEN198609-198711

W/*AAC

8715

87150RADIATOR ASSY, HEATER

main87150-20280iAT151..RHD..EUG198310-198508

COLD SPEC

main87150-20290iCT150..RHD..GEN198310-198711

sub87150-20280

main87150-20300iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198609

main87150-20301iAT151,CT150,ST150..LHD..(GEN,SAA)198609-198711

main87150-20310iAT151,ST150..LHD..(EUG,FRG)198310-198702

sub87150-20320

main87150-20320iCT150..LHD..EUG198310-198702

COLD SPEC

main87150-20320iAT151..SDZ198310-198711

main87150-20440iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

main87150-20450iAT151..RHD..EUG198508-198711

main87150-20460iAT151..RHD..EUG198508-198711

COLD SPEC

9011906088

main90119-06088

9017906069

main90179-06069

9017906162

main90179-06162

11 parts on this diagram · 3 diagrams in section
