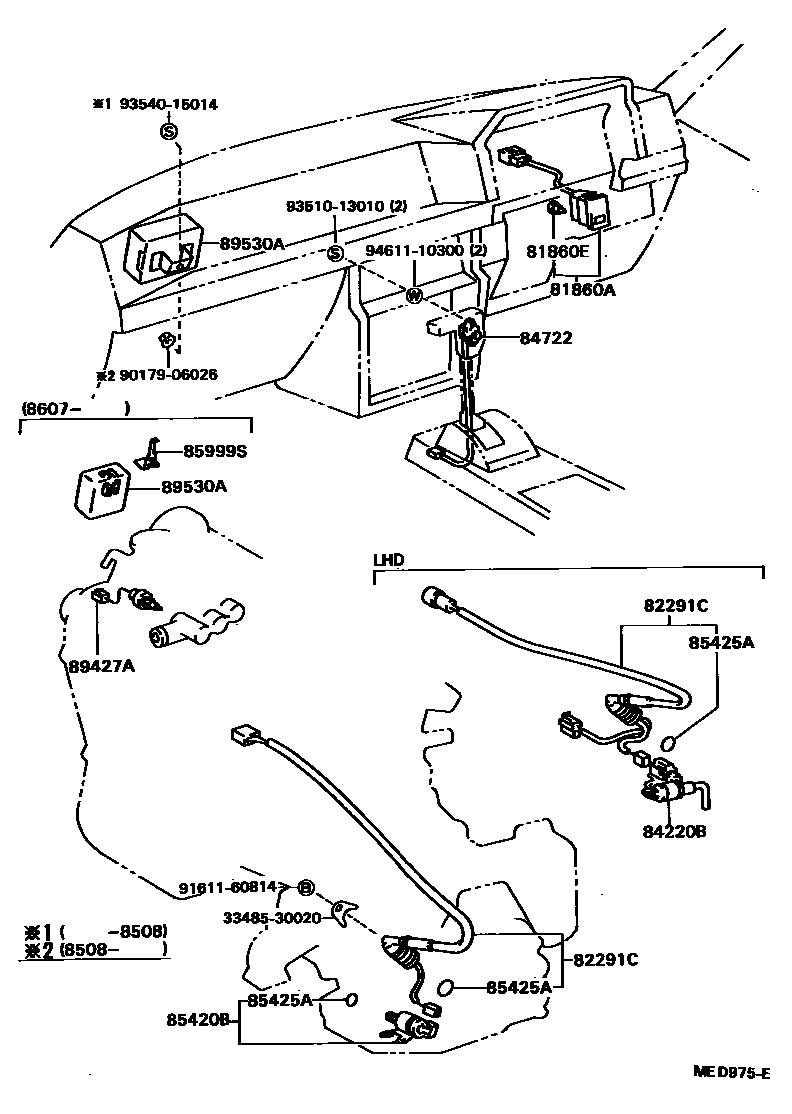

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

81860ALAMP ASSY, TRANSMISSION INDICATOR

main81860-20040iAT151..4FC198401-198508

main81860-20060iAT151,ST15#..4FC198508-198711

81860EBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iAT151,ST15#..4FC198401-198711

12V 1.12W,12V 1.12W

82291CWIRE, TO SOLENOID (FOR TRANSMISSION)

main82125-20060iAT151..RHD..4FC198401-198508

main82125-20070iAT151,ST150..LHD..4FC198401-198711

main82125-20100iAT151,ST151..RHD..4FC198508-198711

84220BSWITCH ASSY, KICK DOWN

main84220-20100iAT151,ST150..LHD..4FC198401-198711

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-02iAT151,ST15#..4FC198401-198711

MAROON,DEEP MAROON,TRIM3#

sub84722-20040

main84722-20040-03iAT151,ST15#..4FC198401-198711

GRAY,GRAY,TRIM1#

sub84722-20040

main84722-20040-04iAT151..4FC198401-198508

BLUE,BLUE,TRIM8#

sub84722-20040

main84722-20040-14iAT151,ST15#..4FC198508-198711

BLUE,BLUE,TRIM8#

sub84722-20040

85420BSOLENOID ASSY, TRANSMISSION

main85420-10010iAT151,ST15#..4FC198603-198711

sub85420-10011

main85420-20060iAT151,ST15#..4FC198401-198603

sub85420-10010

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iAT151,ST15#..4FC198401-198711

ID=6.1

main96721-24018iAT151,ST15#..4FC198401-198711

ID=18

85999SBRACKET, RELAY

main85999-20130iAT151,ST150..LHD..4FC198607-198711

89427ASWITCH, TEMPERATURE

main89427-32010iAT151,ST15#..4FC198401-198711

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-20070iAT151..LHD..4FC198401-198508

main89530-20150iAT151,ST150..LHD..4FC198508-198711

3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020

9017906026

main90179-06026

9161160814

main91611-60814

9351013010

main93510-13010

9354015014

main93540-15014

9461110300

main94611-10300

16 parts on this diagram · 1 diagram in section
