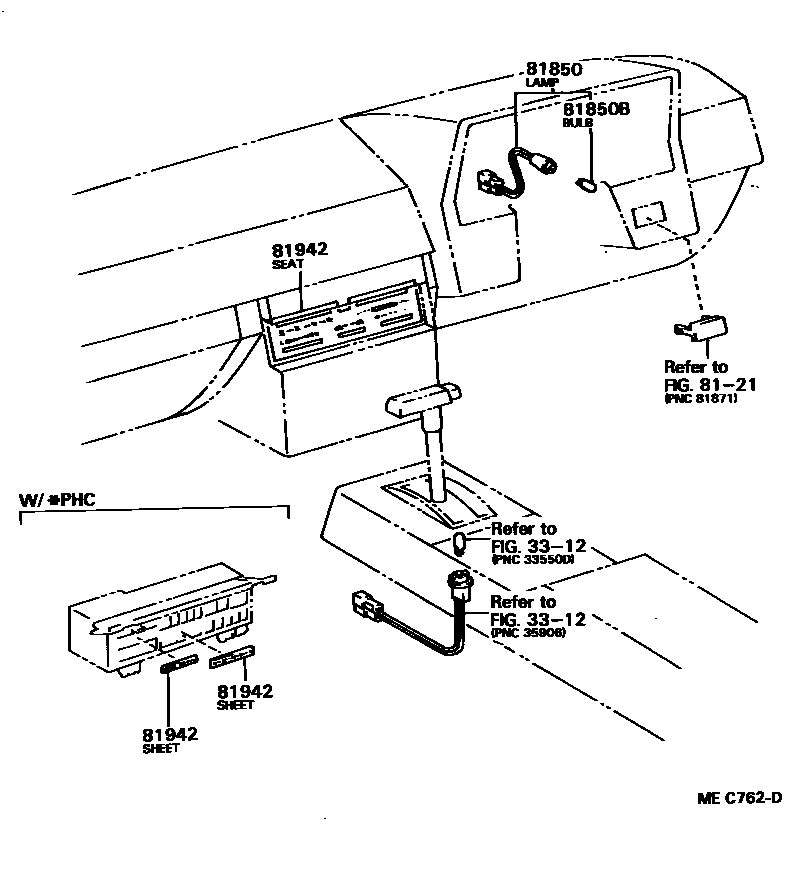

INDICATOR

3312

8121

81850LAMP ASSY, INDICATOR

main81850-20130iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

81850BBULB, INDICATOR LAMP

main90981-11018iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

12V 1.2W W/O SOCKET,12V 1.4W

81942SHEET, HEATER CONTROL NAME

main81942-20020iAT151,CT150,ST150..RHD198310-198508

sub81942-20021

main81942-20021iAT151,CT150,ST15#..RHD..GEN198508-198711

main81942-20040iAT151,CT150,ST150..RHD..GEN198310-198508

W/BOOST VENTILATOR

sub81942-20150

main81942-20040iAT151,ST150..TH198508-198608

sub81942-20150

main81942-20050iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

sub81942-20051

main81942-20051iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198609

main81942-20060iAT151,CT150..LHD..EUR198310-198508

sub81942-20061

main81942-20061iAT151,CT150,ST150..LHD..EUR198508-198711

main81942-20070iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

W/BOOST VENTILATOR

sub81942-20071

main81942-20071iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198609

W/BOOST VENTILATOR

main81942-20072iAT151,CT150,ST150..LHD..(GEN,SAA)198609-198711

W/BOOST VENTILATOR

main81942-20110iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,TEMP

main81942-20140iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,AUTO

main81942-20150iAT151,CT150,ST15#..RHD..GEN198508-198711

W/BOOST VENTILATOR

main81942-20160iAT151,CT150..RHD..EUG198508-198711

5 parts on this diagram · 1 diagram in section
