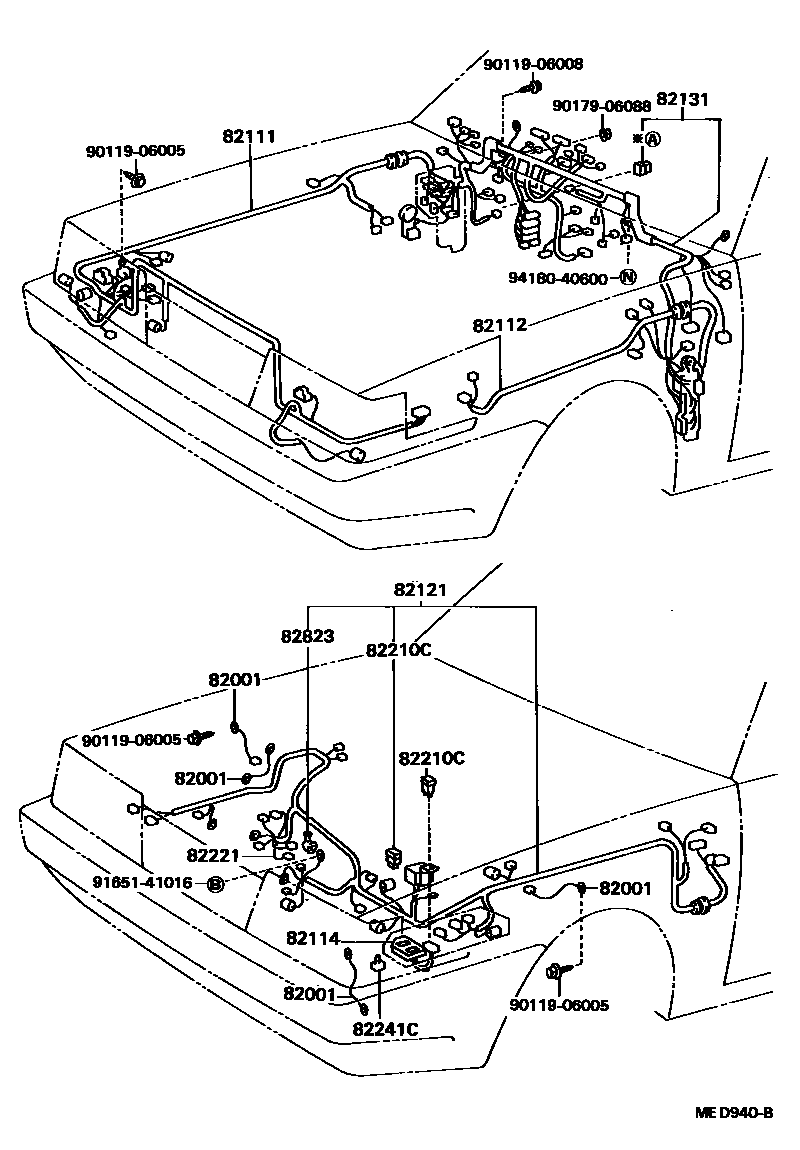

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82001CABLE, BOND, NO.1

main86203-20120iST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH¥1,000198310-198711

FENDER RH

main86203-20130iAT151,ST150¥650198310-198508

FENDER LH

main90980-07177iAT151,ST150¥550198310-198508

CLUTCH HOUSING

main90980-07205iST15#¥580198310-198711

ENGINE HANGER

main90980-07206iAT151..RHD..EUG¥610198611-198711

FENDER RH,W/DIM-DIP LAMP

main90980-07228iAT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC¥540198310-198408

ENGINE HANGER

main90980-07236iAT151..EUG,SDZ;AT151..GEN,SAA,TH¥410198408-198710

ENGINE HANGER

main90980-07264iST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH¥680198508-198711

CLUTCH HOUSING

main90980-07299iAT151¥500198710-198711

ENGINE HANGER

82111WIRE, ENGINE ROOM MAIN

main82111-20240iAT151,CT150,ST150..RHD..GEN¥40,800198310-198508

main82111-20260iAT151,ST150..LB..RHD..GEN198310-198508

W/RR WIPER

main82111-20280iAT151,CT150..RHD..EUG198310-198508

main82111-20290iAT151,CT150..RHD..EUG198310-198508

W/*HC OR RR WIPER

main82111-20300iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

main82111-20310iAT151,ST150..LB..LHD..(GEN,SAA)198310-198711

W/RR WIPER

main82111-20330iAT151,CT150..LHD..EUR198310-198508

main82111-20510iAT151,CT150,ST15#..RHD..GEN¥35,000198508-198711

main82111-20520iAT151,ST15#..LB..RHD..GEN¥40,900198508-198711

W/RR WIPER

main82111-20540iAT151,CT150..RHD..EUG¥35,000198508-198601

sub82111-20541¥35,000

main82111-20541iAT151,CT150..RHD..EUG¥35,000198601-198608

sub82111-20542¥35,000

main82111-20542iAT151,CT150..RHD..EUG¥35,000198608-198711

main82111-20550iAT151,CT150,ST150..LHD..(GEN,SAA)¥40,800198508-198608

sub82111-20551¥40,900

main82111-20551iAT151,CT150,ST150..LHD..(GEN,SAA)¥40,900198608-198711

main82111-20560iAT151,CT150,ST150..LHD..EUR¥40,800198508-198601

sub82111-20561¥40,900

main82111-20561iAT151,CT150,ST150..LHD..EUR¥40,900198601-198711

main82111-20780iAT151,CT150..RHD..EUG¥40,900198611-198711

W/DIM-DIP LAMP

82112WIRE, ENGINE ROOM, NO.2

main82112-20040iAT151,CT150,ST15#..RHD..GEN¥3,710198310-198711

main82112-20050iAT151,CT150..RHD..EUG¥2,900198310-198611

sub82112-20051¥2,890

main82112-20051iAT151,CT150..RHD..EUG¥2,890198611-198711

82114WIRE, ENGINE ROOM, NO.4

main82114-32010iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

82121WIRE, ENGINE

main82121-20140iAT151..RHD..GEN198310-198508

main82121-20150iAT151..RHD..EUG198310-198508

main82121-20170iAT151..LHD..GEN¥40,500198310-198508

main82121-20180iAT151..LHD..EUR¥40,500198310-198508

main82121-20200iST150..RHD198310-198508

main82121-20210iST150..LHD..GEN198310-198508

main82121-20220iCT150..RHD..GEN198310-198508

main82121-20230iCT150..RHD..EUG198310-198508

main82121-20240iCT150..RHD..EUG198310-198508

COLD SPEC

main82121-20250iCT150..LHD..GEN198310-198508

main82121-20260iCT150..LHD..EUG198310-198508

main82121-20270iCT150..LHD..EUG198310-198508

COLD SPEC

main82121-20360iST150..5F..SAA198310-198508

main82121-20720iAT151..RHD..GEN¥35,000198508-198609

sub82121-20721¥35,000

main82121-20721iAT151..RHD..GEN¥35,000198609-198711

main82121-20730iST150..RHD..GEN¥40,800198508-198609

sub82121-20731¥40,900

main82121-20731iST150..RHD¥40,900198609-198711

main82121-20740iCT150..RHD..GEN198508-198510

main82121-20741iCT150..RHD..GEN¥40,900198510-198611

sub82121-20742¥40,900

main82121-20742iCT150..RHD..GEN¥40,900198611-198711

main82121-20760iAT151..RHD..EUG¥40,800198508-198608

sub82121-20761¥40,900

main82121-20761iAT151..RHD..EUG¥40,900198608-198711

main82121-20780iCT150..RHD..EUG198508-198510

main82121-20781iCT150..RHD..EUG¥40,800198510-198608

sub82121-20782¥40,900

main82121-20782iCT150..RHD..EUG¥40,900198608-198611

sub82121-20783¥40,900

main82121-20783iCT150..RHD..EUG¥40,900198611-198711

main82121-20790iCT150..RHD..EUG198508-198510

COLD SPEC

main82121-20791iCT150..RHD..EUG¥40,800198510-198608

COLD SPEC

sub82121-20792¥40,900

main82121-20792iCT150..RHD..EUG¥40,900198608-198611

COLD SPEC

sub82121-20793¥40,900

main82121-20793iCT150..RHD..EUG¥40,900198611-198711

COLD SPEC

main82121-20800iAT151..LHD..(GEN,SAA)¥40,900198508-198711

main82121-20810iST150..LHD..GEN¥40,800198508-198609

sub82121-20811¥40,900

main82121-20811iST150..LHD..GEN¥40,900198609-198711

main82121-20820iCT150..LHD..GEN198508-198510

main82121-20821iCT150..LHD..GEN¥40,900198510-198611

sub82121-20822¥40,900

main82121-20822iCT150..LHD..GEN¥40,900198611-198711

main82121-20830iST150..5F..SAA¥40,800198508-198609

sub82121-20831¥40,900

main82121-20831iST150..5F..SAA¥40,900198609-198711

main82121-20840iAT151..LHD..(EUG,SDZ)¥40,900198508-198711

main82121-20850iST150..EUG198508-198510

main82121-20851iST150..EUG198510-198609

main82121-20852iST150..EUG¥35,000198609-198711

main82121-20860iCT150..LHD..EUG198508-198510

main82121-20861iCT150..LHD..EUG¥40,900198510-198611

sub82121-20862¥40,900

main82121-20862iCT150..LHD..EUG¥40,900198611-198711

main82121-20870iCT150..LHD..EUG¥52,500198508-198510

COLD SPEC

main82121-20871iCT150..LHD..EUG¥52,600198510-198611

COLD SPEC

sub82121-20872¥52,600

main82121-20872iCT150..LHD..EUG¥52,600198611-198711

COLD SPEC

main82121-2B200iAT151..SED..3FC..GL;AT151..SED..RHD..5F..GEN¥35,000198605-198711

SINGAPORE SPEC

main82121-2B261iAT151..FRG198608-198609

main82121-2B262iAT151..FRG¥40,900198609-198711

82131WIRE, COWL

main82131-20400iAT151..(4FC,5F)..DX198410-198508

NORWAY SPEC

main82131-20720iAT151,CT150,ST150..RHD..(STD,XL)¥43,200198310-198508

main82131-20730iAT151,CT150,ST150..RHD..XL198310-198508

W/TACHO METER

main82131-20740iAT151,ST150..RHD..GL..GEN¥51,700198310-198508

main82131-20750iAT151,ST150..RHD..GL..GEN198310-198508

W/*PW

main82131-20760iAT151,CT150,ST150..LHD..(STD,XL)..GEN198310-198508

main82131-20770iAT151,ST150..LHD..GL..GEN198310-198508

main82131-20780iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

W/SUN ROOF,*PW OR *ME

main82131-20790iST150..SAA198310-198508

main82131-20800iAT151,CT150..RHD..EUG198310-198508

main82131-20810iAT151,CT150..RHD..EUG198310-198508

W/TACHO METER

main82131-20820iAT151,CT150..DX198310-198508

main82131-20830iAT151,CT150..LHD..GL..EUR198310-198508

main82131-2B030iST150..SED..RHD..GL198310-198508

W/O TACHO METER

main82131-2B430iAT151..SED..RHD..5F..GL..GEN198501-198508

W/RR SPEAKER

main82131-2B660iAT151,CT150,ST150..RHD..XL..GEN¥51,800198508-198711

main82131-2B670iAT151,CT150,ST150..RHD..XL..GEN¥51,800198508-198711

W/TACHO METER

main82131-2B680iAT151,ST15#..RHD..GL..GEN¥51,700198508-198603

sub82131-2B681¥51,800

main82131-2B681iAT151,ST15#..RHD..GL..GEN¥51,800198603-198711

main82131-2B690iST151¥66,200198508-198603

NEWZEALAND SPEC

sub82131-2B691¥66,500

main82131-2B690iST151¥66,200198508-198603

W/*PW

sub82131-2B691¥66,500

main82131-2B691iAT151,ST15#..RHD..GL..GEN¥66,500198603-198711

W/*PW

main82131-2B691iST151¥66,500198603-198711

NEWZEALAND SPEC

main82131-2B700iST150..SED..RHD..GL¥58,300198508-198603

W/O TACHO METER

sub82131-2B701¥58,400

main82131-2B701iST150..SED..RHD..GL¥58,400198603-198711

W/O TACHO METER

main82131-2B710iAT151,CT150..RHD..EUG¥58,300198508-198601

sub82131-2B711¥58,300

main82131-2B711iAT151,CT150..RHD..EUG¥58,300198601-198608

sub82131-2B712¥58,300

main82131-2B712iAT151,CT150..RHD..EUG¥58,300198608-198609

sub82131-2B713¥58,400

main82131-2B713iAT151,CT150..RHD..EUG¥58,400198609-198711

main82131-2B720iAT151,CT150..RHD..EUG¥58,300198508-198601

W/TACHO METER

sub82131-2B721¥58,300

main82131-2B721iAT151,CT150..RHD..EUG¥58,300198601-198608

W/TACHO METER

sub82131-2B722¥58,300

main82131-2B722iAT151,CT150..RHD..EUG¥58,300198608-198609

W/TACHO METER

sub82131-2B723¥58,400

main82131-2B723iAT151,CT150..RHD..EUG¥58,400198609-198705

W/TACHO METER

sub82131-2B724¥66,500

main82131-2B724iAT151,CT150..RHD..EUG¥66,500198705-198711

W/TACHO METER

main82131-2B730iAT151,CT150,ST150..LHD..XL..GEN¥51,800198508-198711

main82131-2B740iAT151,ST150..LHD..GL..GEN¥51,800198508-198711

main82131-2B750iAT151,ST150..LHD..GEN¥58,400198508-198711

W/*PW

main82131-2B760iAT151,ST150..SAA¥58,300198508-198608

*ME

sub82131-2B761¥58,400

main82131-2B761iAT151..LHD..4F..GEN¥58,400198608-198711

*ME

main82131-2B770iAT151,CT150..DX¥51,700198508-198601

sub82131-2B771¥51,700

main82131-2B771iAT151,CT150..DX¥51,700198601-198608

sub82131-2B772

main82131-2B773iAT151,CT150..DX¥51,700198608-198610

sub82131-2B774¥51,800

main82131-2B774iAT151,CT150..DX¥51,800198610-198711

main82131-2B780iAT151..5F..DX;CT150..LB..DX¥58,300198510-198601

W/TACHOMETER

sub82131-2B781

main82131-2B780iAT151,CT150,ST150..LHD..GL..EUR¥58,300198508-198601

sub82131-2B781

main82131-2B781iAT151..5F..DX;CT150..LB..DX198601-198608

W/TACHOMETER

main82131-2B783iAT151,CT150,ST150..LHD..GL..EUR¥58,300198608-198711

sub82131-2B784¥58,400

main82131-2B783iAT151..5F..DX;CT150..LB..DX¥58,300198608-198610

W/TACHOMETER

sub82131-2B784¥58,400

main82131-2B784iAT151..5F..DX;CT150..LB..DX¥58,400198610-198711

W/TACHOMETER

main82131-2B790iST150..EUG¥43,200198508-198601

NORWAY SPEC

sub82131-2B791¥43,200

main82131-2B791iST150..EUG¥43,200198601-198608

NORWAY SPEC

sub82131-2B792¥43,200

main82131-2B792iAT151..(4FC,5F)..DX¥43,200198608-198711

NORWAY SPEC

sub82131-2B793¥43,500

main82131-2B793iAT151..(4FC,5F)..DX¥43,500198610-198711

NORWAY SPEC

main82131-2D080iST150..EUG¥58,300198508-198601

W/*PW

sub82131-2D081¥58,300

main82131-2D081iST150..EUG¥58,300198601-198608

W/*PW

sub82131-2D082¥58,300

main82131-2D082iST150..EUG¥58,300198608-198610

W/*PW

sub82131-2D083¥58,400

main82131-2D083iST150..EUG¥58,400198610-198701

W/*PW

sub82131-2D084¥58,400

main82131-2D084iST150..EUG¥58,400198701-198711

W/*PW

main82131-2D400iAT151..SED..RHD..GL..GEN¥66,500198609-198711

W/PUSH TYPE HEATER CONTROL

main82131-2D410iAT151,CT150..RHD..EUG¥58,400198611-198711

W/DIM-DIP LAMP

main82131-2D420iAT151,CT150..RHD..EUG¥58,400198611-198705

W/DIM-DIP LAMP & TACHOMETER

sub82131-2D421¥79,700

main82131-2D421iAT151,CT150..RHD..EUG¥79,700198705-198711

W/DIM-DIP LAMP & TACHOMETER

82210CFUSIBLE LINK

main90982-08188iAT151,CT150,ST15#¥710198310-198711

30A,TERM.:FEMALE,PNK,30A

main90982-08189iAT151..FRG¥440198608-198711

40A,TERM.:FEMALE,GRN,40A

main90982-08190iAT151,ST15#..EUR,GEN,SAA¥750198310-198711

60A,TERM.:FEMALE,YEL,60A

main90982-08202iCT150¥700198310-198711

60A,TERM.:MALE,YEL,60A

main90982-08203iCT150¥460198310-198711

80A,TERM.:MALE,BLK,80A

82221WIRE, OIL PRESSURE SWITCH

main82221-16010iAT151¥680198310-198508

82241CWIRE, RELAY

main82241-20190iAT151,CT150,ST150..(STD,XL)..(GEN,SAA)198408-198711

main82241-22100iAT151,CT150,ST150..STD,XL198310-198408

82823CAP, TERMINAL, NO.1

main82823-14070iCT150¥510198310-198711

STARTER

main82823-20030iAT151,CT150,ST15#¥670198310-198711

STARTER

main82823-20040iAT151,CT150,ST15#¥520198310-198711

ALTERNATOR

main82823-22050iST150..EUG¥390198608-198711

ALTERNATOR

main82823-22050iST150..EUG¥390198608-198711

ALTERNATOR,NEWZEALAND SPEC

main82823-22060iAT151..FRG¥910198608-198711

ALTERNATOR

main82823-32020iST150..GEN,SAA¥350198608-198711

ALTERNATOR

9011906005

main90119-06005¥80

9011906008

main90119-06008¥110

9017906088

main90179-06088¥190

9165141016

main91651-41016¥200

9418040600

main94180-40600¥90
