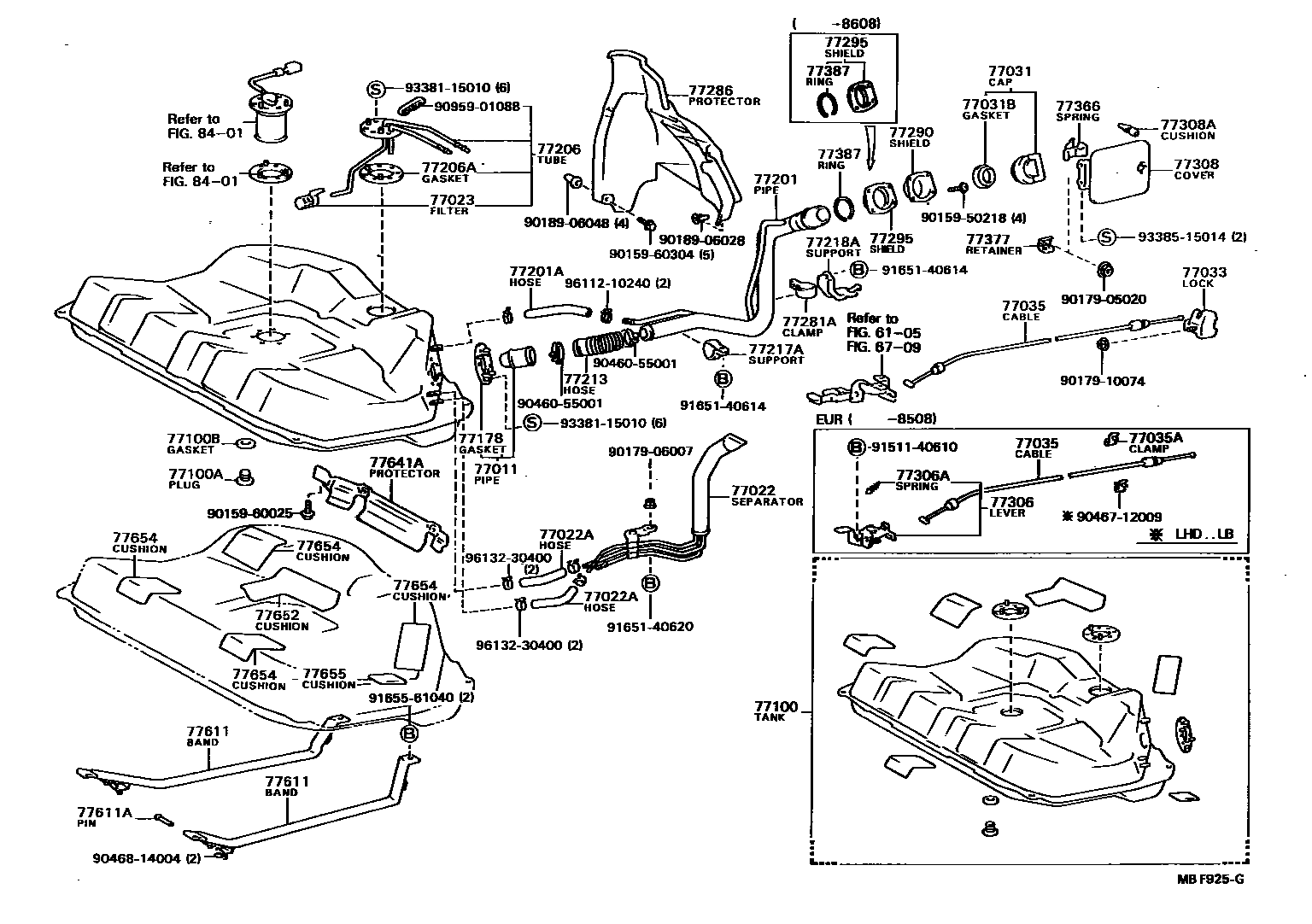

FUEL TANK & TUBE

0001 1 0002 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-16030iAT151,CT150,ST15#198310-198711

sub77011-16040

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77022-32011iAT151,CT150,ST15#198310-198711

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-04030iAT151,CT150,ST15#198310-198702

L=300(*H,L=220)

sub95333-04030

main95333-04030iAT151,CT150,ST15#198702-198711

L=300(*H,L=220)

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT151..EUR198310-198711

main77023-32010iCT150198310-198711

77031CAP ASSY, FUEL TANK

main77310-12100iST15#;AT151..EUG;AT151..GEN,SAA198310-198711

main77310-16010iAT151..FRG198608-198710

sub77310-16011

main77310-16011iAT151..FRG198710-198711

sub77310-12140

main77310-35061iCT150198310-198711

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAT151,CT150,ST15#198310-198711

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAT151,ST150..(3FC,5F)..TH198503-198711

sub77037-38010

main77037-32010iAT151,CT150,ST150..DX,GL,XL198310-198503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20050iAT151,ST150..SED..(3FC,5F)..TH198310-198711

sub77035-32010

main77035-20070iAT151,CT150,ST150..LHD..(GL,XL)198310-198711

sub77035-32070

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iAT151,CT150..SED..LHD..EUR198310-198508

77100TANK ASSY, FUEL

main77001-39135iAT151..EUR198310-198711

main77001-39205iCT150,ST151198310-198711

77100APLUG(FOR FUEL TANK)

main90341-20003iAT151,CT150,ST150198310-198508

sub90341-20004

main90341-20004iAT151,CT150,ST15#198508-198711

77100BGASKET(FOR FUEL TANK)

main90430-20006iAT151,CT150,ST150198310-198508

main90430-20007iAT151,CT150,ST15#198508-198711

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAT151,CT150,ST15#198310-198711

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-32010iCT150,ST15#;AT151..EUG,SDZ;AT151..GEN,SAA,TH198310-198711

main77201-32020iAT151..FRG198608-198711

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iAT151,CT150,ST15#198310-198711

L=220

sub90445-22024

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-20030iCT150..GEN198310-198711

sub77017-20070

main77017-20060iAT151..EUR198610-198711

main77017-20070iCT150..EUG198610-198711

main77017-32011iAT151..EUR198310-198711

sub77017-20060

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-32010iAT151,CT150,ST150198310-198711

77213HOSE, FUEL TANK SUB INLET

main77213-32010iAT151,CT150,ST15#198310-198711

L=248

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32010iAT151,CT150,ST15#198310-198711

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-32010iAT151,CT150,ST15#198310-198711

77281ACLAMP, FUEL FILLER PIPE

main77281-32010iAT151,CT150,ST15#198310-198711

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20070iAT151,ST150..TH198508-198711

W/PP BUMPER

main77277-20070iAT151,CT150,ST150198310-198508

main77277-20110iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/*UB

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20010iAT151,CT150,ST15#198310-198608

main77290-20011iAT151,CT150,ST15#198608-198711

77295SHIELD, FUEL FILLER PIPE

main77293-20010iAT151,CT150,ST15#198608-198711

main77293-32010iAT151,CT150,ST15#198310-198608

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iAT151,CT150..RHD..EUG198310-198508

main77306-14020iAT151,CT150..LHD..EUR198310-198508

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iAT151,CT150..EUR198310-198508

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-20040iAT151..4F..TH198508-198608

main77350-20040iAT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN,SAA)198310-198711

W/O OPENER

main77350-20050iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

W/OPENER

main77350-20050iAT151,ST150..(3FC,5F)..TH198508-198608

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06027iAT151,CT150,ST15#198310-198711

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAT151,CT150,ST15#198310-198711

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iAT151,ST150..(3FC,5F)..TH198310-198711

77387RING, FUEL INLET BOX

main77391-16011iAT151,CT150,ST150198310-198508

main77391-32010iAT151,CT150,ST15#198508-198711

77611BAND, FUEL TANK

main77601-20050iAT151,ST150..SAA198310-198711

RH

main77601-32030iAT151,CT150,ST15#..EUR,GEN,TH198310-198711

RH

main77602-32020iAT151,CT150,ST15#198310-198711

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAT151,CT150,ST15#198310-198711

77641APROTECTOR, FUEL TANK, NO.1

main77641-32010iAT151,ST150..SAA198310-198711

77652CUSHION, FUEL TANK, NO.1

main77651-32030iAT151,CT150,ST15#198310-198711

77654CUSHION, FUEL TANK, NO.2

main77652-20040iAT151,CT150,ST15#198512-198711

main77652-32020iAT151,CT150,ST15#198310-198512

77655CUSHION, FUEL TANK, NO.3

main77653-32020iAT151,CT150,ST15#198310-198711

8401

9015950218

main90159-50218

9015960025

main90159-60025

9015960304

main90159-60304

9017905020

main90179-05020

9017906007

main90179-06007

9017910074

main90179-10074

9018906028

main90189-06028

9018906048

main90189-06048

9046055001

main90460-55001

9046712009

main90467-12009

9046814004

main90468-14004

9095901088

main90959-01088

9151140610

main91511-40610

9165140614

main91651-40614

9165140620

main91651-40620

9165561040

main91655-61040

9338115010

main93381-15010

9338515014

main93385-15014

9611210240

main96112-10240

9613230400

main96132-30400
