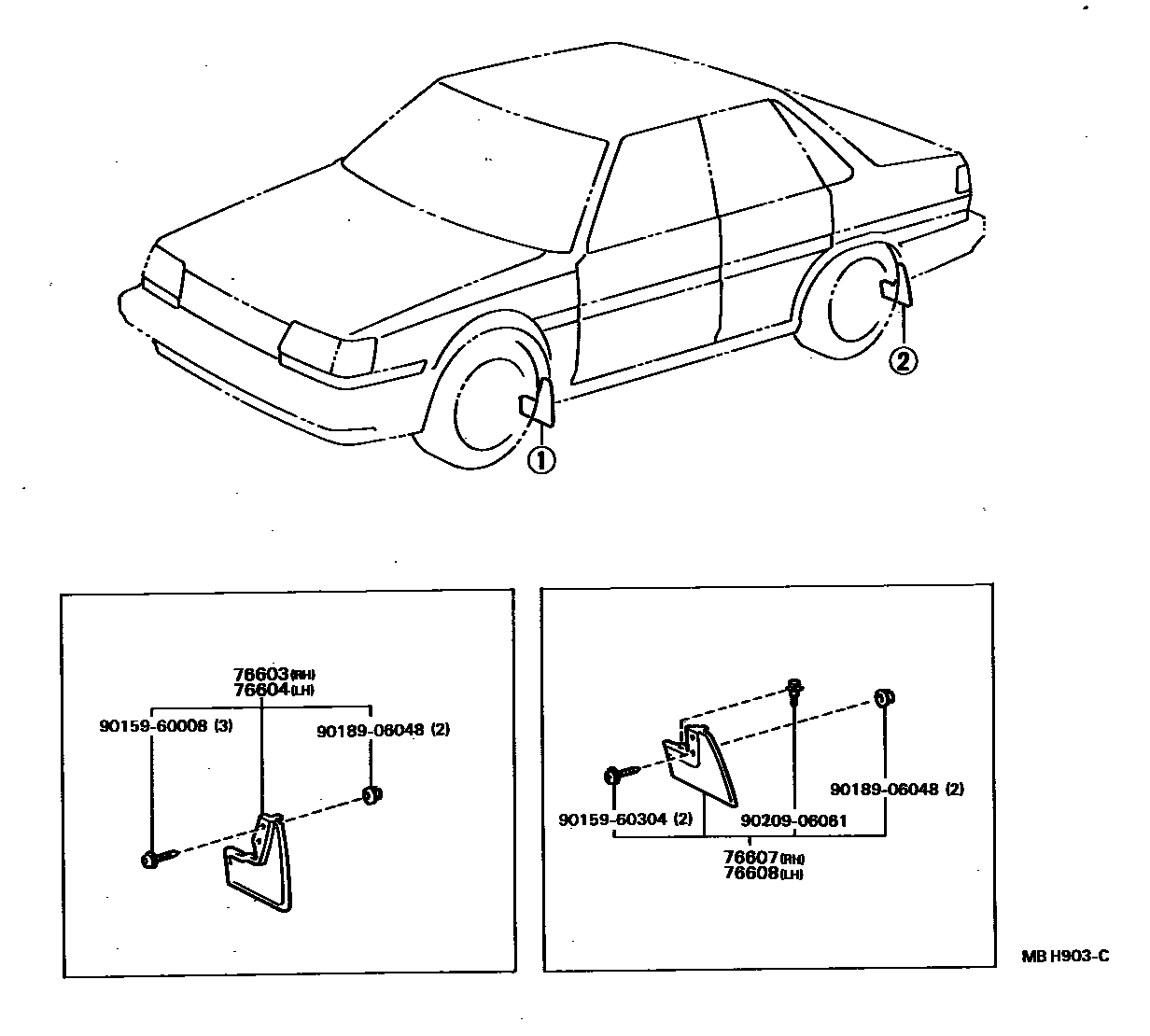

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29015iAT151,ST150..(3FC,5F)..TH198310-198711

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29015iAT151,ST150..(3FC,5F)..TH198310-198711

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29015iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198608

main76625-29015iAT151,CT150,ST150..SED..GEN198508-198711

W/PP BUMPER

main76625-29025iAT151,CT150..EUR198310-198711

main76625-29065iAT151,ST15#..GEN,SAA198508-198711

W/*UB

main76625-29075iAT151,CT150,ST150..EUR198508-198711

W/*UB

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29015iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198608

main76626-29015iAT151,CT150,ST150..SED..GEN198508-198711

W/PP BUMPER

main76626-29025iAT151,CT150..EUR198310-198711

main76626-29065iAT151,ST15#..GEN,SAA198508-198711

W/*UB

main76626-29075iAT151,CT150,ST150..EUR198508-198711

W/*UB

9015960008

main90159-60008

9015960304

main90159-60304

9018906048

main90189-06048

9020906061

main90209-06061

8 parts on this diagram · 1 diagram in section
