BATTERY CARRIER

74411CARRIER, BATTERY

main74431-14020iAT151..EUG;AT151..GEN,SAA;ST15#..EUR,GEN,SAA198310-198711

N40L

main74431-14030iAT151,CT150,ST15#..EUR,GEN198310-198711

N50ZL,55D23L,NX110-5L

sub74431-52040

main74431-14040iCT150..EUG198310-198711

NX120-7L

main74431-14050iAT151,ST15#..GEN,SAA,TH198310-198711

NS40ZAL

74413BOLT, BATTERY CLAMP

main74451-16010iAT151,CT150,ST15#198310-198711

74481CLAMP, BATTERY HOLD DOWN

main74404-20110iAT151,ST15#..GEN,SAA,TH198310-198711

NS40ZAL

main74404-20120iAT151,CT150,ST15#..EUR,GEN198310-198711

N50ZL,55D23L,NX110-5L,NX120-7L

main74404-20130iAT151..EUG;AT151..GEN,SAA;ST15#..EUR,GEN,SAA198310-198711

N40L

9017906097

main90179-06097

9166640616

main91666-40616

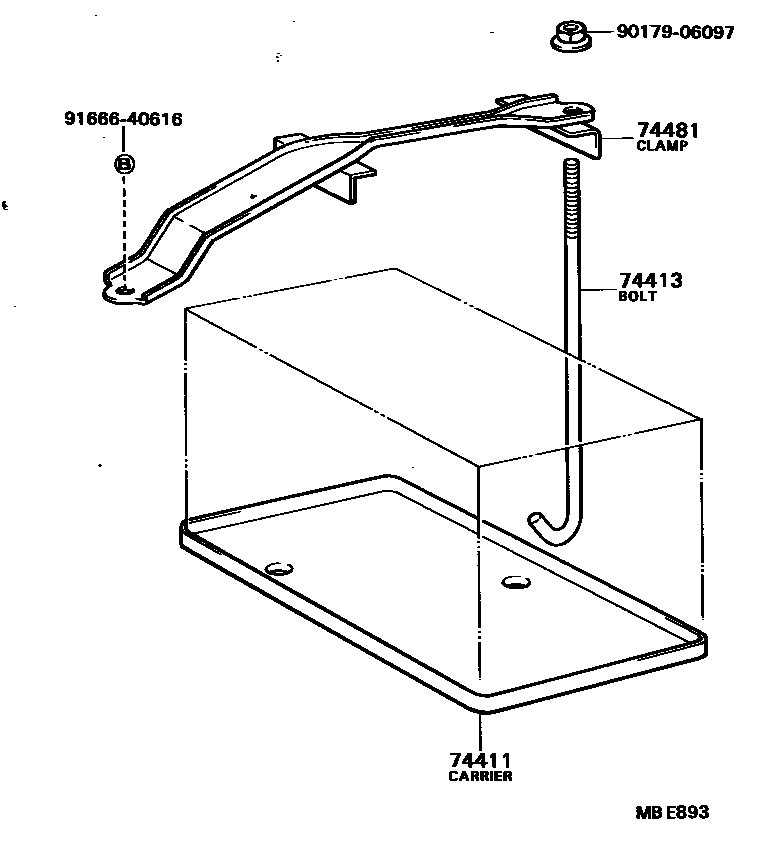

5 parts on this diagram · 1 diagram in section
