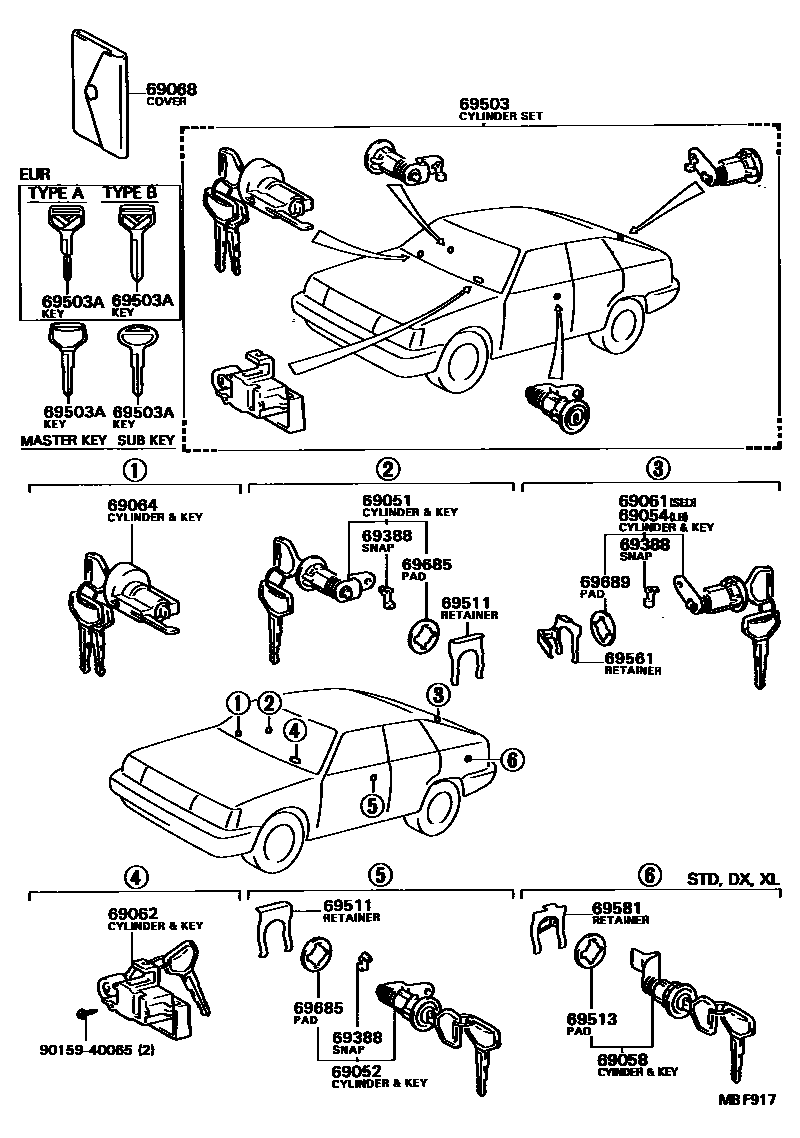

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12170iAT151,CT150,ST150..EUR198310-198711

sub69051-60090¥3,990

main69051-20120iAT151,CT150,ST15#..GEN,SAA,TH¥3,610198310-198605

sub69051-90K02¥3,540

main69051-20121iAT151,CT150,ST15#..GEN,SAA,TH¥3,600198605-198711

sub69051-10081¥3,580

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12170iAT151,CT150,ST150..EUR198310-198711

sub69052-60090¥3,990

main69052-20110iAT151,CT150,ST15#..GEN,SAA,TH¥3,610198310-198605

sub69052-90K02¥3,540

main69052-20111iAT151,CT150,ST15#..GEN,SAA,TH¥3,600198605-198711

sub69052-10081¥3,580

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-20100iAT151,ST15#..LB..(GEN,SAA,TH)¥3,610198310-198605

sub69055-20101¥3,610

main69055-20101iAT151,ST15#..LB..(GEN,SAA,TH)¥3,610198605-198711

sub69055-20230¥3,780

main69055-20110iAT151,CT150..LB..EUR¥6,700198310-198508

main69055-20230iAT151,CT150,ST150..LB..EUR¥3,780198508-198711

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16040iAT151,CT150..DX¥3,610198310-198711

main69058-20040iAT151..4F..TH¥3,910198310-198711

sub69058-20041¥3,920

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20130iAT151,CT150..SED..EUR¥6,700198310-198508

main69055-20140iAT151,CT150,ST150..SED..XL..(GEN,SAA)¥3,760198508-198605

W/O OPENER

sub69055-20141¥3,780

main69055-20140iAT151,CT150,ST150..SED..(GEN,SAA)¥3,760198310-198508

sub69055-20141¥3,780

main69055-20141iAT151,ST150..SED..(3FC,5F)..TH¥3,780198605-198711

W/O OPENER

sub69055-20260¥3,780

main69055-20240iAT151,CT150,ST150..SED..EUR¥3,780198508-198711

W/OPENER

main69055-20250iAT151,CT150,ST15#..SED..(GEN,SAA)¥3,760198508-198605

W/OPENER

sub69055-20251¥3,780

main69055-20251iAT151,CT150,ST15#..SED..(GEN,SAA)¥3,780198605-198711

W/OPENER

sub69055-20240¥3,780

main69055-20260iAT151,CT150..SED..DX¥3,780198508-198711

W/O OPENER

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20050-02iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA,TH)198310-198605

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-20051¥5,300

sub69056-20050¥5,900

main69056-20050-03iAT151,CT150,ST15#..(GL,XL)..(GEN,SAA,TH)198310-198605

SHADOW GRAY,GRAY,TRIM1#

sub69056-20051¥5,300

sub69056-20050¥5,900

main69056-20050-04iAT151,CT150,ST150..(GL,XL)..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

sub69056-20051¥5,300

sub69056-20050¥5,900

main69056-20050-14iAT151,CT150,ST15#..GEN,SAA,TH198508-198605

BLUE,BLUE,TRIM8#

sub69056-20051¥5,300

sub69056-20050¥5,900

main69056-20051-02iAT151,CT150,ST15#..GEN,SAA,TH198605-198711

DEEP MAROON,MAROON,TRIM3#

sub69056-20051¥5,300

main69056-20051-03iAT151,CT150,ST15#..GEN,SAA,TH198605-198711

SHADOW GRAY,GRAY,TRIM1#

sub69056-20051¥5,300

main69056-20051-04iAT151,CT150,ST15#..GEN,SAA,TH198605-198711

BLUE,BLUE,TRIM8#

sub69056-20051¥5,300

main69056-32020-02iAT151,CT150,ST150..EUR198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-32031¥5,400

main69056-32020-04iAT151,CT150..EUR198310-198508

BLUE,BLUE,TRIM8#

sub69056-32031¥5,400

main69056-32020-13iAT151,CT150,ST150..EUR198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub69056-32031¥5,400

main69056-32020-14iAT151,CT150,ST150..EUR198508-198711

BLUE,BLUE,TRIM8#

sub69056-32031¥5,400

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20040iAT151,CT150,ST15#..GEN,SAA,TH¥6,800198310-198605

sub69057-20041¥6,700

main69057-20041iAT151,CT150,ST15#..GEN,SAA,TH¥6,700198605-198703

sub69057-95J02¥5,700

main69057-20042iAT151,ST150..LB..XL¥5,700198703-198711

sub69057-20160¥5,700

main69057-20160iAT151,CT150,ST150..EUR¥5,700198703-198711

main69057-20170iAT151,CT150,ST15#..GEN,SAA¥6,700198703-198711

sub69057-20160¥5,700

main69057-95J02iAT151,CT150,ST150..EUR¥5,700198310-198703

69068COVER SUB-ASSY, KEY

main69555-20010iAT151,CT150,ST15#¥780198310-198711

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iAT151,CT150,ST150¥280198310-198711

BACK OR LUGGAGE DOOR

main69759-20080iAT151,CT150,ST15#¥280198310-198711

RH

main69759-20090iAT151,CT150,ST15#..SED..(EUR,GEN,SAA)¥280198508-198711

LUGGAGE DOOR,W/CANCEL

main69759-20090iAT151,CT150,ST15#¥280198310-198711

LH

69503CYLINDER SET, LOCK

main69005-20280-02iAT151,ST15#..LB..(GEN,SAA,TH)198310-198605

W/OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20281¥21,900

main69005-20280-03iAT151,ST15#..LB..(GEN,SAA,TH)198310-198605

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20281¥21,900

main69005-20280-04iAT151,ST150..LB..(GEN,SAA)198310-198508

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20281¥21,900

main69005-20280-14iAT151,ST15#..LB..(GEN,SAA,TH)198508-198605

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20281¥21,900

main69005-20281-02iAT151,ST15#..LB..(GEN,SAA,TH)198605-198703

W/OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20281¥21,900

main69005-20281-03iAT151,ST15#..LB..(GEN,SAA,TH)198605-198703

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20281¥21,900

main69005-20281-04iAT151,ST15#..LB..(GEN,SAA,TH)198605-198703

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20281¥21,900

main69005-20290-02iAT151,CT150,ST150..SED..(GL,XL)..(GEN,SAA)198310-198508

W/OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20291¥21,000

main69005-20290-02iAT151,ST150..SED..(3FC,5F)..TH198508-198605

W/O OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20291¥21,000

main69005-20290-03iAT151,CT150,ST150..SED..(GL,XL)..(GEN,SAA)198310-198508

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20291¥21,000

main69005-20290-03iAT151,ST150..SED..(3FC,5F)..TH198508-198605

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20291¥21,000

main69005-20290-04iAT151,CT150,ST150..SED..(GL,XL)..(GEN,SAA)198310-198508

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20291¥21,000

main69005-20290-14iAT151,ST150..SED..(3FC,5F)..TH198508-198605

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20291¥21,000

main69005-20291-02iAT151,ST150..SED..(3FC,5F)..TH198605-198608

W/O OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20291¥21,000

main69005-20291-03iAT151,ST150..SED..(3FC,5F)..TH198605-198608

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20291¥21,000

main69005-20291-04iAT151,ST150..SED..(3FC,5F)..TH198605-198608

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20291¥21,000

main69005-20300-02iAT151,CT150..SED..DX198310-198508

W/O OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20300¥25,100

main69005-20300-03iAT151,CT150..SED..DX198310-198508

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20300¥25,100

main69005-20300-04iAT151,CT150..SED..DX198310-198508

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20300¥25,100

main69005-20310-02iAT151..4F..TH198508-198605

W/O OPENER,MAROON,RED/MAROON,TRIM3#

sub69005-20311¥24,100

main69005-20310-02iAT151,CT150,ST150..SED..XL..(GEN,SAA)198310-198605

W/O OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20311¥24,100

main69005-20310-03iAT151,CT150,ST150..SED..XL..(GEN,SAA)198310-198605

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20311¥24,100

main69005-20310-03iAT151..4F..TH198508-198605

W/O OPENER,GRAY,GRAY,TRIM1#

sub69005-20311¥24,100

main69005-20310-04iAT151,CT150,ST150..SED..XL198310-198508

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20311¥24,100

main69005-20310-14iAT151..4F..TH198508-198605

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20311¥24,100

main69005-20311-02iAT151..4F..TH198605-198608

W/O OPENER,MAROON,MAROON,TRIM3#

sub69005-20311¥24,100

main69005-20311-02iAT151,CT150,ST150..SED..XL..(GEN,SAA)198605-198703

W/O OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20311¥24,100

main69005-20311-03iAT151,CT150,ST150..SED..XL..(GEN,SAA)198605-198703

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20311¥24,100

main69005-20311-03iAT151..4F..TH198605-198608

W/O OPENER,GRAY,GRAY,TRIM1#

sub69005-20311¥24,100

main69005-20311-04iAT151..4F..TH198605-198703

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20311¥24,100

main69005-20320iAT151..STD¥20,000198310-198508

main69005-20330-02iAT151,CT150..SED..EUR198310-198508

W/OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20330¥22,100

main69005-20330-03iAT151,CT150..SED..EUR198310-198508

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20330¥22,100

main69005-20330-04iAT151,CT150..SED..EUR198310-198508

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20330¥22,100

main69005-20350-02iAT151,CT150..LB..DX198310-198508

W/O OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20350¥25,100

main69005-20350-03iAT151,CT150..LB..DX198310-198508

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20350¥25,100

main69005-20350-04iAT151,CT150..LB..DX198310-198508

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20350¥25,100

main69005-20360-02iAT151,ST150..LB..XL198310-198605

W/O OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20361¥26,400

main69005-20360-03iAT151,ST150..LB..XL198310-198605

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20361¥26,400

main69005-20360-04iAT151,ST150..LB..XL198310-198508

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20361¥26,400

main69005-20360-14iAT151,ST150..LB..XL198508-198605

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20361¥26,400

main69005-20361-02iAT151,ST150..LB..XL198605-198703

W/O OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20361¥26,400

main69005-20361-03iAT151,ST150..LB..XL198605-198703

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20361¥26,400

main69005-20361-04iAT151,ST150..LB..XL198605-198703

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20361¥26,400

main69005-20362-02iAT151,ST150..LB..XL198703-198711

W/O OPENER,DEEP MAROON,MAROON,TRIM3#

main69005-20362-03iAT151,ST150..LB..XL198703-198711

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

main69005-20362-04iAT151,ST150..LB..XL198703-198711

W/O OPENER,BLUE,BLUE,TRIM8#

main69005-20370-02iAT151,CT150..LB..EUR198310-198508

W/OPENER,DEEP MAROON,RED/MAROON,TRIM3#

sub69005-20370¥22,100

main69005-20370-03iAT151,CT150..LB..EUR198310-198508

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20370¥22,100

main69005-20370-04iAT151,CT150..LB..EUR198310-198508

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20370¥22,100

main69005-20440-02iAT151,CT150,ST150..SED..EUR198508-198703

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20440¥17,000

main69005-20440-03iAT151,CT150,ST150..SED..EUR198508-198703

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20440¥17,000

main69005-20440-04iAT151,CT150,ST150..SED..EUR198508-198703

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20440¥17,000

main69005-20441-02iAT151,CT150,ST150..SED..EUR198703-198711

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20441¥17,000

main69005-20441-03iAT151,CT150,ST150..SED..EUR198703-198711

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20441¥17,000

main69005-20441-04iAT151,CT150,ST150..SED..EUR198703-198711

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20441¥17,000

main69005-20490-02iAT151,CT150,ST150..LB..EUR198508-198703

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20490¥17,000

main69005-20490-03iAT151,CT150,ST150..LB..EUR198508-198703

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20490¥17,000

main69005-20490-04iAT151,CT150,ST150..LB..EUR198508-198703

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20490¥17,000

main69005-20491-02iAT151,CT150,ST150..LB..EUR198703-198711

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20491¥17,000

main69005-20491-03iAT151,CT150,ST150..LB..EUR198703-198711

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20491¥17,000

main69005-20491-04iAT151,CT150,ST150..LB..EUR198703-198711

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20491¥17,000

main69005-20500-02iAT151,CT150..LB..DX198508-198703

W/O OPENER,MAROON,MAROON,TRIM3#

sub69005-20500¥18,300

main69005-20500-03iAT151,CT150..LB..DX198508-198703

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20500¥18,300

main69005-20500-04iAT151,CT150..LB..DX198508-198703

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20500¥18,300

main69005-20501-02iAT151,CT150..LB..DX198703-198711

W/O OPENER,MAROON,MAROON,TRIM3#

sub69005-20501¥18,300

main69005-20501-03iAT151,CT150..LB..DX198703-198711

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20501¥18,300

main69005-20501-04iAT151,CT150..LB..DX198703-198711

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20501¥18,300

main69005-20510-02iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198605

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20511¥18,300

main69005-20510-03iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198605

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20511¥18,300

main69005-20510-04iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198605

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20511¥18,300

main69005-20511-02iAT151,CT150,ST15#..SED..(GEN,SAA)198605-198703

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20511¥18,300

main69005-20511-03iAT151,CT150,ST15#..SED..(GEN,SAA)198605-198703

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20511¥18,300

main69005-20511-04iAT151,CT150,ST15#..SED..(GEN,SAA)198605-198703

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20511¥18,300

main69005-20520-02iAT151,CT150..SED..DX198508-198703

W/O OPENER,MAROON,MAROON,TRIM3#

sub69005-20520¥17,000

main69005-20520-03iAT151,CT150..SED..DX198508-198703

W/O OPENER,GRAY,GRAY,TRIM1#

sub69005-20520¥17,000

main69005-20520-04iAT151,CT150..SED..DX198508-198703

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20520¥17,000

main69005-20521-02iAT151,CT150..SED..DX198703-198711

W/O OPENER,MAROON,MAROON,TRIM3#

sub69005-20521¥17,000

main69005-20521-03iAT151,CT150..SED..DX198703-198711

W/O OPENER,GRAY,GRAY,TRIM1#

sub69005-20521¥17,000

main69005-20521-04iAT151,CT150..SED..DX198703-198711

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20521¥17,000

main69005-20530-02iAT151,ST15#..LB..(GEN,SAA)198703-198711

W/OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20530

main69005-20530-03iAT151,ST15#..LB..(GEN,SAA)198703-198711

W/OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20530

main69005-20530-04iAT151,ST15#..LB..(GEN,SAA)198703-198711

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20530

main69005-20540-02iAT151,CT150,ST150..SED..XL198703-198711

W/O OPENER,DEEP MAROON,MAROON,TRIM3#

sub69005-20540

main69005-20540-03iAT151,CT150,ST150..SED..XL198703-198711

W/O OPENER,SHADOW GRAY,GRAY,TRIM1#

sub69005-20540

main69005-20540-04iAT151,CT150,ST150..SED..XL198703-198711

W/O OPENER,BLUE,BLUE,TRIM8#

sub69005-20540

main69005-20550-02iAT151,CT150,ST15#..SED..(GEN,SAA)198703-198711

W/OPENER,MAROON,MAROON,TRIM3#

sub69005-20550¥19,700

main69005-20550-03iAT151,CT150,ST15#..SED..(GEN,SAA)198703-198711

W/OPENER,GRAY,GRAY,TRIM1#

sub69005-20550¥19,700

main69005-20550-04iAT151,CT150,ST15#..SED..(GEN,SAA)198703-198711

W/OPENER,BLUE,BLUE,TRIM8#

sub69005-20550¥19,700

69503AKEY, BLANK

main90999-00066iAT151,CT150,ST15#..GEN,SAA,TH¥1,550198310-198711

MASTER KEY,MASTER

sub90999-00085¥1,550

main90999-00068iAT151,CT150,ST15#..GEN,SAA,TH¥1,550198310-198711

SUB KEY,SUB

sub90999-00094¥1,550

main90999-00084iAT151,CT150,ST150..EUR¥2,070198310-198711

MASTER KEY,W(*68),MASTER,TYPE B

sub90999-00214¥2,570

main90999-00088iAT151,CT150,ST150..EUR¥2,060198310-198711

SUB KEY,W(*68),SUB,TYPE B

main90999-00092iAT151,CT150,ST150..EUR¥2,060198310-198711

MSTER KEY,W(*69),MASTER,TYPE A

sub90999-00084¥2,070

main90999-00093iAT151,CT150,ST150..EUR¥2,060198310-198711

SUB KEY,W(*69),SUB,TYPE A

sub90999-00088¥2,060

main90999-00104iAT151,CT150,ST15#..GEN,SAA,TH¥2,060198605-198711

MASTER KEY,W(*68),MASTER,W/PROTECTOR

sub90999-00212¥2,060

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAT151,CT150,ST15#¥160198310-198711

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iAT151..4F..TH¥120198310-198711

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69501-16010iAT151,CT150,ST15#..LB¥400198310-198711

main69561-12150iAT151..SED..LHD..4FC;AT151,CT150,ST150..SED..(3FC,4F,5F)¥310198310-198405

main69561-20050iAT151,CT150,ST15#..SED¥310198405-198711

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAT151..4F..TH¥160198310-198711

69685PAD, LOCK CYLINDER

main69513-32010iAT151,CT150,ST15#¥120198310-198711

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69563-32010iAT151,CT150,ST15#¥310198310-198711

9015940065

main90159-40065¥110

18 parts on this diagram · 1 diagram in section
