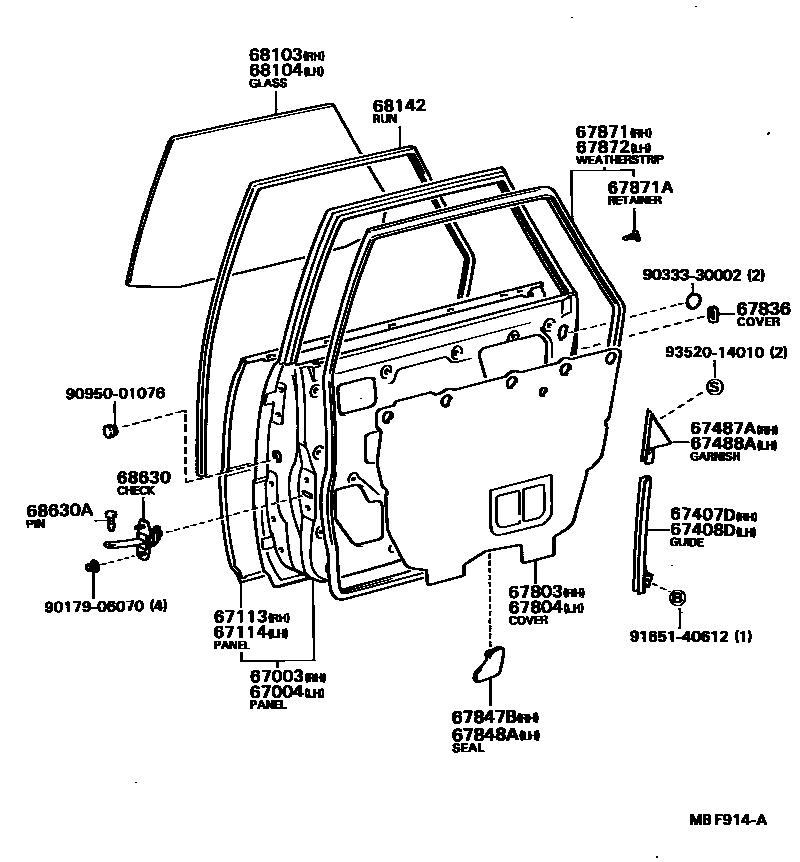

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20330iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN)198310-198405

W/*WPM

sub67003-20340

main67003-20340iAT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN)198310-198711

main67003-20360iAT151,ST150..SAA198310-198711

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20330iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)..(EUR,GEN)198310-198405

W/*WPM

sub67004-20340

main67004-20340iAT151,CT150,ST150..(DX,STD,XL)..(EUR,GEN)198310-198711

main67004-20360iAT151,ST150..SAA198310-198711

67113PANEL, REAR DOOR, OUTER RH

main67113-20160iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)198310-198405

W/*WPM

sub67113-20170

main67113-20170iAT151,CT150,ST150..DX,STD,XL198310-198711

67114PANEL, REAR DOOR, OUTER LH

main67114-20170iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..(3FC,4F,5F)..(DX,GL,XL)198310-198405

W/*WPM

sub67114-20180

main67114-20180iAT151,CT150,ST150..DX,STD,XL198310-198711

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-20100iAT151,CT150,ST15#198310-198711

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-20090iAT151,CT150,ST15#198310-198711

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-20010iAT151,CT150,ST15#198310-198711

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-20020iAT151,CT150,ST15#198310-198711

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-20130iAT151,CT150,ST150198310-198711

main67841-20160iAT151,ST150..SAA198312-198711

W/INDOOR DUST PROOFING

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-20160iAT151,CT150,ST15#..GEN198312-198711

W/INDOOR DUST PROOFING

main67842-20040iAT151,CT150,ST150198310-198711

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iAT151,CT150,ST150..GEN,SAA198310-198508

main67836-20060iAT151,CT150,ST15#..GEN,SAA198508-198711

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-20020iAT151,CT150,ST15#..GEN,SAA198310-198711

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-20020iAT151,CT150,ST15#..GEN,SAA198310-198711

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20150iAT151,CT150,ST15#198310-198711

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iAT151,CT150,ST15#198310-198711

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20150iAT151,CT150,ST15#198310-198711

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-20260iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

*TT,T=3.5

main68113-20280iST150..SED..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC,*TEM,T=3.5

sub68113-20260

main68113-20280iAT151..STD198310-198508

*TEM,T=3.5

sub68113-20260

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-20180iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

*TT,T=3.5

main68114-20200iAT151..STD198310-198508

*TEM,T=3.5

sub68114-20180

main68114-20200iST150..SED..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC,*TEM,T=3.5

sub68114-20180

68142RUN, REAR DOOR GLASS

main68142-20060iAT151,CT150,ST15#198310-198511

sub68142-20061

main68142-20061iAT151,CT150,ST15#198511-198711

68630CHECK ASSY, REAR DOOR

main68630-20030iAT151,CT150,ST15#198310-198711

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iAT151,CT150,ST150198407-198507

sub68617-90A00

main68617-22010iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198407

sub68617-12010

main68617-90A00iAT151,CT150,ST15#198507-198711

sub68617-90A01

9017906070

main90179-06070

9033330002

main90333-30002

9095001076

main90950-01076

9165140612

main91651-40612

9352014010

main93520-14010

26 parts on this diagram · 3 diagrams in section
