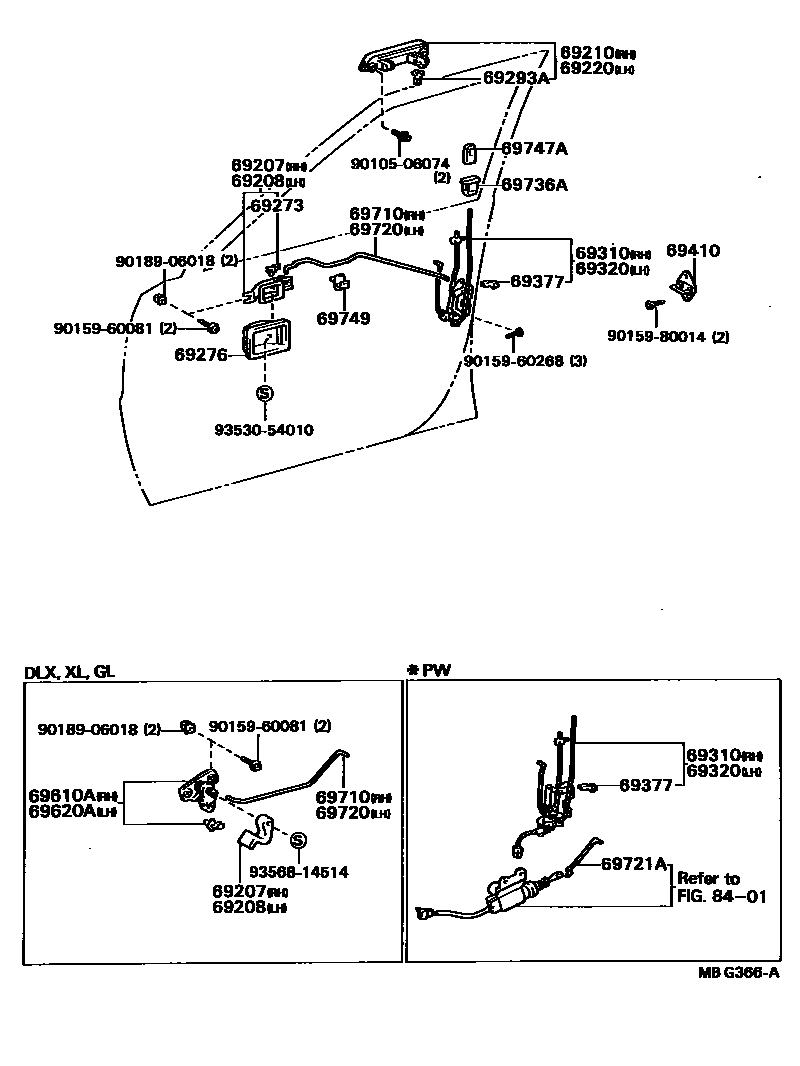

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-02iAT151..STD198406-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub69205-12070¥2,170

main69205-12070-03iAT151..STD198406-198508

SHADOW GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-12070-04iAT151..STD198406-198508

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69205-20030-02iAT151..STD198310-198406

DEEP MAROON,RED/MAROON,TRIM3#

sub69205-12070¥2,170

main69205-20030-03iAT151..STD198310-198406

SHADOW GRAY,GRAY,TRIM1#

sub69205-12070¥2,170

main69205-20030-04iAT151..STD198310-198406

BLUE,BLUE,TRIM8#

sub69205-12070¥2,170

main69271-20060-02iAT151,CT150,ST150..DX,GL,XL198310-198608

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

main69271-20060-03iAT151,CT150,ST150..DX,GL,XL198310-198608

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

main69271-20060-04iAT151,CT150,ST150..DX,GL,XL198310-198508

W/O *PW,BLUE,BLUE,TRIM8#

main69271-20060-14iAT151,ST150..TH198508-198608

W/O *PW,BLUE,BLUE,TRIM8#

main69271-20070-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main69271-20070-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main69271-20070-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

main69271-20071-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

main69271-20071-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

main69271-20071-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

main69271-20100-02iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,MAROON,MAROON,TRIM3#

main69271-20100-03iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,GRAY,GRAY,TRIM1#

main69271-20100-04iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,BLUE,BLUE,TRIM8#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-02iAT151..STD198406-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-03iAT151..STD198406-198508

SHADOW GRAY,GRAY,TRIM1#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-12070-04iAT151..STD198406-198508

BLUE,BLUE,TRIM8#

sub69206-16040¥1,760

sub69206-12070¥2,170

main69206-20030-02iAT151..STD198310-198406

DEEP MAROON,RED/MAROON,TRIM3#

sub69206-12070¥2,170

main69206-20030-03iAT151..STD198310-198406

SHADOW GRAY,GRAY,TRIM1#

sub69206-12070¥2,170

main69206-20030-04iAT151..STD198310-198406

BLUE,BLUE,TRIM8#

sub69206-12070¥2,170

main69272-20030-02iAT151,CT150,ST150..DX,GL,XL198310-198608

W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

main69272-20030-03iAT151,ST150..TH198310-198608

W/O *PW,SHADOW GRAY,GRAY,TRIM1#

main69272-20030-04iAT151,CT150,ST150..DX,GL,XL198310-198508

W/O *PW,BLUE,BLUE,TRIM8#

main69272-20030-14iAT151,ST150..TH198508-198608

W/O *PW,BLUE,BLUE,TRIM8#

main69272-20040-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main69272-20040-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main69272-20040-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

main69272-20041-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

main69272-20041-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

main69272-20041-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

main69272-20070-02iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,MAROON,MAROON,TRIM3#

main69272-20070-03iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,GRAY,GRAY,TRIM1#

main69272-20070-04iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

W/O *PW,BLUE,BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20090iAT151,CT150,ST15#¥2,910198310-198711

BLACK

main69210-20100iAT151,CT150,ST15#..SED..(GEN,SAA)¥2,840198508-198711

PLATING

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20090iAT151,CT150,ST15#¥2,910198310-198711

BLACK

main69220-20100iAT151,CT150,ST15#..SED..(GEN,SAA)¥2,840198508-198711

PLATING

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iAT151,CT150,ST15#¥240198310-198711

RH

main69759-20070iAT151,CT150,ST15#¥140198310-198711

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-32020¥640

sub69277-89104¥670

main69277-32020-33iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub69277-32020¥640

sub69277-89104¥670

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16050iAT151,CT150,ST15#..SED..(GEN,SAA)¥260198508-198711

RH,PLATING

main69293-16050iAT151,CT150,ST15#¥260198310-198711

LH,BLACK

main69293-16060iAT151,CT150,ST15#..SED..(GEN,SAA)¥260198508-198711

LH,PLATING

main69293-16060iAT151,CT150,ST15#¥260198310-198711

RH,BLACK

69310LOCK ASSY, FRONT DOOR, RH

main69310-20210iAT151,ST150..SAA198310-198711

W/O *PW

main69310-20220iST150..GL..SAA198310-198711

W/*PW

main69310-20230iST151¥7,600198508-198711

NEW ZEALAND SPEC

sub69310-20370¥7,600

main69310-20230iAT151,ST150..RHD..GL..GEN¥7,600198310-198508

W/*PW

sub69310-20370¥7,600

main69310-20240iAT151,ST150..LHD..GL..GEN¥7,600198310-198711

W/*PW

main69310-20250iAT151,CT150,ST15#..EUR,GEN,TH¥6,800198310-198711

W/O *PW

main69310-20370iAT151,ST15#..RHD..GL..GEN¥7,600198508-198711

W/*PW

69320LOCK ASSY, FRONT DOOR, LH

main69320-20190iST151¥7,600198508-198711

NEW ZEALAND SPEC

main69320-20190iAT151,ST150..RHD..GL..GEN¥7,600198310-198508

W/*PW

main69320-20220iAT151,ST150..SAA¥6,800198310-198711

W/O *PW

main69320-20230iST150..GL..SAA¥11,500198310-198508

W/*PW

main69320-20240iAT151,ST150..LHD..GL..GEN¥7,400198310-198508

W/*PW

sub69320-20370¥7,600

main69320-20250iAT151,CT150,ST15#..EUR,GEN,TH¥8,900198310-198711

W/O *PW

main69320-20370iAT151,ST150..LHD..GL..GEN¥7,600198508-198711

W/*PW

main69320-20380iST150..GL..SAA¥7,600198508-198711

W/*PW

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20040iAT151,CT150,ST15#¥220198310-198711

YELLOW

main69759-20050iAT151,CT150,ST15#¥160198310-198711

BROWN

main69759-20100iAT151,CT150,ST15#¥250198310-198711

RH,RED

main69759-20110iAT151,CT150,ST15#¥250198310-198711

LH,BLACK

main69759-24010iAT151,CT150,ST15#¥180198310-198711

RH,NATURAL

main69759-24020iAT151,CT150,ST15#¥180198310-198711

LH,NATURAL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAT151,CT150,ST15#¥710198310-198711

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-20070iAT151,CT150,ST15#..DX,GL,XL¥2,520198310-198711

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-20040iAT151,CT150,ST15#..DX,GL,XL¥1,680198310-198711

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-20050iAT151,CT150,ST15#..DX,GL,XL¥660198310-198711

main69711-20060iAT151..STD¥640198310-198508

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-20050iAT151,CT150,ST15#..DX,GL,XL¥660198310-198711

main69712-20060iAT151..STD¥640198310-198508

69721ALINK, FRONT DOOR LOCK ACTUATOR

main69721-20020iAT151,ST15#..GL..(GEN,SAA)¥320198310-198711

main69721-20020iST151¥320198508-198711

NEW ZEALAND SPEC

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iAT151,CT150,ST15#¥450198508-198711

main69736-22021iAT151,CT150,ST150..DX,GL,XL¥500198310-198508

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-12iAT151,CT150,ST15#198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-23iAT151,CT150,ST15#198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub69741-32010¥340

sub69741-90K00¥360

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iAT151,CT150,ST15#¥180198310-198711

8401

9010506074

main90105-06074¥120

9015960081

main90159-60081¥70

9015960268

main90159-60268¥130

9015980014

main90159-80014¥120

9018906018

main90189-06018¥80

9353054010

main93530-54010¥70

9356814514

main93568-14514¥120

27 parts on this diagram · 1 diagram in section
